BD-Power Xtruded Double-Stacked Auxiliary Trans Cooler Kit 1030606-DS

Quick firm shifting Automatic transmissions cant be beat at the race track. But, the HOT transmission oil has to be COOLED to stay on track. Hot oil temperatures must be kept under control! Heating of transmission oil is caused from torque multiplying stators redirecting and shearing the oil, heat transfer when cooling down of the clutches as they are on the edge of slipping on the steels, and, end thrusting loads on the bushings transfer heat into the case.

 BDs double stacked their proven Xtruded Trans Oil cores to deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system 136% better temperature drop than BDs standard single core kit.

 Using the same Micro Extruded bar technology as is in our air-to-air Charge Air Coolers, the 200 Micro Extruded passages in each cooler provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

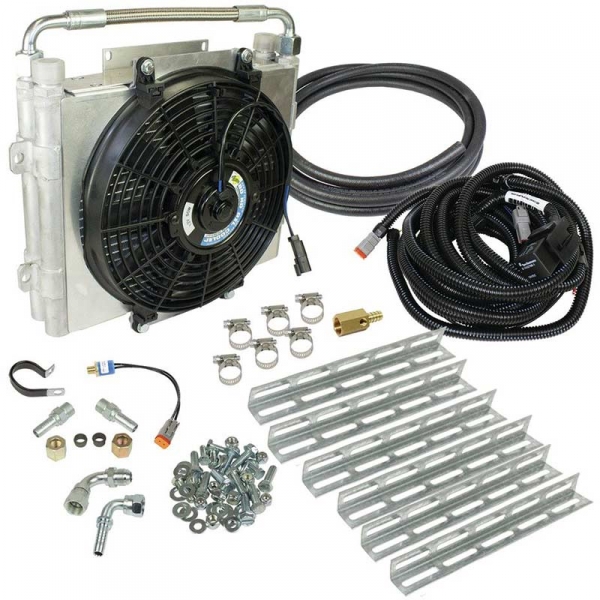

Xtruded Double Stacked Transmission Oil Cooler packages are available to accommodate 1/2 and 5/8 transmission cooler lines and come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation &mdash no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements.

Features:

• "Double Stacked" For Maximum Cooling
• Available For 1/2" & 5/8" Applications
• Over 350% Temperature Drop Over Factory System
• Thermostatically Controlled 80-Watt, 10-Inch, 800 CFM Electric Fan
• 1-Year Warranty


Applications:
1994-2016 Dodge 47RH, 47RE,48RE,68RFE - 1/2" Fitting Tube Size
2001-2016 GM/Duramax Allison 1000 - 5/8" Fitting Tube Size

Note: This Auxiliary cooler is designed as an add-on. It is not a replacement for your factory cooler.
