Part #: BD1300601-DS

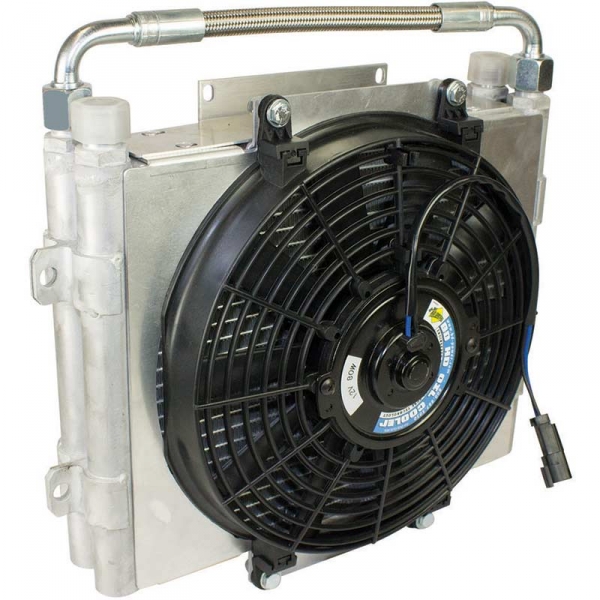

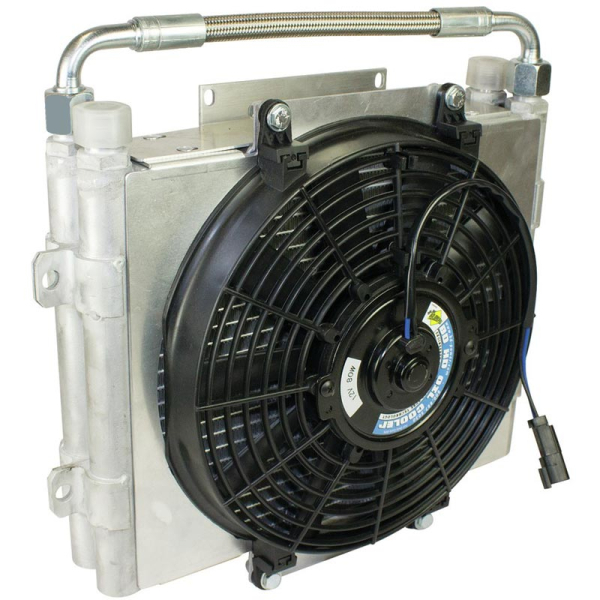

BD-Power Xtruded Double Stacked Transmission Cooler 1300601-DS

Universal - Many Applications
Part #: BD1300601-DS
$ $580.75
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Low your transmission temperatures with the BD-Power Xtruded Double Stacked Transmission Cooler 1300601-DS. Quick firm shifting Automatic transmissions cant be beat at the race track. But, the HOT transmission oil has to be COOLED to stay on track. Hot oil temperatures must be kept under control! Heating of transmission oil is caused from torque multiplying stators redirecting and shearing the oil, heat transfer when cooling down of the clutches as they are on the edge of slipping on the steels, and, end thrusting loads on the bushings transfer heat into the case.

 BDs double stacked their proven Xtruded Trans Oil cores to deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system 136% better temperature drop than BDs standard single core kit. Using the same Micro Extruded bar technology as is in our air-to-air Charge Air Coolers, the 200 Micro Extruded passages in each cooler provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

Features:
  • "Double Stacked" For Maximum Cooling
  • Over 350% Temperature Drop Over Factory System
  • Universal Application Includes Cooler Only
  • Fittings, Brackets, Wiring & Hoses Not Included
Application Note:
This Auxiliary cooler is designed as an add-on. It is not a replacement for your factory cooler.
Cooler only. Wiring, brackets, fittings, and hoses are not included.
Additional hardware must be sourced by the end user.

Specifications

  • MFG. Number 1300601-DS
  • Manufacturer Name BD-Power
  • Shipping Weight 17.00 lb.
  • Shipping Length 17 in.
  • Shipping Width 13 in.
  • Shipping Height 7 in.
  • Fuel Type Diesel / Gas
  • UPC 019025012455
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Reviews

No Reviews Yet!

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

What are the measurements of the cooler 1300601-DS?
View Staff Answer
Answer
15.75 WIDE & 12.75 TALL
How thick is the double stacked cooler? How thick is it
View Staff Answer
Answer
The BD-Power 1300601-DS measures15.4" x 14.829 (With hose attached) x 4.5" thick (including fan).


Can this be mounted under my truck between frame in a horizontal position?
View Staff Answer
Answer

Mounting: Locate suitable location to mount transmission cooler. Choose a location where there will be adequate airflow through the cooler. If the cooler is mounted against a surface ensure there is at least 1” of clearance behind the cooler and that it is away from heat sources, rotating parts and debris.

What is the fluid capacity of this cooler?
View Staff Answer
Answer
BD Diesel states that the 1300601-DS Fluid Capacity is about 1.5-2 quarts.
