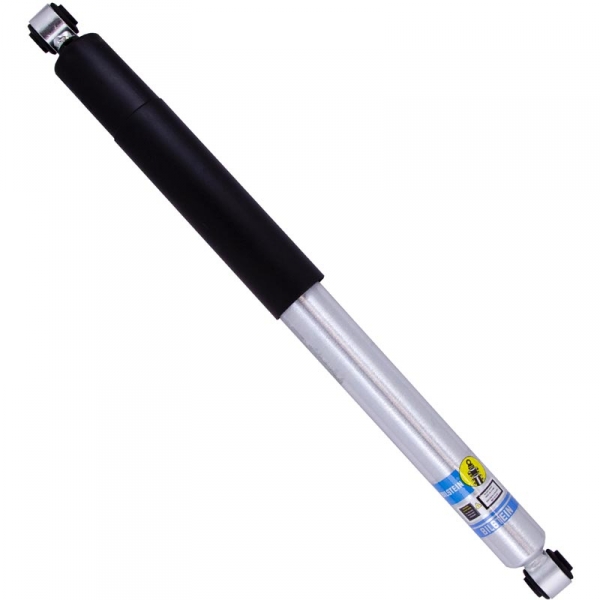

Bilstein 24-309516 B8 5100 Series Shock Absorber

Upgrade the rear shocks in your GM Silverado/Sierra 1500 with the Bilstein 24-309516 5100 Series Shock Absorber from XDP. Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Specifications:
Part Number: 24-309516
Series: 5100 Series
Position: Rear
Quantity Per Vehicle: 2 (Sold Individually)
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Spring Seat Included: No
Adjustable Damping: Non-Adjustable

Measurements:
Collapsed Length (IN): 17.40
Extended Length (IN): 27.61
Collapsed Length (MM): 442.0
Extended Length (MM): 701.2

Manufacturer Warranty*:
Limited Lifetime

Note: For Rear Lifted Height: 0-1" on Trail Boss/AT4 or 2-3" on others
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
