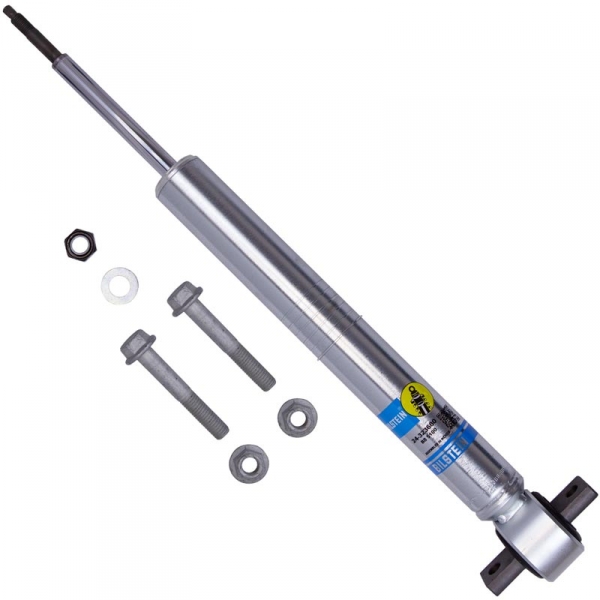

Bilstein 24-323680 B8 5100 Series Shock Absorber (Ride Height Adjustable)

Vehicle Fitment:
2021-2023 Ford F-150 4WD Lifted 0-2.5" (Without Continuously Controlled Damping) | See full application list below
Part #: BL24-323680
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Scroll to View More


Install the Bilstein 24-323680 5100 Series Shock Absorber from XDP and enhance the handling of your Ford F-150. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Part Number: 24-323680
Series: 5100 Series
Position: Front
Quantity Per Vehicle: 2 (Sold Individually)
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Spring Seat Included: No - Reuse OEM
Adjustable Damping: Non-Adjustable

Collapsed Length (IN): 16.85
Extended Length (IN): 22.22
Collapsed Length (MM): 428.0
Extended Length (MM): 564.5

Note: 4WD Only; Front Lift Height: 0-2.5"; Without Continuously Controlled Damping
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.


  • MPN 24-323680
  • SKU BL24-323680
  • ID 96922
  • Manufacturer Name Bilstein
  • Shipping Weight 8.00 lb.
  • Shipping Length 27 in.
  • Shipping Width 5 in.
  • Shipping Height 5 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Lift Height 0", 1", 1.5", 2", 2.5"
  • Position Front
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal L0R0
