USD 270
Part #: BL25-287547

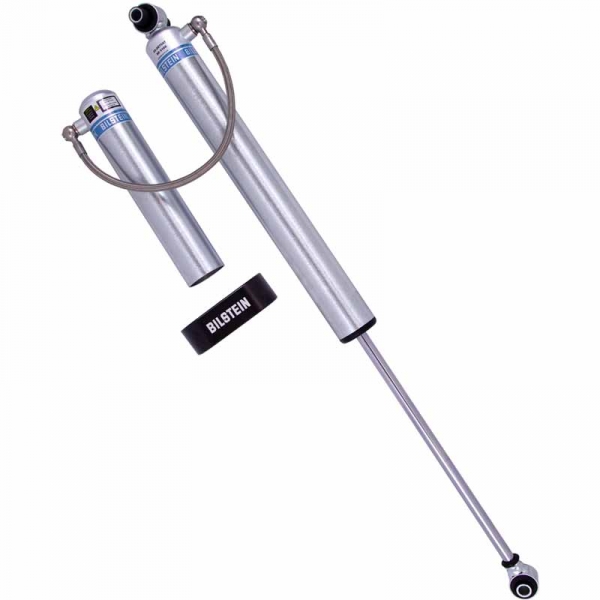

*Discontinued* Bilstein 25-287547 B8 5160 Series Shock Absorber

Vehicle Fitment:
2018-2023 Jeep Wrangler JL (Rear) Lifted 3-4.5" | See full application list below
Part #: BL25-287547
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Upgrade the suspension on your Jeep Wrangler JL with the Bilstein 25-287547 5160 Series Shock Absorber from XDP. Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360-degree swivel banjo hose fitting, providing a clean, low-profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Specifications:
Part Number: 25-287547
Series: 5160 Series
Position: Rear
Quantity Per Vehicle: 2 (Sold Individually)
Finish: Zinc Plated
Reservoir: Yes
Billet Reservoir Clamp Included: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Spring Seat Included: No
Adjustable Damping: Non-Adjustable

Measurements:
Collapsed Length (IN): 17.40
Extended Length (IN): 29.38
Collapsed Length (MM): 442.0
Extended Length (MM): 746.2

Note: For Rear Lifted Height: 3-4.5"; Requires appropriate bump stop extensions.
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2018 Jeep Wrangler
2019 Jeep Wrangler
2020 Jeep Wrangler
2021 Jeep Wrangler
2022 Jeep Wrangler

Specifications

  • MPN 25-287547
  • SKU BL25-287547
  • ID 96983
  • Manufacturer Name Bilstein
  • Shipping Weight 9.00 lb.
  • Shipping Length 27 in.
  • Shipping Width 5 in.
  • Shipping Height 5 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Lift Height 3", 3.5", 4", 4.5"
  • Position Rear
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
