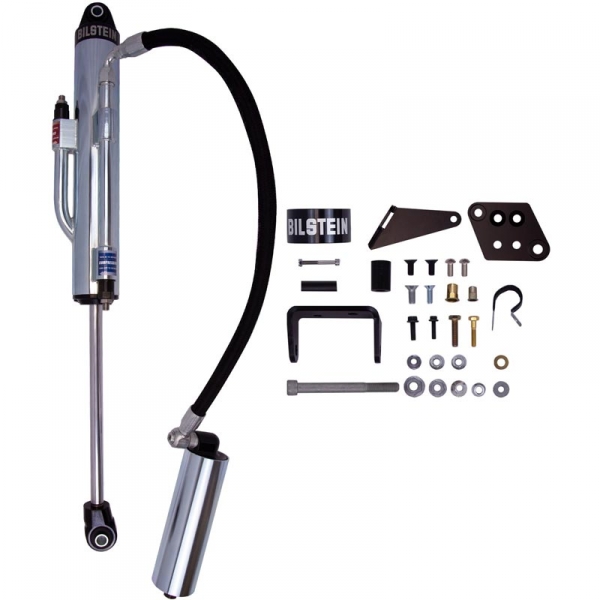

Bilstein 25-287813 B8 8100 Series Shock Absorber (Bypass)

Replace the shocks on your Jeep Wrangler JL with the Bilstein 25-287813 8100 Series Shock Absorber from XDP. Bilstein B8 8100 reservoir shock absorbers are a large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle-free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.

Specifications:
Part Number: 25-287813
Series: 8100 Series
Position: Front
Quantity Per Vehicle: 1
Finish: Zinc Plated
Reservoir: Yes
Body Design: Bypass Body (Non-Coilover)
Body Diameter: 60mm
Spring Seat Included: No
Adjustable Damping: Double Adjustable - Compression and Rebound

Measurements:
Collapsed Length (IN): 18.11
Extended Length (IN): 29.13
Collapsed Length (MM): 460.0
Extended Length (MM): 740.0

Manufacturer Warranty*:
2 Year

Note: For Front Lifted Height: 3-4.5"; Requires appropriate bump stop extensions and aftermarket driveshaft.
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
