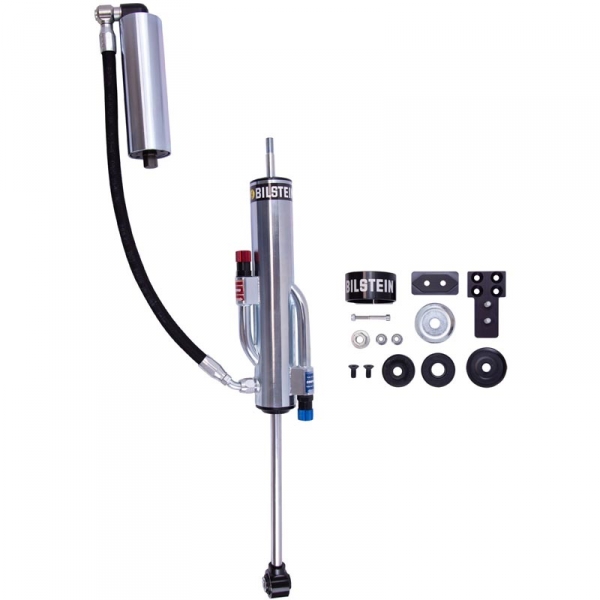

Bilstein 25-316247 B8 8100 Series Shock Absorber (Bypass)

Update the suspension on your 0-2" Lifted Ram 1500 6.4" Bed with the Bilstein 25-316247 8100 Series Shock Absorber from XDP. Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. The Bilstein B8 8100 (Bypass) features "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Specifications:
Part Number: 25-316247
Series: 8100 Series
Position: Rear
Quantity Per Vehicle: 2 (Sold Individually)
Finish: Zinc Plated
Reservoir: Yes
Body Design: Bypass Body (Non-Coilover)
Body Diameter: 60mm
Spring Seat Included: No
Adjustable Damping: Double Adjustable - Compression and Rebound

Measurements:
Collapsed Length (IN): 15.69
Extended Length (IN): 25.82
Collapsed Length (MM): 398.5
Extended Length (MM): 655.9

Note: For Rear Lifted Height: 0-2"; 6 ft. 4 in. Bed; Without Air Suspension
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
