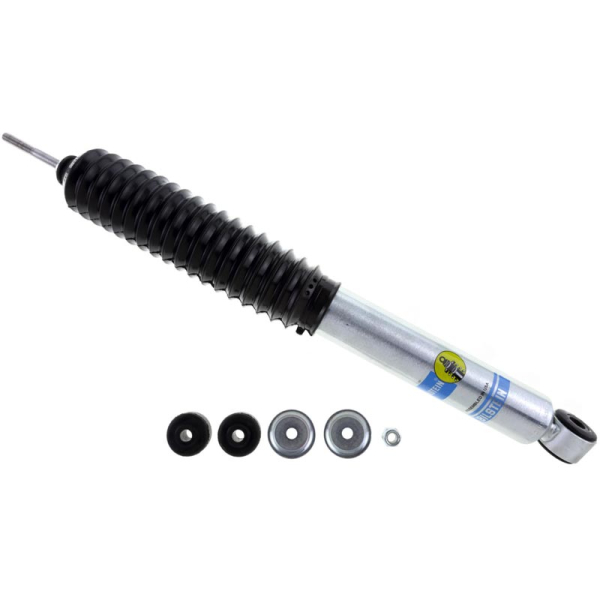

Bilstein 24-187183 B8 5100 Series Shock Absorber

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks expertly created for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. 5100 Series Shock Absorbers offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.

Part Number: 24-187183

Old Part Number: F4-BE5-E710-H1

Setting: 5100 Series

Position: Front

Front Spring Type: Torsion Bar

Rear Spring Type: Leaf

Descriptor: Excludes vehicles equipped with Quadrasteer; Front Lifted Height: 4-6"

Quantity Needed Per Vehicle: 2 (Sold Individually)

Finish: Zinc plated

Reservoir: No

Body Design: 46mm ID smooth body (Non-coilover)

Collapsed Length (IN): 13.52

Extended Length (IN): 21.46

Collapsed Length (MM): 343.3

Extended Length (MM): 545

2001-2010 GM 2500/3500 HD (Non-Quadrasteer)

Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application.  A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
