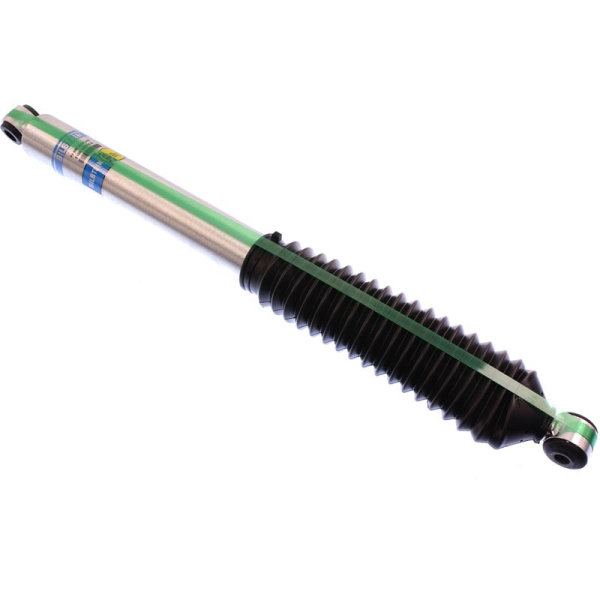

Improve your Ford with the Bilstein 5100 Series Shock Absorber 33-185545. The 5100 Series are high gas pressure monotube shocks. Expertly designed for lifted pickups, SUVs and Jeeps, the shocks feature a 46mm digressive piston with an innovative self-adjusting deflective disc valving. The 5100 Series offers a superior damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Specifications:
Part Number: 33-185545
Old Part Number: F4-BE5-6245-H5
Setting: 5100 Series
Drive Type: 4WD
Position: Front
Front Spring Type: Leaf
Rear Spring Type: Leaf
Descriptor: Front Lifted Height: 4-6"
Quantity Per Vehicle: 2
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
Collapsed Length (IN): 15.96
Extended Length (IN): 26.02
Collapsed Length (MM): 405.5
Extended Length (MM): 661
Applications:
2000-2005 Ford Excursion
1999-2004 Ford F-250/350
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to other. Shock Absorbers sold individually.
YEAR | MAKE | FOR ENGINE SERIES |
1999 | Ford | 7.3L Powerstroke |
2000 | Ford | 7.3L Powerstroke |
2001 | Ford | 7.3L Powerstroke |
2002 | Ford | 7.3L Powerstroke |
2003 | Ford | 6.0L Powerstroke |
2003 | Ford | 7.3L Powerstroke |
2004 | Ford | 6.0L Powerstroke |
2005 | Ford | 6.0L Powerstroke |
1999 | Ford | Gas |
2000 | Ford | Gas |
2001 | Ford | Gas |
2002 | Ford | Gas |
2003 | Ford | Gas |
2003 | Ford | Gas |
2004 | Ford | Gas |
2005 | Ford | Gas |
