USD 99
Part #: BL33-174525

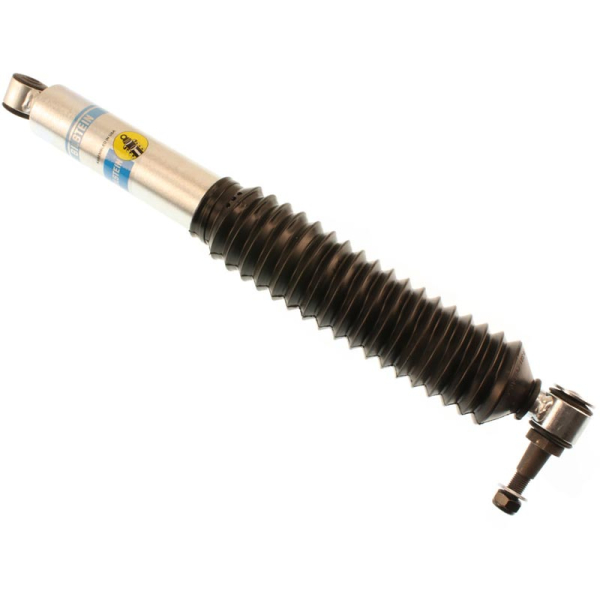

Bilstein 5100 Series Steering Damper 33-174525

2001-2010 GM 6.6L Duramax
Part #: BL33-174525
★★★★★ ★★★★★ 1 Reviews
$99.00
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

46mm Monotube Steering Damper
Bilstein 5100 Series Steering Stabilizers utilize the same high gas pressure monotube design found in our shock absorbers, offering instantaneous response to suspension inputs. These steering stabilizers feature digressive valving, reducing vibration and wear & tear on steering components. Designed specifically to replace the vehicle's OE stabilizer, for easy installation. (zinc-plated steel body, Triple-C-Technology coating)

Specifications
Part Number: 33-174525
Old Part Number: F4-BE5-H452-H0
Series: 5100 Series (Steering Damper)
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)

Measurements:
Collapsed Length (IN): 12.83
Extended Length (IN): 20.08
Collapsed Length (MM): 326
Extended Length (MM): 510

Applications:
20001-2010 GM 2500/3500

Specifications

  • MFG. Number 33-174525
  • Manufacturer Name Bilstein
  • Shipping Weight 10.00 lb.
  • Shipping Length 27 in.
  • Shipping Width 3 in.
  • Shipping Height 3 in.
  • Fuel Type Diesel
  • UPC 651860657172
  • Warranty Yes
  • Warranty Info Limited Lifetime
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Reviews

★★★★★ ★★★★★
5.0/5 Stars out of 1 Reviews
5
1
4
0
3
0
2
0
1
0
Great Direct Replacement
5
(Hanover, PA) | September 10th, 2014
This was a direct replacement for the factory steering damper on my 05 Silverado 4x4 3500 DRW.When I removed the factory damper, it was very difficult to push the piston back into the damper and the rebound was extremely slow (and needed help at a few points).The new damper was much more consistent in feel both in the extending and retracting of the piston rod. The install was as easy as two connection points.After being installed and front alignment complete, the steering feels better with less "kick-back" at the steering wheel. Road feel is about the same as before.No complaints.

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

Will this fit 86 Chevy Suburban K20 4x4? Stock replacement or to upgrade a dual system
View Staff Answer
Answer

The Bilstein 5100 Series Steering Damper 33-174525 is listed to fit the 01-10 GM 6.6L Duramax. Bilstein does not list the item to fit your application, but if you'd like to reference the dimensions they are as follows: Collapsed Length (IN): 12.83, Extended Length (IN): 20.08, Collapsed Length (MM): 326, Extended Length (MM): 510.

Does this stabilizer fit a 2005 chevy hd 2500 4x4 diesel Products details
View Staff Answer
Answer

The Bilstein 5100 Series Steering Damper 33-174525 is indicated to be used on 01-10 GM 6.6L Duramax and designed specifically to replace the vehicle's OE stabilizer, for easy installation.

Does this come with the boot?
View Staff Answer
Answer
Yes, the shock boot is included.
I have a 2005 2500 HD with a diesel, and a six inch lift. Is this still the right steering stablizer
View Staff Answer
Answer
Please refer to the lift kit manufacturer with questions in regard to part compatibility with the lift.
