Part #: EP84030

Edge Products 84030 Insight CS2

Fits 1996+ OBDII Vehicles & Pre-1996 w/ EAS 12V Power Supply Kit*
Part #: EP84030
$305.95 $275.35
In-Stock
ADD A 1-YEAR XDP Replacement Guarantee! - *VIEW DETAILS*
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

MVP Authorized Dealer
Xtreme Diesel Performance is an Authorized MVP dealer. We would like you to shop with confidence knowing your purchase is covered by the manufactures warranty.

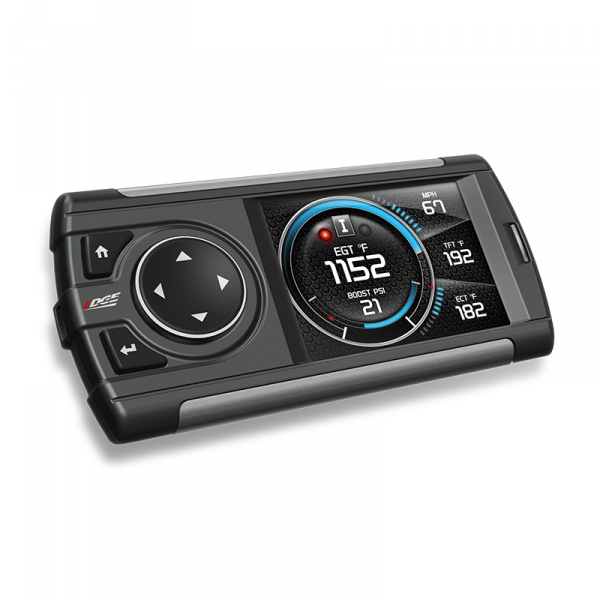

The Edge Products 84030 Insight CS2 is an all-in-one digital monitor that will provide you with the info you need to monitor your engine vitals. With unmatched control and style, the Insight CS2 offers the most advanced technology in engine monitoring available today. The Insight CS2 offers the same great features and benefits offered by its predecessor, the CS, all while adding a sleek, new exterior and cutting-edge, high-resolution screen. The Insight CS2 is compatible with any OBDII-enabled vehicle 1996 and newer.

Features
  • Available for 1996 and newer vehicles equipped with an OBDII (diagnostic) port
  • Full-Color, High-Resolution, 2.4-inch Screen (CS2)
  • Displays available SAE data from your vehicles computer*
  • View parameters in numeric or analog style gauge display
  • Built-in safety features: user-defined visual and audible alerts
  • Digital gauge display/scan tool (does not reprogram/tune the vehicle or add power)
  • Can be used in conjunction with Edge or other performance products to read vital engine data
  • Great Value because it monitors much more than just a typical 3-guage cluster
  • Sounds user-defined audible alerts
Scan Tool
  • Capture and record even more information about the vehicles performance with the Insights scan tool feature.
  • Displays and clears diagnostic trouble codes with full text description*
  • Displays peak values such as speed and RPM, HP & Torque*
  • Performance testing: 0-60 and quarter-mile times
Bonus Features:

Adjust EFILive Tuned PCMS On-The-Fly
On 2001-2005 LB7 and LLY Duramax engines you can now change the power levels on-the-fly created by your EFILive custom tuning software with your Edge Insight CS2! Simply use your EFILive software to change your DSP5 Switch Type from hard wire to serial. Once you are set up to support serial communication, simply use the up and down arrow buttons on your Insight to adjust EFILive tunes on-the-fly.
  • Displays Fuel Rail Pressure on Duramax Engines
  • Displays Diesel Particulate Filter (DPF) Regeneration Status on new diesels with DPF traps
Data Logging Software
Fine tune your runs on the track, or prolong the life of your tow vehicle by identifying "out of range" parameters. The CS2 Data Logging feature can show you crucial data to help you identify the sweet spots as well as potential problems with your driving experience. Shaving a few tenths of a second off your race time, or running a few degrees cooler makes all the difference.  The data logging feature allows for a comprehensive, accurate picture of the vehicles condition, such as temperatures, pressures, speed, and more!

  • Store up to 10 unique logs at a time
  • Log hours of data
  • View and graph logs on your PC using the new MyStyle Software
  • View all parameters or pick which ones you want to view
Control Smarty's Power-On-Demand
Your Dodge is tuned with Smarty, but how are you monitoring your vital engine parameters? Tuning your Dodge and not running an Insight monitor is like taking a knife to a gun fight. The Edge Insight beats any analog gauge system or other digital monitors hands down when it comes to features, monitoring, and maintenance. With our new software update, Smarty users can now control their Power-On-Demand from the Insight monitor. You have a lot of money invested in your Dodge and you deserve the best. You deserve Edge!
  • Use the Insight to change the Power-On-Demand settings of your Smarty programmer with a touch of a button
  • If your truck is tuned by Smarty, simply connect the Insight to your OBDII (diagnostic) port and control the Smarty Power-on-Demand tuning that was loaded into your trucks computer!
Expandable (items sold separately)
  • With the EAS 12V Power Supply Kit you can use the Insight on pre-OBDII vehicles by wiring it to a 12V power source!
  • Compatible with optional Edge Accessory System (EAS) to allow users to connect multiple, additional accessories
  • Compatible with optional EGT pyrometer for engine protection
  • Control aftermarket lights, compressors and more with 98609 EAS Power Switch
*EAS 12 Volt Power Supply Kit (sold separately, required for universal application)
Convert any Insight CS2 into a digital gauge for any vehicle without an OBDII connection!
Simply connect the power cable to a 12V power source on your vehicle. By connecting to a key-switch power and ground source, your Insight becomes a digital gauge display for anything that you want to monitor! With the EAS system, you can monitor EGTs, pressure readings, temperature readings, and much more.


MYSTYLE SOFTWARE (included)
MyStyle software that allows users to choose from a variety of Edge custom backgrounds or simply upload an image of your choice. Size, crop and save to your CS2 unit for the ultimate in customizability. Internet updates require Windows PC.




*Click application below to view vehicle specific parameters (PIDs).
**These are parameters for the Insight CS2.

Cadillac 2001-2006 Gas

Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Cadillac 2007-2011 Gas

Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle, Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed


Chevrolet/GMC 2001-2004 6.6L Duramax LB7

Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate 02+, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure 03+, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed


Chevrolet/GMC 2004.5-2005 6.6L Duramax LLY

Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Main Inj Command, Main Inj Fuel Rate, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Pilot Inj Command, Pilot Inj Rate, Pilot Inj Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed


Chevrolet/GMC 2006-2007 6.6L Duramax LLY & LBZ

Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Fuel Rail Pressure, ,Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed


Chevrolet/GMC 2007.5-2010 6.6L Duramax LMM

Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Desired FRP, Desired Idle RPM, DPF Pressure Variance, DPF Soot Mass, EGT Post DPF, EGT Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Engine Run Time, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Intake Air Temp Tube, Main Injection Timing, Manifold Abs Pressure, Mass Air Flow,Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Turbo Vane Position, Vehicle Speed


Chevrolet/GMC 2011 Duramax LML

Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Calculated Fuel Rate, Corrected Speed, Desired Idle RPM, DPF Pressure Variance, DPF Soot Mass, EGT Post Turbo, EGT, Post DOC/Pre SCR, EGT Post SCR/Pre DPF, EGT, Post DPF, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine RPM, Engine Run Time, Fuel Level, Fuel Rail Pressure, Fuel Temperature, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG, Instant, MPG Average, Output Shaft Speed, Regeneration Status, Reductant (Urea) Level, Reductant Pressure, Reductant Temperature, Reductant Range, Reductant Inj Command, Trans Temp, Turbo Boost


Chevrolet 1999-2006 Gas

Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Chevrolet 2007-2011 Gas

Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed


Dodge 1998.5-1999 24V 5.9L Cummins

Accel Pedal Position, Battery Temp, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Pressure (Juice w/ Attitude Only), Gear, Intake Air Temp, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed (Mileage Coach Not Yet Available)


Dodge 2000-2002 24V 5.9L Cummins

Accel Pedal Position, Battery Temp, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Pressure (Juice w/ Attitude Only), Gear, Intake Air Temp, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Dodge 2003 5.9L Cummins

Accel Pedal Position, Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Dodge 2004-2005 5.9L Cummins

Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear, Gear with Reverse, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Dodge 2006-2007 5.9L Cummins

Barometric Pressure, Battery Voltage (Insight Only), Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level (Insight Only), Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Dodge 2007.5-2011 6.7L Cummins

Barometric Pressure, Battery Voltage, Boost, Calculated Load, Corrected Speed, DPF Pressure, Engine Coolant Temp, Engine Speed, Fuel Level, Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Mileage Coach, MPG Instant, MPG Average, Post DOC EGT, Post DPF EGT, Post Nox EGT, Regeneration Status, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Ford 1994-1997 7.3L Powerstroke

Battery Voltage, Engine Load, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle


Ford 1999-2003 7.3L Powerstroke

Accel Pedal Position, Battery Voltage, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle


Ford 2003-2007 6.0L Powerstroke

Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed (03-04), Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, FICM Voltage, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, TCC Duty Cycle, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed (04-07), Variable Geometry Turbo Duty Cycle


Ford 2008-2010 6.4L Powerstroke

Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, EGT, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Regeneration Status, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost


Ford 2011 6.7L Powerstroke

Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, Dist. Between Regens, Dist. Since DTC Clear, Dist. Since Regen, DPF Pressure, DPF Soot Mass, DTC Count, EGT Post DPF, EGT Pre DPF, EGT Post Turbo, EGT Post SCR/Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Fuel Rate, Gear with Reverse, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Nox PPM, Regeneration Status, Reductant (Urea) Level, Time 0-60, Time 1/4 mile, Torque, Torque Solenoid Pressure, Trans Temp, Turbo Boost


Ford EcoBoost 2011-2012

ACC Pedal Position, Baro Pressure, Batt Voltage, Cylinder Head Temp, Engine Coolant Temp, Engine Load, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Engine RPM, Manifold ABS Pressure, Mileage Coach, Mileage Avg., Mileage Inst., Run Time, Spark Advance, TCC Solenoid Pressure, Trans Fluid Temp, Trip Odo, Turbo Boost, Vehicle Speed


Ford 2009-2010 Gas

Accel Pedal Position, Barometric Pressure, Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Engine Run Time, Gear with TCL, Knock Sensor 1, Knock Sensor 2, Loop Status, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Time 0-60, Time 1/4 mile, Trans Temp, Variable CAM, Vehicle Speed


Ford 2004-2008 Gas

Accel Pedal Position, Battery Voltage, Corrected Speed, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Line Pressure Desired, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Variable CAM, Vehicle Speed


Ford 1997-2003 Gas

Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


GMC 1999-2006 Gas

Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


GMC 2007-2011 Gas

Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed


Hummer H2 2003-2006 Gas

Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Hummer H2 2007-2008 Gas

Accel Pedal Position, Activated Cylinders, Air Flow Calculated, Alcohol Fuel Percent, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine Oil Pressure, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Lambda, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Power Enrichment, Throttle Position, Time 0-60, Time 1/4 mile, Timing Advance, Trans Temp, Vehicle Speed


Isuzu 2003-2004 Gas

Abs Throttle Position, Air Fuel Ratio, Barometric Pressure, Battery Voltage, Desired Idle RPM, Engine Coolant Temp, Engine Load, Engine RPM, Fuel Level, Gear with TCL, Intake Air Temp, Loop Status, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Oil Life Remaining, Output Shaft Speed, Power Enrichment, Spark Timing, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed


Dodge Ram 2003 Hemi

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Dodge Ram 2004-2005 Hemi

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Dodge Ram 2006 Hemi

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, MDS Status, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Dodge Ram 2007-2008 Hemi

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear with TCL, Global Knock, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Mass Air Flow, MDS Status, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Dodge Ram 2007-2008 Hemi

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Temp, Engine Speed, Fuel Level, Gear with TCL, Global Knock, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Mass Air Flow, MDS Status, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Jeep 1998-2007 Wrangler

Battery Temp, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear, Gear with Reverse, Intake Air Temp, Output Shaft Speed, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle (Mileage Coach Not Yet Available)


Jeep 2005-2006 Wrangler

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Oil Pressure, Engine Speed, Fuel Level, Gear, Gear with Reverse, Intake Air Temp, Intake Manifold Vacuum, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Jeep 2007-2011 Wrangler

Ambient Air Temp, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level, Gear with TCL, Intake Air Temp, Knock Sensor 1, Knock Sensor 2, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Timing, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, VGT Duty Cycle


Lincoln 2009-2010 Gas

Accel Pedal Position, Barometric Pressure, Battery Voltage, Cyl Head Temp, Engine Coolant Temp, Engine Load, Engine RPM, Engine Run Time, Gear with TCL, Knock Sensor 1, Knock Sensor 2, Loop Status, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Spark Advance, Time 0-60, Time 1/4 mile, Trans Temp, Variable CAM, Vehicle Speed


Other 1996+ OBDII Enable Vehicles (Not all PIDs listed will show up on all vehicles)

Abs Throttle Position, Accel Pedal Position, Accel Pedal Pos. D, Accel Pedal Pos. E, Accel Pedal Pos. F, Accel Throttle Pos. B, Accel Throttle Pos. C, Barometric Pressure, Battery Voltage, Corrected Speed, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Fuel Pressure, Fuel Rail Pressure, Intake Air Temp, Lambda, Learned Throttle Pos., Long Term Fuel Bank 1, Long Term Fuel Bank 2, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, O2 S1 WR Lambda, O2 S2 WR Lambda, O2 S3 WR Lambda, O2 S4 WR Lambda, O2 S5 WR Lambda, O2 S6 WR Lambda, O2 S7 WR Lambda, O2 S8 WR Lambda, Rel. Fuel Rail Press., Short Term Fuel Bank 1, Short Term Fuel Bank 2, Spark Timing, Time 0-60, Time 1/4 mile, VGT Duty Cycle






Specifications

  • MFG. Number 84030
  • Manufacturer Name Edge Products
  • Shipping Weight 2.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 7 in.
  • Shipping Height 4 in.
  • UPC 810115011712
  • Warranty Yes
  • Warranty Info 1 Year

Reviews

Be the first to rate this item!

Write Review

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

What will this device monitor out of the box with no add ons? 2000 Ford F-250 7.3
View Staff Answer
Answer

VEHICLE PARAMETERS (00 Ford F250 7.3L)

Accel Pedal Position

Battery Voltage

Engine Oil Temp

Engine RPM

Exhaust Back Pressure

Gear with TCL

ICP Pressure

Injector Pulse Width

Intake Air Temp

IPR Duty Cycle

Manifold Abs Pressure

Mileage Coach

MPG Instant

MPG Average

Time 0-60

Time 1/4 mile

Timing

Trans Temp

Turbo Boost

Vehicle Speed

Waste Gate Control Duty Cycle

Can it read in Cellcius instead of Fahrehite?
View Staff Answer
Answer

Yes, temperature may be viewed as Fahrenheit or Celsius.

what will this monitor on a 2006 Dodge 2500?
View Staff Answer
Answer

Dodge 2006-2007: Barometric Pressure, Battery Voltage (Insight Only), Boost, Calculated Load, Corrected Speed, Engine Coolant Temp, Engine Speed, Fuel Level (Insight Only), Fuel Rail Pressure, Gear with TCL, Intake Air Temp, Manifold Air Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Vehicle Speed.


To best answer your question we request that more personalized questions requiring further details on a person’s use, experience, diagnostics, pricing, company policy, availability, special orders or any fitment other than what’s listed under the products application be directed to one of our Diesel Experts. Experts are available via E-mail (), Phone (1-888-343-7354) or LiveChat (Found on the bottom right hand corer of our website). This allows XDP to offer you a more personalized response to your question as well as an open channel for further questions and conversation.

Well this product recalculate for different tire sizes on a 2012 ford f350 6.7
View Staff Answer
Answer

The EDGE PRODUCTS 84030 INSIGHT CS2 will not recalibrate the factory speedometer for a non-factory tire size.
However, the EDGE PRODUCTS 84030 INSIGHT CS2 will have the ability to display the vehicle’s TRUE SPEED after inputting the vehicle’s factory and current tire size.
