USD 55.41
Part #: FO4C3Z-9B246-F

Ford STC HPOP Fitting Update Kit 4C3Z-9B246-F

2004.5-2007 Ford 6.0L Powerstroke
Part #: FO4C3Z-9B246-F
★★★★★ ★★★★★ 1 Reviews
Our Recommendations Compatible Products
Scroll to View More


The Ford STC HPOP Fitting Update Kit 4C3Z-9B246-F is a must-have upgrade the High-Pressure Oil Pump in your 2004.5-2007 Ford 6.0L Powerstroke. This fitting update is designed to stop minor leaks from the STC fitting that can cause hard start issues when the engine is at operating temperatures. The failure prone stock fitting is also known to blow apart, cause your engine to die completely without the ability to restart, leaving you stranded.

  • Sold Individually
  • Genuine Ford Part
  • Includes Bolts, Gaskets & O-Rings

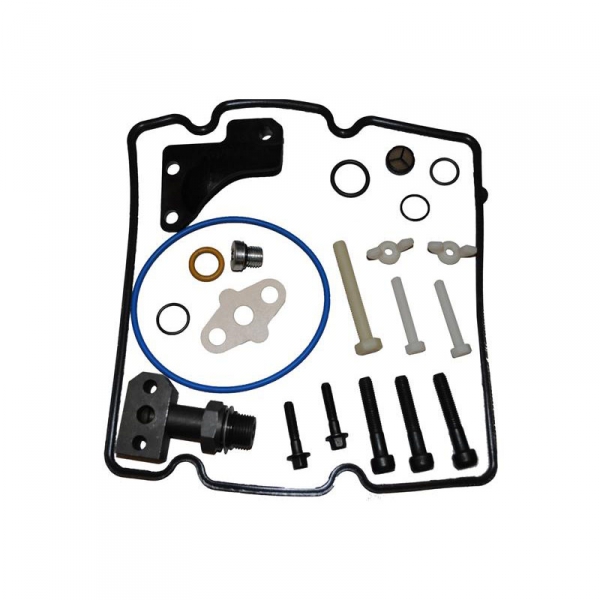

Kit Includes:
1 Support Bracket
1 M8 X 45 mm Pump Bolt
1 Hydraulic Pump Seal Kit
2 M8 X 60 mm Pump Bolts
1 Branch Tube Adapter - Male
1 HPOP Adapter Fitting - Female
2 M6 X 35 mm Branch Tube Bolts


  • MFG. Number 4C3Z-9B246-F
  • Manufacturer Name Ford / Motorcraft
  • Shipping Weight 1.00 lb.
  • Shipping Length 5 in.
  • Shipping Width 5 in.
  • Shipping Height 5 in.
  • Fuel Type Diesel
  • Warranty Yes
  • Warranty Info 2 Year Unlimited Mileage
  • Prop 65 WARNING: Cancer & Reproductive Harm -


★★★★★ ★★★★★
4.0/5 Stars out of 1 Reviews
as expected
(NC) | January 17th, 2020
Well I tore into my HPOP only to find the updated fitting was already installed. Lucky me. No instructions are included.

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

Is this update needed for an 03 engine?
View Staff Answer
The Ford STC HPOP Fitting Update Kit 4C3Z-9B246-F will only work with the 2004.5+ 6.0L's built after 9/22/03.
I have a 04 F350 that I bought new in May 2004. I don't know the actual build date, can it be determined without the truck?
View Staff Answer

Call your local Ford Dealer with your VIN# to check the OEM # on your HPOP. If they say you have the 5C3Z-9A543-ARM pump, then this update kit is correct for your application. If they say you have the 3C3Z-9A543-AARM pump, then you have an early 03-04 application and this kit will not work with your truck.

On the 04 I found out I have a 4C3Z pump, the tech didn't know if it needed updating. Do I need an update?
View Staff Answer

There are no updates available for the 2003-2004 Ford 6.0L's with High Pressure Oil Pump (HPOP) 3C3Z-9A543-AARM. This kit is specifically for the 04.5-07 Ford 6.0L's with High Pressure Oil Pump (HPOP) 5C3Z-9A543-ARM.

The best way to determine if this Fitting Update Kit will work with your application is check you build date & ICP sensor location. Trucks built after September 30, 2003 and/or ICP sensor is located on the passenger side valve cover (above the glow plug control module) would use this kit.

The OEM# that Ford provided me for my HPOP was 4C3Z-9A543-ARM. Will this kit work?
View Staff Answer

I believe you are referring to the Ford 4C3Z-9A543-(AARM). This would make the truck a late production 2004. This pump is different from the 05-07 pump and would not use the STC HPOP Fitting Update Kit 4C3Z-9B246-F.
