USD 799.95
Part #: FOX883-02-167

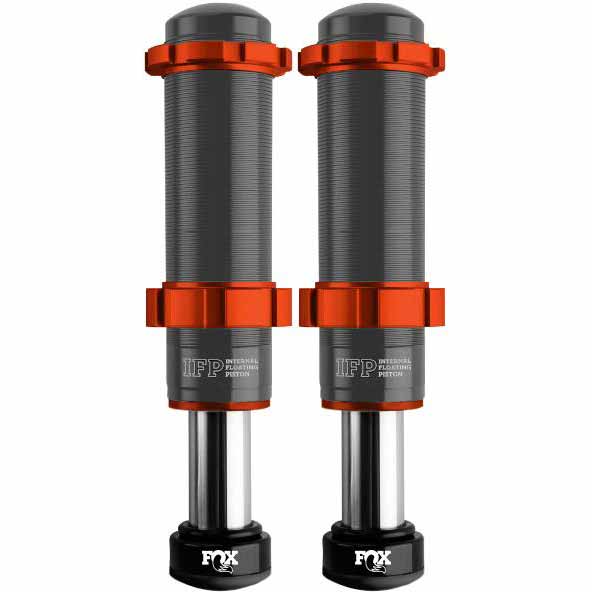

Fox 883-02-167 Factory Race Series 2.0 Bump Stop IFP (Pair)

Vehicle Fitment:
2018-2023 Jeep Wrangler JL | 2020-2023 Jeep Gladiator JT (Front) | See full application list below
Part #: FOX883-02-167
$799.95
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Replace the boring factory shocks on your Jeep with the Fox 883-02-167 Factory Race Series 2.0 Bump Stop IFP (Pair) from XDP. The Factory Race Series bump stop draws inspiration from its off-road racing predecessors. It combines race-proven technology with cutting-edge features to deliver increased damping performance and bottom-out control in the last few inches of suspension travel. The threaded body enables you to adjust the mounting height for precise tuning of when the bump stop engages during up travel, thus preventing harsh bottom-outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking, while the negative coil spring softens initial impacts and harsh top-outs. The integrated FOX AIR VALVE (FAV) is situated at the bottom of the shaft, providing easy access and protected by the replaceable strike pad. With Factory Series bump stops, you can use every inch of suspension travel without the fear of harsh bottoming.

Features:
  • Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
  • Components: Black anodized, CNC machined 6061-T6 billet aluminum
  • Pad: Replaceable Delrin� strike pad
  • Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
  • Piston: Heavy-duty powdered steel
  • Valving: Tunable, velocity-sensitive deburred valve shims
  • Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
  • Adjustments: Nitrogen pressure



Specifications:
Ext Length: 10.040
Col. Length: 8.180
Travel: 1.850
Top Mount: Threaded Body
Bottom Mount: None

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
2018 Jeep Wrangler
2019 Jeep Wrangler
2020 Jeep Wrangler
2021 Jeep Wrangler
2022 Jeep Wrangler

Specifications

  • MPN 883-02-167
  • SKU FOX883-02-167
  • GTIN 711745590595
  • ID 130527
  • Manufacturer Name FOX
  • Shipping Weight 60.00 lb.
  • Shipping Length 19 in.
  • Shipping Width 7 in.
  • Shipping Height 4 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Warranty Info 1 Year Limited
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
