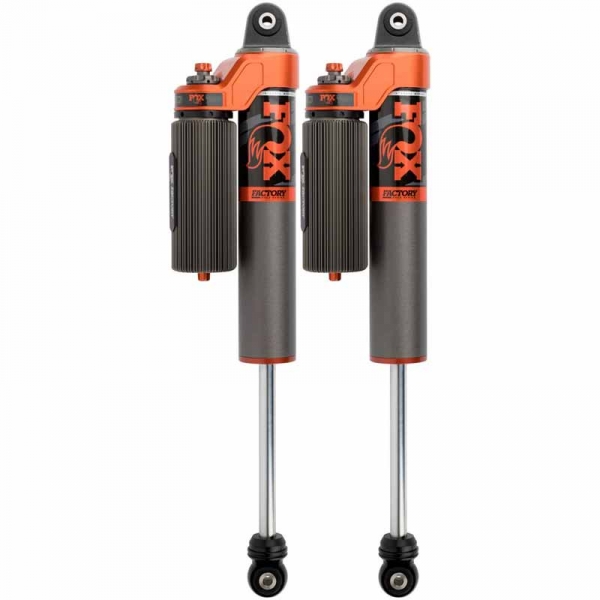

Fox 883-26-078 3.0 Factory Race Series Adjustable Reservoir Shock (Pr)

Mount the Fox 883-26-078 3.0 Factory Race Series Adjustable Reservoir Shock (Pr) from XDP onto your Jeep and ensure you are always getting a smooth ride. The Factory Race Series 3.0 Internal Bypass shock is a bolt-on kit that offers position-sensitive damping technology and performance. This patented technology includes regulated ports that allow fluid to bypass the piston during initial travel and force fluid through the piston during extreme compression and rebound ranges. The result is a plush and predictable ride over normal off-road driving conditions, along with the ability to counteract harsh bottom-outs or top-outs that could cause trouble. These shocks are designed with precision-machined aluminum components, race-bred internal valving, and hard-anodized, aluminum-bodied exteriors. They are meant to be installed on 3.5-4.5" aftermarket suspension lift kits using OEM shock pivots. The shocks feature a NEW remote Recirculating Reservoir Bridge and hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink to increase heat dissipation and maintain optimal shock oil temperature for consistent damping. The Factory Race Series 3.0 Internal Bypass shocks use the same components as our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil, and high-temp seals.

Features:

• Adjuster Type: DSC - Dual Speed Compression
• Piston: Race-Developed High-Flow Piston Design
• Body Plating: Hard-Anodized For A Durable Finish
• Shaft: 7/8" Hard Chrome Plated Heat-Treated Alloy Steel
• Valving: Application-Specific Valving To Maximize Performance
• Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
• Reservoir: Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast
• Bearing: PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth
• Mounting: Machined 7075 Aluminum Reservoir Mounting Hardware And Offset Bottom Shock Mounts Included
• Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions
• Adjustments: Dual Speed Compression (DSC) Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment
• Body: 3.0" Impact-Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel

Specifications:
Ext Length: 29.780
Col. Length: 18.930
Travel: 10.850
Top Mount: Eyelet
Bottom Mount: Eyelet
