USD 2999.95
Part #: FOX883-26-082

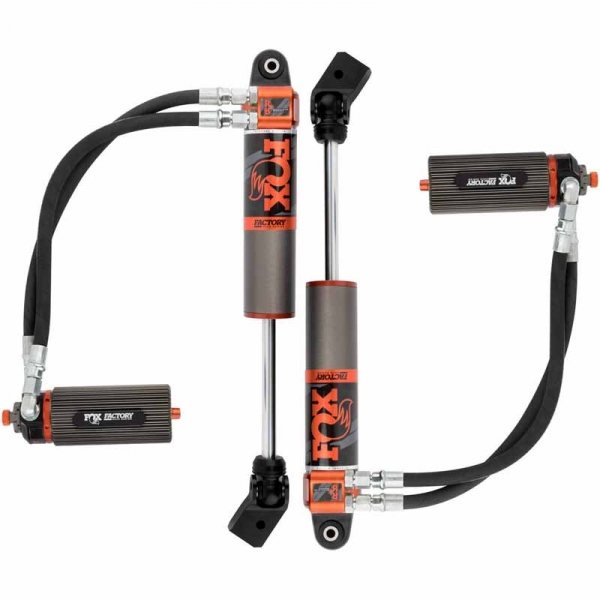

Fox 883-26-082 3.0 Factory Race Series Adjustable Reservoir Shock (Pr)

Vehicle Fitment:
2020-2023 Jeep Gladiator JT (Front) Lifted 3.5-4.5" (With Front Driveshaft) | See full application list below
Part #: FOX883-26-082
$2,999.95
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Upgrade the shocks on your 2020-2023 Jeep Gladiator JT with the Fox 883-26-082 3.0 Factory Race Series Ajustable Reservoir Shocks from XDP. The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail. These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your 3.5-4.5" aftermarket suspension lift kit using OEM shock pivots. Featuring NEW remote Recirculating Reservoir Bridge and hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink for increased heat dissipation to maintain optimal shock oil temperature for consistent damping. The Factory Race Series 3.0 Internal Bypass shocks utilize the same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton� seals.

Features:
  • Body: 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
  • Body Plating: Hard-anodized for a durable finish
  • Reservoir: Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application-specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
  • Adjustments: Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment
  • Mounting: Machined 7075 aluminum reservoir mounting hardware and offset bottom shock mounts included
  • Adjuster Type: DSC - Dual Speed Compression



Specifications:
Ext. Length: 27.690
Col. Length: 16.980
Travel: 10.710
Top Mount: Eyelet
Bottom Mount: Eyelet

Note: Does Not Fit Mojave Models

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
2023 Jeep Gladiator

Specifications

  • MPN 883-26-082
  • SKU FOX883-26-082
  • ID 130541
  • Manufacturer Name FOX
  • Shipping Weight 45.00 lb.
  • Shipping Length 39 in.
  • Shipping Width 20 in.
  • Shipping Height 12 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Lift Height 3.5", 4", 4.5"
  • Position Front
  • Warranty Info 1 Year Limited
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
