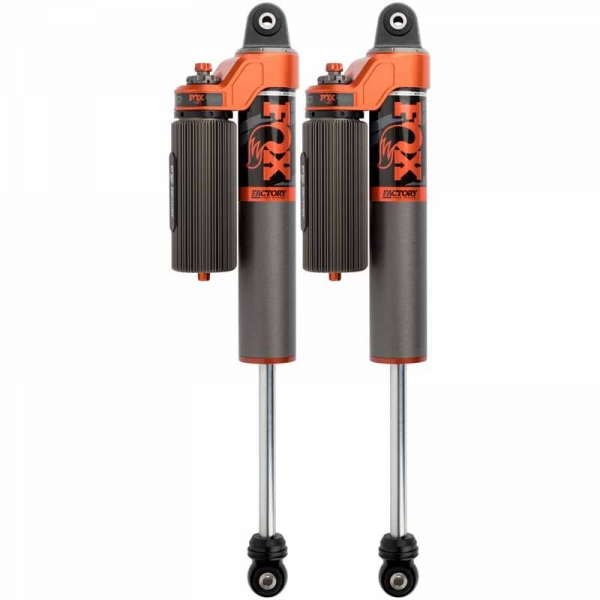

Fox 883-26-083 3.0 Factory Race Series Adjustable Reservoir Shock (Pr)

PART# 883-26-083 | SKU FOX883-26-083

Vehicle Fitment For:
2020-2023 Jeep Gladiator JT (Rear) Lifted 3.5-4" | See full application list below
$2,995.95

Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Replace the rear shocks on your 2020-2023 Jeep Gladiator JT with the Fox 883-26-083 3.0 Factory Race Series Ajustable Reservoir Shocks from XDP. The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail. These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your 3.5-4.5" aftermarket suspension lift kit using OEM shock pivots. Featuring a remote Recirculating Reservoir Bridge and hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink for increased heat dissipation to maintain optimal shock oil temperature for consistent damping. The Factory Race Series 3.0 Internal Bypass shocks utilize the same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp high-quality seals.

Features:
  • Adjuster Type: DSC - Dual Speed Compression
  • Piston: Race-Developed High-Flow Piston Design
  • Body Plating: Hard-Anodized For A Durable Finish
  • Shaft: 7/8" Hard Chrome Plated Heat-Treated Alloy Steel
  • Valving: Application-Specific Valving To Maximize Performance
  • Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
  • Reservoir: Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast
  • Bearing: PTFE-Lined, Heat-Treated, Alloy Steel Spherical To Keep The Shock Movement Quiet And Smooth
  • Mounting: Machined 7075 Aluminum Reservoir Mounting Hardware And Offset Bottom Shock Mounts Included
  • Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions
  • Adjustments: Dual Speed Compression (DSC) Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment
  • Body: 3.0" Impact-Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel

Specifications:
Ext. Length: 28.340
Col. Length: 18.930
Travel: 9.410
Top Mount: Eyelet
Bottom Mount: Eyelet

WARRANTY INFO:
1 Year Limited

Specifications

  • MPN 883-26-083
  • SKU FOX883-26-083
  • ID 130542
  • Manufacturer Name FOX
  • Shipping Weight 45.00 lb.
  • Shipping Length 39 in.
  • Shipping Width 20 in.
  • Shipping Height 12 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Lift Height 3.5", 4"
  • Position Rear
  • Warranty Info 1 Year Limited
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
