USD 1807.97
Part #: IMBMCBC15321

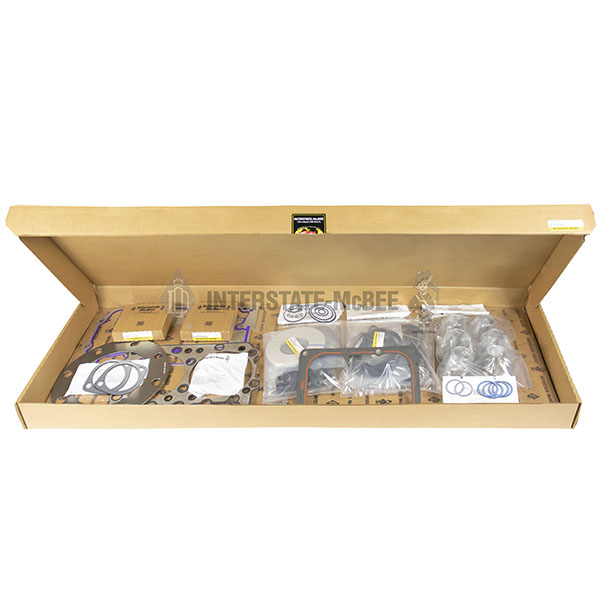

Interstate-McBee MCBC15321 Engine Overhaul Gasket Kit

Vehicle Fitment:
Caterpillar C15 | See full application list below
Part #: IMBMCBC15321
$1,807.97
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Add the Interstate-McBee MCBC15321 Engine Overhaul Gasket Kit from XDP to your engine and maintain proper operation. Visit XDP today and get the Interstate-McBee components your engine needs to function its best. This replacement component is constructed from high-grade materials to ensure that it will last a long time. With its direct-fit design, this product fits perfectly within the factory location.

Features:
  • Direct-Fit Install
  • Constructed For Durability and Longevity
  • Maintains Factory Function

Note:
Engine Serial Number: SDP

Contents:
(1) Central & Lower Sub Set
(1) Oil Line, O-Ring Seal, 1090072
(1) O-Ring Seal, 1090078
(1) O-Ring Seal, 1185068
(3) O-Ring Seal, 1210145
(1) Isolation Seal, 1685248
(1) O-Ring Seal, 2147566
(2) O-Ring Seal , 2147568
(1) O-Ring Seal, 2385080
(1) O-Ring Seal, 2385081
(1) O-Ring Seal, 2385084
(24) Sleeve, 2401614
(2) O-Ring Seal, 2500466
(1) O-Ring Seal, 2S4078
(1) O-Ring Seal, 335853
(2) O-Ring Seal, 3J7354
(2) Oil Pan One Piece Gasket, 4N1151-6
(1) Gasket, 4N699
(1) O-Ring Seal, 5P5846
(4) O-Ring Seal, 5P7701
(1) O-Ring Seal, 5P8068
(1) O-Ring Seal, 6V3683
(4) O-Ring Seal, 6V5048
(2) O-Ring Seal, 6V6609
(1) O-Ring Seal, 8J4351
(1) O-Ring Seal, 8L2779
(6) O-Ring Seal, 8L2786
(1) Front Cover Sub Set
(1) O-Ring Seal, 1178801
(1) O-Ring Seal, 1178801
(9) Washer, 1261757
(2) Washer, 1295427
(1) Seal Group - Crankshaft, 1425867
(1) Seal - Integral, 1559524
(1) Seal - Press In Place, 1607271
(2) O-Ring Seal, 1634565
(1) Gasket - Front Housing, 1669144
(2) O-Ring Seal, 2284947
(1) Gasket, 2893107
(1) O-Ring Seal, 336042
(1) O-Ring Seal, 5E8771
(1) O-Ring Seal, 5P5756
(1) O-Ring Seal, 619455
(6) O-Ring Seal, 6V5048
(3) O-Ring Seal, 6V5063
(1) O-Ring Seal, 6V6609
(1) O-Ring Seal, 8T9527
(1) Seal-O-Ring, 2197000
(1) Gasket, 2893108
(1) Head Set Sub Set
(1) O-Ring Seal, 0336033
(1) Gasket - Air Inlet Manifold, 1013125
(5) O-Ring Seal, 1085803
(6) O-Ring Seal, 1123102
(2) O-Ring Seal, 1378101
(1) Seal - Drainback , 1422329
(24) Seal - Valve Stem, 1632478
(12) O-Ring Seal, 1662904
(2) Locknut, 1687800
(2) Turbo Lines Group Gasket, 1978418
(2) Turbo Lines Group Gasket, 1978419
(5) O-Ring Seal, 2147566
(15) O-Ring Seal , 2147568
(1) Cylinder Head Shim, 2271204
(1) O-Ring Seal, 2287088
(6) O-Ring Seal, 2303728
(4) O-Ring Seal, 2385080
(1) O-Ring Seal, 2385082
(1) Seal, 2720390
(1) Turbocharger Gasket, 2746851
(6) Exhaust Sleeve Assy, 2818261
(1) Gasket, 2893107
(2) Gasket, 2967780
(4) Nut Lock, 2N2766
(2) Taperlock Stud, 2N9288
(4) Taperlock Stud, 3139550
(7) O-Ring Seal, 335853
(2) O-Ring Seal, 335879
(3) O-Ring Seal, 336027
(1) O-Ring Seal, 336039
(5) O-Ring Seal, 336042
(1) O-Ring Seal, 336043
(1) Gasket - Cylinder Head, 3590908
(24) Grommet - Water, 3E6772
(3) O-Ring Seal Fuel Line, 3J1907
(1) O-Ring Seal, 3K360
(2) O-Ring Seal, 4J5351
(1) Gasket - Regulator Housing, 4N1156
(1) O-Ring Seal, 5D5958
(2) Washer - Exhaust Manifold, 5M2894
(2) O-Ring Seal, 5P7814
(1) O-Ring Seal, 5P8356
(2) O-Ring Seal, 5P840
(1) O-Ring Seal, 6V1197
(2) O-Ring Seal, 6V1585
(1) O-Ring Seal, 6V3250
(1) O-Ring Seal, 6V3251
(1) O-Ring Seal, 6V3832
(1) O-Ring Seal, 6V4589
(4) O-Ring Seal, 6V5048
(1) O-Ring Seal, 6V5050
(5) O-Ring Seal, 6V5063
(3) O-Ring Seal, 6V5759
(5) O-Ring Seal, 6V6609
(1) O-Ring Seal, 6V7703
(7) O-Ring Seal, 6V9027
(1) O-Ring Seal, 8L2746
(18) O-Ring Seal, 8L2777
(1) O-Ring Seal, 8L2786
(6) O-Ring Seal Fuel Inj, 9X7317
(6) Inj Tube O-Ring Seal, 9X7430
(1) Seal-O-Ring, 2275903
(1) Seal O-Ring, 2287102
(1) Isolation Seal, 3044925
(1) Oil & Cooler Sub Set
(3) O-Ring Seal, 1195155
(1) Seal Integral, 1250434
(1) O-Ring Seal, 2147566
(2) O-Ring Seal , 2147568
(1) O-Ring Seal, 2287091
(1) Seal Integral, 2642468
(1) Seal Integral, 2642469
(1) Seal, 2655207
(3) Seal, 2722462
(2) O-Ring Seal, 2727018
(2) O-Ring Seal, 2H2665
(1) O-Ring Seal, 2S4078
(1) O-Ring Seal, 336042
(1) O-Ring Seal, 3H1461
(1) O-Ring Seal, 3J7354
(6) O-Ring Seal, 6V3251
(1) O-Ring Seal, 6V3683
(3) O-Ring Seal, 6V5048
(1) O-Ring Seal, 6V5063
(4) O-Ring Seal, 6V5134
(2) O-Ring Seal, 6V9027
(1) O-Ring Seal, 8J4351
(1) Seal-O-Ring, 2197000
(1) Rear Cover Sub Set
(1) Seal Group - Crankshaft, 1425868
(2) O-Ring Seal, 1J9671
(1) O-Ring Seal, 2147567
(1) O-Ring Seal, 2168997
(1) Seal - Integral, 2348937
(1) O-Ring Seal, 2385082
(1) Press In Place Seal, 2685582
(1) Press In Place Seal, 2685589
(1) O-Ring Seal, 2955609
(1) O-Ring Seal, 336027
(1) Gen Use O-Ring Seal, 3D2824
(1) Gasket, 4N933
(1) Water Pump Sub Set
(1) O-Ring Seal, 1223772
(1) Seal Integral, 1250434
(1) Seal Lip Type, 1531256
(1) O-Ring Seal, 1565198
(1) Seal Water Pump, 3362212
(1) O-Ring Seal, 6V5048
(3) O-Ring Seal, 6V5063
(1) O-Ring Seal, 6V6609
(1) O-Ring Seal, 6V7703
(1) O-Ring O-Ring, 2197000

Specifications

  • MPN MCBC15321
  • SKU IMBMCBC15321
  • ID 119402
  • Manufacturer Name Interstate-McBee
  • Shipping Weight 13.00 lb.
  • Shipping Length 49 in.
  • Shipping Width 17 in.
  • Shipping Height 3 in.
  • Fuel Type Diesel
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
