USD 422.49
Part #: MM77-50141W

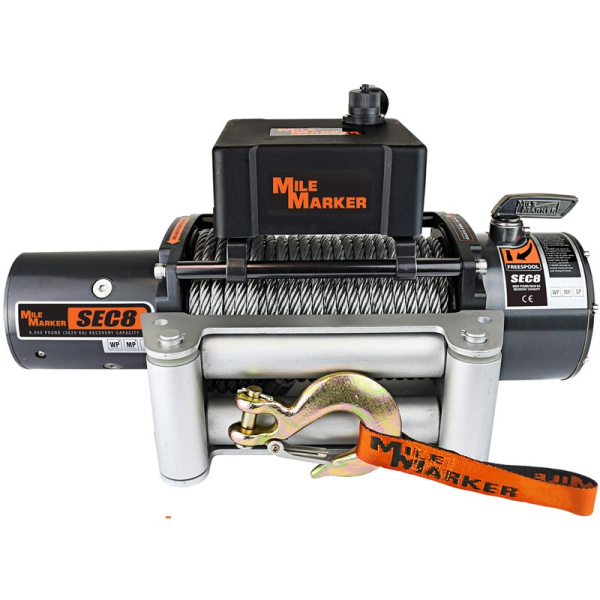

Mile Marker 77-50141W SEC8 (ES) Waterproof Winch

Universal Fit - 8,000 Pound Capacity
Part #: MM77-50141W
Ships from manufacturer (Usually in 2-4 Days)

An Email Will Be Sent With Expected Shipping Date After Purchase

Our Recommendations Compatible Products
Scroll to View More


The Mile Marker 77-50141W SEC8 (ES) Waterproof Winch is at home on the front of your pickup. Mile Markers Project ES (Element Sealed) winches feature best in class line speeds, corrosion proof construction, submersible solenoids with marine-grade connections, and have 19 watertight seals to conquer every element imaginable. Other winches claim waterproof or sealed, but Mile Markers Project ES winches were independently lab certified to the IP68 standard to be impermeable to liquid and dust.


  • 8,000 Pound (3629 kg) Capacity
  • Submersible, 500 Amp Solenoid
  • Series Wound Motors
  • Multi-Mount Solenoid
  • Clockable Gear Housing
  • Load Holding Brake
  • Marine Grade Remote Control Connectors
  • Corrosion-Free Construction
  • Fast Line Speeds

Part Number: 77-50141W Specifications
Rated Line Pull: 8000 lbs (3629 Kg)
Gear Train: 3 Stage Planetary
Gear Ratio: 152:1
Motor: Series Wound, 4.8 hp (3.6 KW), 12 V
Control: Pendant Power-In, Power-Out Remote, 12 (3.7 m)
Dimensions: (LxWxH) 21.50 X 6.25 X 8.00 (546.1 mm X 158.8 mm X 203.2 mm)
Cable: 5/16 X 100 (nominal 9,800 lbs, 4445 kg) (7.94 mm X 30.5 m)
Drum Size: 2.5 X 9 (63.5 mm X 228.6 mm)
Net Weight: 81 lbs (37 kg)
Bolt Pattern: 4 Bolt Pattern, 4.5 X 10,(114.3 mm X 254 mm)


  • MFG. Number 77-50141W
  • Manufacturer Name Mile Marker
  • Shipping Weight 83.00 lb.
  • Shipping Length 9 in.
  • Shipping Width 14 in.
  • Shipping Height 24 in.
  • Fuel Type Diesel / Gas
  • UPC 758626741417
