USD 906.95
Part #: MIMMRAD-F2D-99

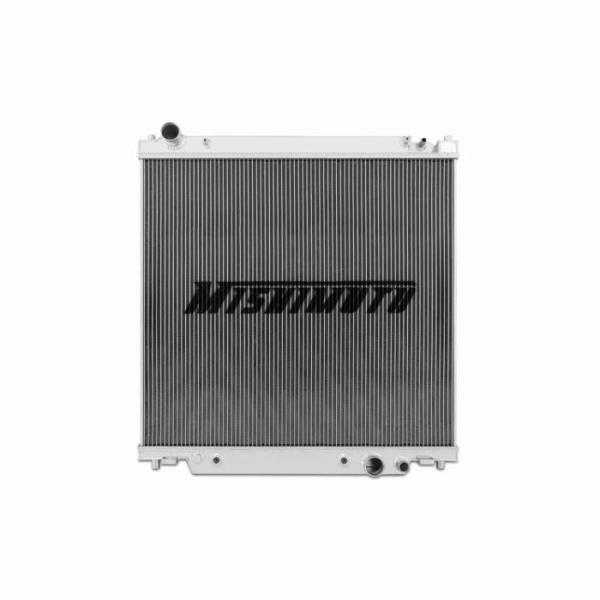

Mishimoto Aluminum Performance Radiator MMRAD-F2D-99

Vehicle Fitment:
1999-2003 Ford 7.3L Powerstroke | See full application list below
Part #: MIMMRAD-F2D-99
★★★★★ ★★★★★ 3 Reviews
$906.95
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Mishimoto has developed an aluminum performance radiator for the Ford F250 with a 7.3L Powerstroke Engine. The Mishimoto performance aluminum radiator for the Ford F250 is the ideal upgrade to the stock radiator. Designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your truck from overheating. Whether you use your Ford F250 for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded radiator for your engine. A stock radiator can not handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford F250 radiator features a lightweight two-row core made of 100% brazed aluminum and polished end tanks. Every Mishimoto Performance Radiator is a direct OEM fit, making installation effortless.

Features:
  • Direct Replacement
  • Up to 30% better cooling



Includes:
Mishimoto Radiator
2 Transmission Adapters
Magnetic Drain Plug
Limited Lifetime Warranty

Tech Specs:
Overall Size: 30.0" x 31.7" x 4.7"
Core Size: 29.4" x 26.5"
Rows: 2 Inlet: 1.77"
Outlet: 1.77"
Core Thickness: 2.20"
Tank Wall Thickness: .08"
Drain Plug Thread Size: M12 x 1.5"
Drain Plug Thread Length: .47"

Fits:
99-03 Ford F250 through F-550 Super Duty 7.3L Powerstroke
00-03 Ford Excursion 7.3L Powerstroke
Also fits V10 Triton Engines

Warranty: Mishimoto Performance (MP), warrants all of its products under its 'no questions asked' limited lifetime warranty policy. Regardless of the defect in product, Mishimoto will replace the original product. Warranty claims must be accompanied by the original sales receipt from an authorized dealer.
A trained professional should install all MP products. Any issues with compatibility or installation should be addressed before attempting to install the product.The purchaser's remedy for breach of this limited warranty, exclusive of all other remedies provided by law, is expressly limited to repair or replacement of any part or parts. All products returned for warranty consideration must be returned to MP with all transportation expenses prepaid.
MP shall not be responsible for damages to its products or injury to persons using the products in any manner that would constitute improper operation, including but not limited to: incorrect opening of radiator pressure caps, burst hoses, unintended application or usage not intended by MP, negligence, improper installation, or any other use that may cause damages or injury. MP shall not be responsible for injury or harm to persons or property when caused by persons or vehicles using its products.
Accident Protection
Mishimoto, under its no questions asked warranty policy, will provide a warranty for all claims including vehicles involved in accidents. Warranty claims must include pictures of the accident and an official police report, and must be within three months of the accident.
For all warranty claims, please contact Mishimoto.

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2001 Ford F-550 Super Duty
2002 Ford F-550 Super Duty
2003 Ford F-550 Super Duty
1999 Ford F-250 Super Duty
1999 Ford F-350 Super Duty
1999 Ford F-450 Super Duty
1999 Ford F-550 Super Duty
2000 Ford Excursion
2000 Ford F-250 Super Duty
2000 Ford F-350 Super Duty
2000 Ford F-450 Super Duty
2000 Ford F-550 Super Duty
2001 Ford Excursion
2001 Ford F-250 Super Duty
2001 Ford F-350 Super Duty
2001 Ford F-450 Super Duty
2002 Ford Excursion
2002 Ford F-250 Super Duty
2002 Ford F-350 Super Duty
2002 Ford F-450 Super Duty
2003 Ford Excursion
2003 Ford F-250 Super Duty
2003 Ford F-350 Super Duty
2003 Ford F-450 Super Duty

Specifications

  • MPN MMRAD-F2D-99
  • SKU MIMMRAD-F2D-99
  • GTIN 748354810363
  • ID 12973
  • Manufacturer Name Mishimoto
  • Shipping Weight 25.00 lb.
  • Shipping Length 38 in.
  • Shipping Width 34 in.
  • Shipping Height 7 in.
  • Fuel Type Diesel
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L3R1

Reviews

★★★★★ ★★★★★
3.7/5 Stars out of 3 Reviews
1
0
2
1
3
0
4
1
5
1
Mishimoto radiator
4
This a greatly needed radiator for a 7.3 powerstroke. The only reason I didn't give it a 5 star rating is that it did not come with plugs only transmission adapters. Needs to have both options. Can't wait to put this radiator in my truck.
NO Downside, if you have the coin.
5
As my headline states, I dont see ANY downside to this unit IF you have the coin to drop. PLUS, it looks AWESOME; For MY purposes that alone is justification. Subjective's aside, I would say s general rule:INSPECT ALL of your large, expensive, shipped items; dont delay or forget like I usually do when projects go on hold & parts dont go on right away. MINE CAME DAMAGED and thus i never installed it . NONE of this was XDP's fault or responsibility as these are, as I understand it, all drop-shipped. BUT XDP CUST SERVICE stepped up,come thru, and had new order placed & sent out THAT SAME DAY. So while I dont {YET} have any real-world, tech details/benefits to share with you: HERE'S a little MISC IMPT DETAIL you DO NEED know, keep in mind, and plan for: this is NOT a drop-in, ready-to-fly, 'no-cutting required' install as indicated. But I'm assuming that the folks buying these, or dudes/gals installing them in a shop} have the relative know-how and tools you WILL need. The welded-in fittings for the tranny cooler are NOT identical to oem Fittings! YOU NEED TO HACK OFF THE OEM STOCK, DEEP-SET INVERTED-FLARE FITTINGS FROM YOUR FACTORY TRANS LINES and then REFLARE the lines using standard 5/8th-18 fittings { ie. the kind which come with replacement 3/8th lines/tube from typical parts stores}. I'm working with Mishimoto to possibly correct/consider this little glitch. But As i see it, if you are buying these higher-end replacements [vs $240 stock oems} you know a little something about cars and this is NO BIG DEAL & GRAVY train fix {assuming you have a GOOD QUALITY flaring tool}; Its just another one of those unanticipated 'things' or wrenches { no pun intended} Life and Projects always seem to throw at ya. This COULD be a PITA, or a consideration, if you're on time schedule, or stuck somewhere [without your tools] in a pinch. Oh, by the way BUY FACTORY LINES...there is a difference. PLUS, I paid LESS for OEM tranny lines than Rock Auto Dorman specials. thx for reading.
Follow up review, revision.
2
Situation:NOT happy with Mish Customer Service & product Quality Assurance. Its now 3 weeks & STILL getting jerked around by MISH CS since November regarding a solution/resolution to THEIR screw-up product defect. As its obvious, I shoulda noticed the 'defect' prior to test-installing. These may seem small, petty issue but for this kinda $ you EXPECT it to be "right" & fit properly? You decide. MAIN PROBLEM ONE: The Lower fan shroud retainer tabs are literally 3/4 of inch TOO BIG/TALL, not to mention offset by 1/8 from centerline. The fan shroud would flop around and eventual break. TWO: The upper fan shroud stand-off posts/mounting tabs are 1/4" too long so you would need to DIEGRIND hack bit off or use wthrstip foam or other means to properly seal off gaps for proper airflow dynamics. THREE: you WILL need to ALSO modify/cut your oem fan shroud on the upper section which seats on upper rad tank; recall, the formed oem shroud seals against a ROUNDED factory plastic tank. These MISH tanks for squared. No big deal here I guess.. this latter type of issue is to be expected with custom stuff. I will provide photographic evidence to support all my claims. You, as reader can make up your own mind or decide if I'm asking too much for our $800 bucks. I AM TRYING to work with & resolve these issues with factory to create a better product& fix these few glitches. They dont seem too interested & claims they're "looking into it"..which doesnt do JACK for me/us in meantime or reimburse us several hours labor R&R. I'm giving them until Xmas to offer a credit or refund. Meanwhile, I'm consulting with other performance racing & radiator specialists. BOTTOM LINE: Look Cool? Yas. FXN better than oem? Jurys Out but maybe. Worth the Money? Probably not. Worth the aggravation its caused me thus far? No. Will anyone PAY you extra or appreciate a cool-lookin rad when you resell your rig? NOT LIKELY. OVERALL Cost-justified upgrade? Probably No. Fix the defects urslf & hope 4 the best.

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

Does this radiator have a oil to water trans. cooler built into the bottom tank? Does this radiator have an oil to water transmission cooler built into the bottom tank?
View Staff Answer
Answer

The MISHIMOTO ALUMINUM PERFORMANCE RADIATOR MMRAD-F2D-99 will be a direct OEM replacement radiator for the 1999-2003 Ford 7.3L Powerstroke. Please see the video on our page for installation instructions provided by Mishimoto.
