USD 74.25
Part #: MRMBAF000H

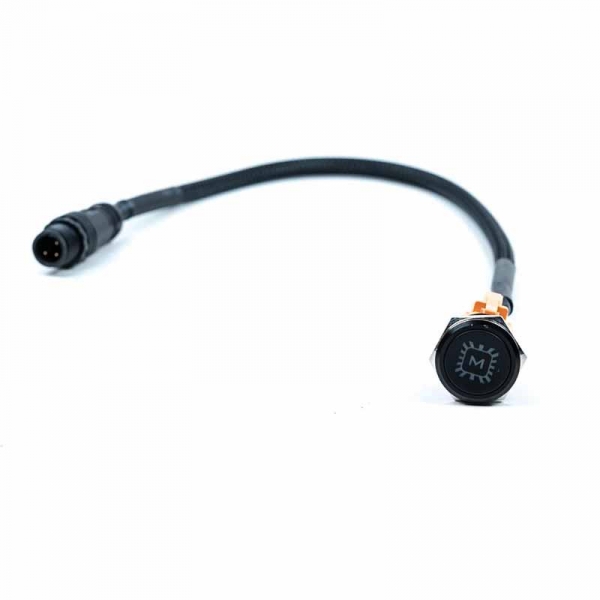

Morimoto BAF000H 2/4Banger Bar Power Harness (2 Pods)

Vehicle Fitment:
For Use With Morimoto 1/2/4 Banger Pod Lights & 2P DT Inputs
Part #: MRMBAF000H
$82.50 $74.25
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

Ground Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Wire the new lights on your vehicle with the Morimoto BAF000H 2/4Banger Bar Power Harness (2 POD) from XDP. The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight. All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 awg copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. The connections on the harness have been laid out in a logical way to power an LED pod on each side of your vehicle. There are two Deutsch outputs. A positive battery terminal, and ground terminal, and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall. While this harness is a perfect match for the Morimoto 4Banger LED pods, you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input (which is basically the industry standard).

Features:
  • Connects 2 LED Pods
  • Triple Sealed Proprietary 4-Pin Relays With Hanger
  • Proprietary Over-Molded Inline Fuse Holder With 20A Mini Fuse
  • DT06-2S Female Outputs With Dual Seals
  • Stainless Steel Power And Ground Terminals
  • Proprietary M-Spec Push Button Switch With Yellow-LED Backlight

Specifications

  • MPN BAF000H
  • SKU MRMBAF000H
  • ID 96831
  • Manufacturer Name Morimoto
  • Shipping Weight 2.00 lb.
  • Shipping Length 2 in.
  • Shipping Width 5 in.
  • Shipping Height 14 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
