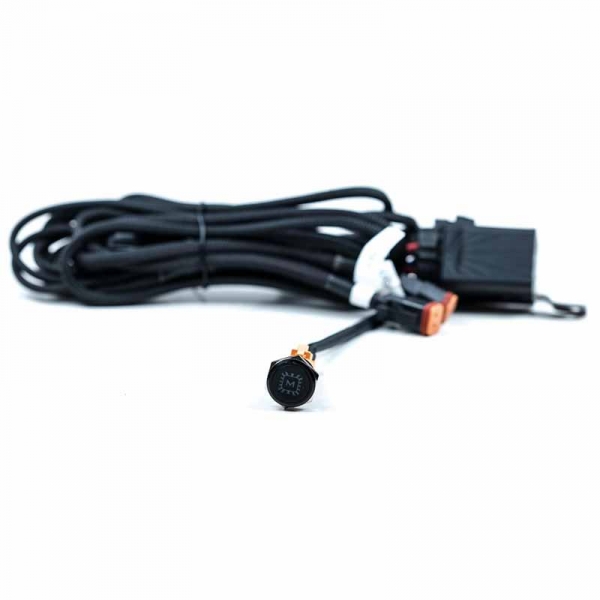

Morimoto BAF069H 2/4Banger Bar Extended Power Harness (6 Pods)

Install new LED lights on your vehicle with the Morimoto BAF069H 2/4Banger Bar Extended Power Harness (6 Pods) from XDP. The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple-sealed proprietary 4-pin relays with dual-hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. All wiring is properly sized and relays rated for flicker-free, reliable power delivery for up to six off-road lights. Every line of the beefy 10 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy-duty heat shrink. Your factory wire harness will fall apart before this thing. The connections on the harness have been laid out in a logical way to power up to three LED pods on each side of your vehicle. There are six total Deutsch outputs. A positive battery terminal, and a ground terminal. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation since you don't have to jam the switch mechanism through the firewall. This harness is a perfect match for many off-road lighting setups that take a DT-style two-pin input (which is basically the industry standard).

Features:

• Connects 6 LED Pods
• Triple Sealed Proprietary 4-Pin Relays With Hanger
• Proprietary Over-Molded Inline Fuse Holder With 20A Mini Fuse
• DT06-2S Female Outputs With Dual Seals
• Stainless Steel Power And Ground Terminals
• Proprietary M-Spec Push Button Switch With Amber-LED Backlight
• For 2-Pin Input LED Lights
