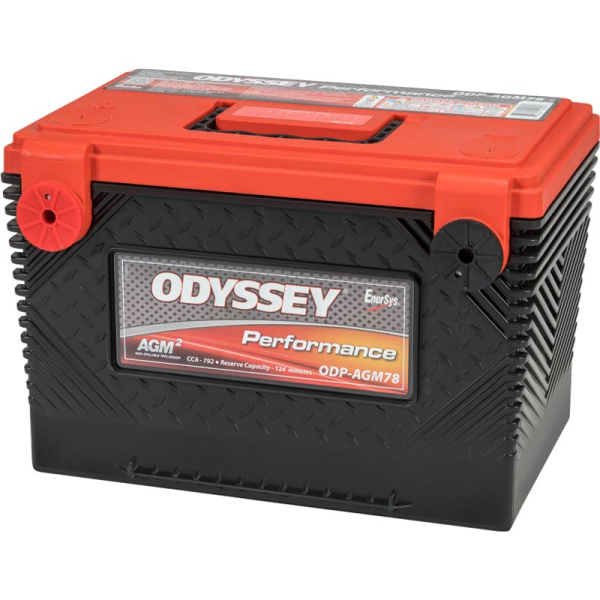

Upgrade the battery in your vehicle with the Odyssey Battery Performance AGM - Group Size 78 (800 CCA) ODP-AGM78. The Performance System batteries by Odyssey offers deeper cycle capabilities, a longer service life, and increased reliability compared to a conventional battery.
Manufactured using 99.99% pure lead flat plates, not lead-alloy like less expensive alternatives. The pure lead construction allows for thinner plates, so more plates inside the battery case. More plates equals more surface area, which translates into more power!
In addition, the batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain the acid. This allows the battery to be installed in almost any position. They are all built to stringent specifications and feature Robust Intercell Connections. This offers additional protection against the high impact shocks and vibrations that often cause premature battery failure.
Features:
- Faster Recharge
- Maintenance Free
- Vibration Resistant
- Extended Service Life
- Extreme Temperature Tolerance
Specifications:
- Group Size: 78
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1500A
- Cold Cranking Amps (CCA): 800A
- HCA: 1200A
- MCA: 1000A
- 20Hr Nominal Capacity (Ah): 65Ah
- 10Hr Nominal Capacity (Ah): 57Ah
- Reserve Capacity Minutes: 130 mins
- Terminal: Side
- Torque Spec in-lbs (Nm max): 60 (6.8)
- Internal Resistance (mΩ): 2.9 mΩ
- Short Circuit (A): 2400A
- Recommended Min. Charging Current (A): 5.7A
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140606
- Dimensions (in): 10.80" x 6.80" x 7.40" (terminals included)
- Weight (lbs): 47.1
The Group 78 battery size is commonly found in these vehicles:2001-2004 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LB7)
2004.5-2005 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LLY)
2006-2007 Chevy Silverado/GMC Sierra 2500HD/3500HD (6.6 Duramax LLY/LBZ)
1989-1993 Dodge D/W Truck (5.9 Diesel)
Dodge Application Note:
The Dodge D/W trucks came equipped
with either a Group 78 or
Group 27 battery from the factory depending on
configuration/options.
Please check and verify your battery group number before
ordering.
Note:
Due to a running change by Odyssey, the Performance Series Batteries will begin coming with a black top instead of red. During the transition period, you may receive black or red. If you prefer the old look of the red top, you can purchase the Extreme Series battery as they will remain unchanged.
