USD 666
Part #: ORL5769J-333

Oracle 5769J-333 7" ColorShift LED Headlights With 2.0 Controller

Vehicle Fitment:
2018-2023 Jeep Wrangler JL | See full application list below
Part #: ORL5769J-333
$666.00
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Complete Package for adding High-Performance 7" LED Headlights to your Wrangler JL/Gladiator JT without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. The Ultimate 7" LED replacement headlight option for the Wrangler JL/Gladiator JT. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JL/JT-specific "Plug and Play" connectors. You can even choose optional colored Halos for even more customization!

Latest Product Improvement
Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the LED halos.
Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

Product Features:
    (Per Light)
  • Low Beam Wattage: 30W Normal/36W Max
  • Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
  • High Beam Wattage: 40W Normal/48W Max
  • High Beam Lumens: 3600 Lumens/4800 Raw Lumens
  • Color Temperature: 6000K (Cool White Color)
  • Input Voltage of Light: 12-24V DC
  • Input Voltage of Halo (If Included): 12V DC
  • Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
  • Optional: ORACLE Halo Rings Pre-Installed
  • Premium Performance Phillips Luxeon ZES LEDs
  • Die-Cast Housing with Corrosion Resistant Coating
  • Heavy Duty Solid State Electronics
  • Hard-coated Polycarbonate Lens
  • Wide Beam Pattern with Sharp Cut-Off Line
  • Easy Plug & Play Installation
  • 2 Year Warranty
  • DOT and SAE Certified

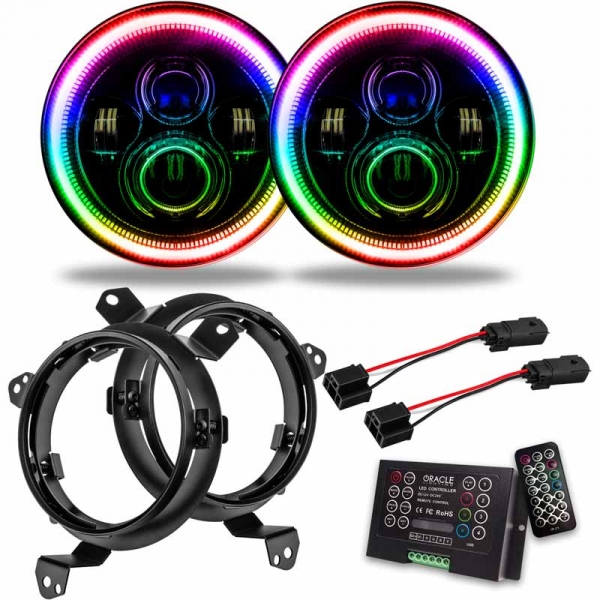

With ColorSHIFT Upgrade:
- 2 x ORACLE Lighting 7" High Performance LED Headlights (Pair)
- 1 x ORACLE Lighting ColorSHIFT Controller Module
- 1 x ORACLE Lighting ColorSHIFT Wireless Remote
- 2 x "Plug & Play" Wiring Adapters
- 2 x 7" Adjustable Headlight Brackets

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
2023 Jeep Gladiator
2024 Jeep Gladiator
2018 Jeep Wrangler
2019 Jeep Wrangler
2020 Jeep Wrangler
2021 Jeep Wrangler
2022 Jeep Wrangler
2023 Jeep Wrangler
2024 Jeep Wrangler

Specifications

  • MPN 5769J-333
  • SKU ORL5769J-333
  • GTIN 810030393009
  • ID 97154
  • Manufacturer Name Oracle
  • Shipping Weight 6.00 lb.
  • Shipping Length 16 in.
  • Shipping Width 10 in.
  • Shipping Height 5 in.
  • Fuel Type Diesel/Gas
  • Color Multi-Color
  • E-Code 1
  • Warranty Info 2 Year
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
