Part #: ORL9053-504

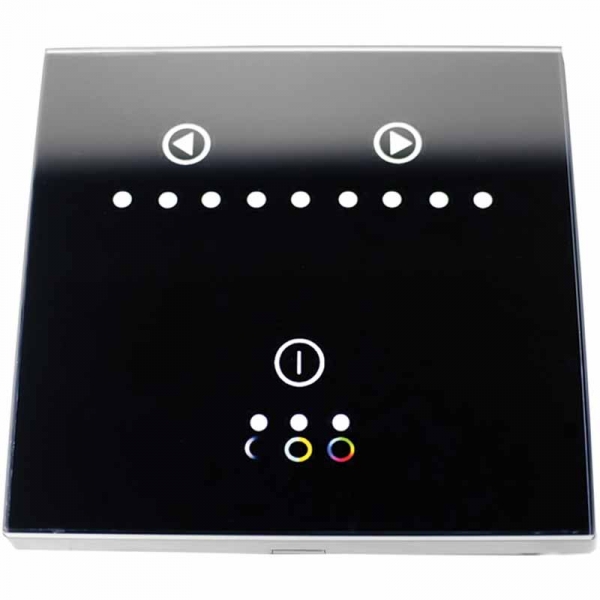

Oracle 9053-504 Smart Touch Multi Function LED Controller

Vehicle Fitment:
Universal - For Use With Various LED Lights
Part #: ORL9053-504
$93.56
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

Ground Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The ORACLE Touch Panel RGB DImmer is a newly developed high-end controller. It adopts a glass panel design, giving it a modern, sleek appearance. It has a high precision touch control chip, that increases touch sensitivity and reduces mistaken triggers. These control panels are specially used for controlling a variety of LED Lighting. For example like RGB Flex LED Lighting Strips, wall washer lights, panel lights, etc. Easy to connect, easy to use features such as jump changing, gradual changing, strobe, flash as well as other modes. Product Specs: Working Temperature: -4 - 140 F Supply Voltage: DC 12-24V Weight: 5.8 oz Dimensions: 3.3 x 3 3 x 1.4 Output: 3 Channel Output Current:4A (each channel) Connection Mode: Common Anode Output Power: 12V<144W, 24V<288w Static Power Consumption <1w Button Description: The Power Button: 1)A short press turns the controller on/off at any state. 2) A long press cycles between 3 different modes (shown by indicators). Indicator 1: Indicates that RGB mode is selected. Indicator 2: Indicates that color temperature mode is selected. Indicator 3: Indicates that dimmer mode is selected. The Left Arrow Button: is used to increase parameters (settings). The Right Arrow Button: is used to reduced parameters (settings). Function Instruction RGB Mode: A short press of the Left Arrow Button increases the mode within the RGB Function. A long press of the Left Arrow Button increases the brightness or speed. A short press of the Right Arrow Button reduces the mode. A long press of the Right Arrow Button reduces the brightness or speed. Mode Changes table: *Note* This table shows the outputs while testing on an ORACLE 2.0 RGB Flex strip. Functions may be different when using other types of RGB strips. Mode Changes table: The Left Arrow Key increases the mode. The Right Arrow Key reduces the mode. Function Instruction Dimmer Mode: Left Arrow Key increases the brightness Right Arrow Key reduces the brightness

Product Specs:
Working Temperature: -4 - 140 F
Supply Voltage: DC 12-24V
Weight: 5.8 oz
Dimensions: 3.3 x 3 3 x 1.4
Output: 3 Channel
Output Current:4A (each channel)
Connection Mode: Common Anode
Output Power: 12V<144W, 24V<288w Static Power Consumption <1w

Specifications

  • MPN 9053-504
  • SKU ORL9053-504
  • ID 97257
  • Manufacturer Name Oracle
  • Shipping Weight 1.00 lb.
  • Shipping Length 4 in.
  • Shipping Width 9 in.
  • Shipping Height 9 in.
  • Fuel Type Diesel/Gas
  • E-Code 1
  • Warranty Info 1 Year
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
