These clutches utilize ceramic buttons on both sides of the clutch disc and are aimed at the performance trucks. Driving manners are very performance oriented with no clutch slip, basically the clutch is in, or it is out. Great holding capacity for modified trucks, the only way you will get more holding power is to go to a Dual Disc Clutch setup. Ceramic is a very hard material so typically flywheel wear is more noticeable using a ceramic clutch than with other materials.
This clutch has a small window of usage, ideally suited to trucks with performance power modifications that do not intend to tow with their truck. If you plan on drag racing/ sled pulling or doing boosted launches you will need a Dual Disc Clutch. For use on NV4500 5-Speed Transmission.
12.25" x 1.25" Performance Replacement
HD Spring Hub
Rated @ 550HP / 1000 ft lbs Torque
3800# Pressure Plate

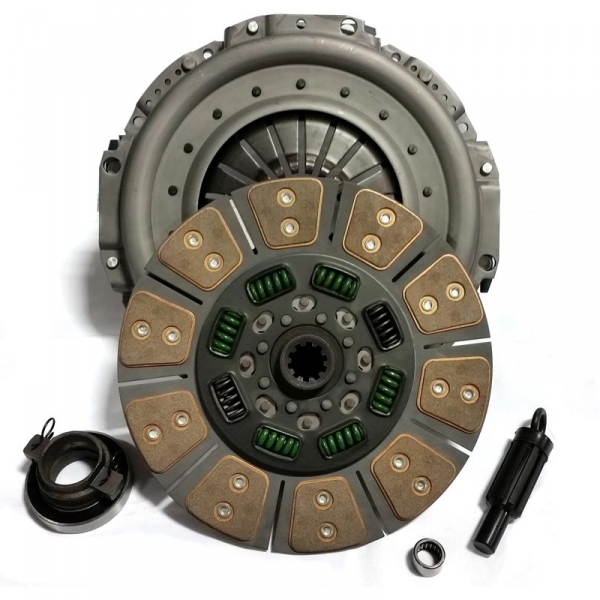

Kit includes: Pressure Plate, Clutch Disc, Release Bearing, Pilot Bearing and Alignment Tool.
Application Notes: All 12 valve trucks will need the center bore of the flywheel machined to a minimum of 7". All flywheels must be checked, we have seen some 24 valve trucks that have had the 12 valve flywheel.
|YEAR ||MAKE ||FOR ENGINE SERIES |
|1994 ||Dodge ||5.9L 12V Cummins |
|1995 ||Dodge ||5.9L 12V Cummins |
|1996 ||Dodge ||5.9L 12V Cummins |
|1997 ||Dodge ||5.9L 12V Cummins |
|1998 ||Dodge ||5.9L 12V Cummins |
|1998.5 ||Dodge ||5.9L 24V Cummins |
|1999 ||Dodge ||5.9L 24V Cummins |
|2000 ||Dodge ||5.9L 24V Cummins |
|2001 ||Dodge ||5.9L 24V Cummins |
|2002 ||Dodge ||5.9L 24V Cummins |
|2003 ||Dodge ||5.9L 24V Cummins |
