Part #: WPI200-91294

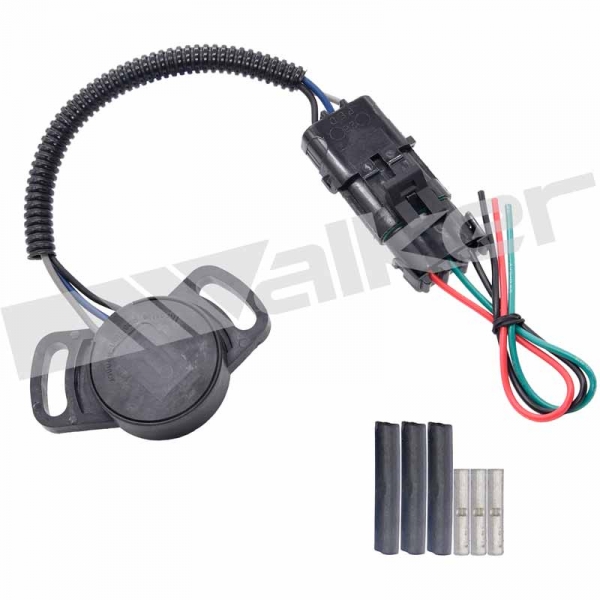

Walker 200-91294 Throttle Position (TPS) Sensor With Pigtail

Vehicle Fitment:
1984-1992 GM 6.2L Diesel | See full application list below
Part #: WPI200-91294
$265.64
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Replace the non-functioning TPS sensor in your 1984-1992 GM 6.2L Diesel with a Walker 200-91294 Throttle Position (TPS) Sensor With Pigtail from XDP. Throttle Position Sensors measure throttle position through changing voltage and send this information to the onboard computer. The computer uses this and other inputs to calculate the correct amount of fuel delivered. Over time wear on the internal mechanism of the senor can impede the sensors function and accuracy. In addition, the circuit board can also crack or lose electrical connection. Throttle position sensor failure can impact a vehicles fuel economy and performance. Common symptoms of a faulty TPS can include a vehicle that won't accelerate or lacks power when accelerating. Furthermore, the engine might not idle smoothly, idles too slowly or stalls, and can also illuminate the check engine light.

The repetition of extreme heat and cold, known as "heat cycling", breaks down internal circuitry in the sensor but also deteriorates the connector and harness. Other contaminants such as oil and road debris can also lead to connector and harness failures. When installing a Walker Products replacement sensor the mating connector and harness might also be inadvertently get damaged during the process as the plastic tabs often get brittle. A Walker Products full service kit offers a complete repair solution. The full-service kit contains not only the base sensor, but also provides the mating connector, pigtail, butt splices, and heat-shrink to ensure a watertight connection. Walker Products sensors are engineered using high-quality components and materials to ensure proper fit and response. Walker sensors are 100% tested for peak performance and worry-free operation. Walker is an ISO 9001/IATF16949 certified company and is committed to supplying the highest quality products.

Features:
  • Direct-Fit Replacement
  • 100% Engineered & Tested To OE Specs
  • Manufactured With The Highest Quality Materials
  • Includes Pigtail Connector, Butt Splices, & Heat Shrink

Vehicle Fitment

YEAR MAKE MODEL FOR ENGINE SERIES
1989 Chevrolet Blazer 6.2
1990 Chevrolet Blazer 6.2
1991 Chevrolet Blazer 6.2
1985 Chevrolet C10 Suburban 6.2
1988 Chevrolet C1500 6.2
1989 Chevrolet C1500 6.2
1990 Chevrolet C1500 6.2
1991 Chevrolet C1500 6.2
1992 Chevrolet C1500 6.2
1993 Chevrolet C1500 6.2
1989 Chevrolet C2500 6.2
1990 Chevrolet C2500 6.2
1991 Chevrolet C2500 6.2
1992 Chevrolet C2500 6.2
1988 Chevrolet C3500 6.2
1989 Chevrolet C3500 6.2
1990 Chevrolet C3500 6.2
1989 Chevrolet G20 6.2
1991 Chevrolet G20 6.2
1992 Chevrolet G20 6.2
1985 Chevrolet K10 Suburban 6.2
1988 Chevrolet K1500 6.2
1989 Chevrolet K1500 6.2
1990 Chevrolet K1500 6.2
1991 Chevrolet K1500 6.2
1992 Chevrolet K1500 6.2
1993 Chevrolet K1500 6.2
1989 Chevrolet K2500 6.2
1990 Chevrolet K2500 6.2
1991 Chevrolet K2500 6.2
1992 Chevrolet K2500 6.2
1988 Chevrolet K3500 6.2
1989 Chevrolet K3500 6.2
1990 Chevrolet K3500 6.2
1985 Chevrolet K5 Blazer 6.2
1984 Chevrolet P30 6.2
1988 Chevrolet R10 Suburban 6.2
1989 Chevrolet R1500 Suburban 6.2
1990 Chevrolet R1500 Suburban 6.2
1988 Chevrolet V10 Suburban 6.2
1989 Chevrolet V1500 Suburban 6.2
1990 Chevrolet V1500 Suburban 6.2
1991 Chevrolet V1500 Suburban 6.2
1985 GMC C1500 6.2
1986 GMC C1500 6.2
1989 GMC C1500 6.2
1990 GMC C1500 6.2
1991 GMC C1500 6.2
1992 GMC C1500 6.2
1993 GMC C1500 6.2
1985 GMC C1500 Suburban 6.2
1984 GMC C2500 6.2
1985 GMC C2500 6.2
1986 GMC C2500 6.2
1989 GMC C2500 6.2
1990 GMC C2500 6.2
1991 GMC C2500 6.2
1992 GMC C2500 6.2
1985 GMC C2500 Suburban 6.2
1984 GMC C3500 6.2
1985 GMC C3500 6.2
1986 GMC C3500 6.2
1988 GMC C3500 6.2
1989 GMC C3500 6.2
1990 GMC C3500 6.2
1985 GMC G2500 6.2
1988 GMC G2500 6.2
1989 GMC G2500 6.2
1990 GMC G2500 6.2
1992 GMC G2500 6.2
1986 GMC Jimmy 6.2
1990 GMC Jimmy 6.2
1984 GMC K1500 6.2
1985 GMC K1500 6.2
1989 GMC K1500 6.2
1990 GMC K1500 6.2
1991 GMC K1500 6.2
1992 GMC K1500 6.2
1993 GMC K1500 6.2
1985 GMC K1500 Suburban 6.2
1985 GMC K2500 6.2
1988 GMC K2500 6.2
1989 GMC K2500 6.2
1990 GMC K2500 6.2
1991 GMC K2500 6.2
1992 GMC K2500 6.2
1984 GMC K3500 6.2
1985 GMC K3500 6.2
1986 GMC K3500 6.2
1988 GMC K3500 6.2
1989 GMC K3500 6.2
1990 GMC K3500 6.2
1988 GMC R1500 Suburban 6.2
1989 GMC R1500 Suburban 6.2
1990 GMC R1500 Suburban 6.2
1991 GMC R1500 Suburban 6.2
1988 GMC V1500 Suburban 6.2
1989 GMC V1500 Suburban 6.2
1990 GMC V1500 Suburban 6.2
1991 GMC V1500 Suburban 6.2

Specifications

  • MPN 200-91294
  • SKU WPI200-91294
  • GTIN 724620069451
  • ID 129319
  • Manufacturer Name Walker Products
  • Shipping Weight 1.00 lb.
  • Shipping Length 7 in.
  • Shipping Width 7 in.
  • Shipping Height 2 in.
  • Fuel Type Diesel
  • E-Code 1
  • Warranty Info 90 Day Limited
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Cross Reference # 14071076
  • Internal L0R0
