USD 359.95
Part #: XD298

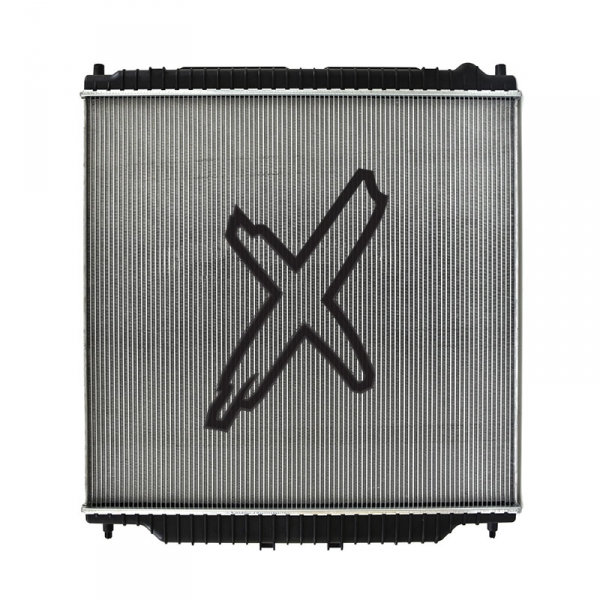

XDP X-TRA Cool Direct-Fit Replacement Radiator XD298
2003-2007 Ford 6.0L Powerstroke (Automatic Transmission)
★★★★★
Buy now, pay later using
during checkout.
during checkout.
Our Recommendations Compatible Products
Close Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details Description
Don't just re-install a factory radiator in your 2003-2007 Ford 6.0L Powerstroke, upgrade it with the XDP X-TRA Cool Direct-Fit Replacement Radiator XD298. XDP's X-TRA Cool Radiators may look like a factory replacement, but are far from it. Built for increased durability, X-TRA Cool Radiators are built using techniques borrowed from the HD and semi-truck industry to maximize cooling efficiency and strength while still giving you the best value.
High Efficiency Core
X-TRA Cool Radiators use a high efficiency core to maximize cooling potential. With more fins per inch and heavy-duty tubes, the X-TRA Cool Radiators increase cooling efficiency over your stock radiator.
Internally Reinforced
Built with an aluminum brazing technique, the X-TRA Cool Radiators have more internal strength due to reinforced end tubes and outside corners where the core is most vulnerable.
Gasket Design
A common failure item in most OE radiators, XDP's X-TRA Cool Radiators use a proprietary gasket to withstand front-end flex, along with expansion and contraction.
Revised End Tanks
A fiber reinforced plastic mix provides increased strength. In addition, reinforcement ribs are added to weak spots in the end tanks to increase longevity while eliminating common failure points.
Upgraded Mounting Points
To avoid broken mounts and provide a secure factory-style mounting, the X-TRA Cool Radiators have upgraded mounting points to maximize strength.
End Tank Attachment
X-TRA Cool Radiators are built using a heavy gauge steel crimp strip to join the end tanks to the core. The steel crimp strip increases strength over the aluminum strip used by the factory. It also helps eliminate core and tank separation issues many experience with the factory radiator.
Features:
- Direct-Fit
- Upgraded Design For Increased Durability
- High-Efficiency Core to Maximize Cooling
XD298 Specifications:
Row Quantity: 1
Core Width: 28-5/8"
Core Height: 29-7/8"
Core Thickness: 1-1/4"
Inlet Connection: 1-3/4"
Outlet Connection: 2"
Trans Oil Cooler: 1/2" Inv Flare Fittings
Includes: 1/2" Inv Flare Fittings & 1/2" Quick-Connect Adapters for Trans Oil Cooler.
Vehicle Applications
| YEAR | MAKE | ENGINE |
|---|---|---|
| 2003 | Ford | 6.0L Powerstroke |
| 2004 | Ford | 6.0L Powerstroke |
| 2005 | Ford | 6.0L Powerstroke |
| 2006 | Ford | 6.0L Powerstroke |
| 2007 | Ford | 6.0L Powerstroke |
Specifications
- MFG. Number XD298
- Manufacturer Name XDP
- Shipping Weight 25.00 lb.
- Shipping Length 33 in.
- Shipping Width 9 in.
- Shipping Height 38 in.
- Fuel Type Diesel
- UPC 856217008434
- Warranty Yes
- Warranty Info 1 Year / Unlimited Mileage
- Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov - Cross Reference # 6C3Z8005DA
- Internal L0.00R14.00
