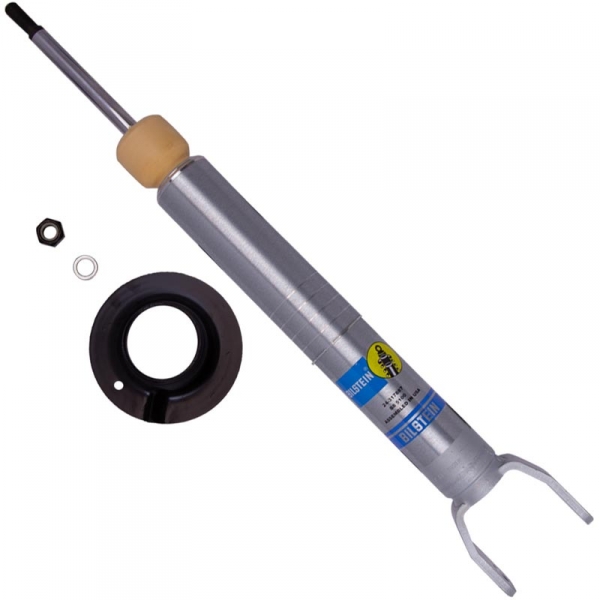

Bilstein 24-317887 B8 5100 Series Shock Absorber (Ride Height Adjustable)

Add the Bilstein 24-317887 5100 Series Shock Absorber from XDP and enhance the handling of your Dodge Ram 1500. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Specifications:
Part Number: 24-317887
Series: 5160 Series
Position: Front
Quantity Per Vehicle: 2 (Sold Individually)
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Spring Seat Included: Yes
Adjustable Damping: Non-Adjustable

Measurements:
Collapsed Length (IN): 15.12
Extended Length (IN): 21.46
Collapsed Length (MM): 384.0
Extended Length (MM): 545.2

Manufacturer Warranty*:
Limited Lifetime

Note: Front Lift Height: 0-2.8"; Without Air Leveling Suspension
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
