Part #: BL24-186742

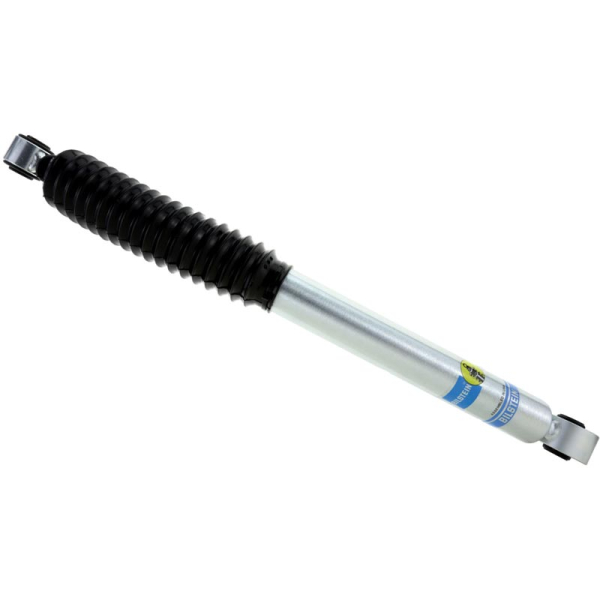

Bilstein 5100 Series Shock Absorber 24-186742
2001-2010 GM 2500/3500HD 4WD (Rear) Lifted 0"-1"
★★★★★
Buy now, pay later using
during checkout.
during checkout.
Our Recommendations
Compatible Products
Close
Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details
Description
Purchase the Bilstein 24-186742 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Specifications:
Part Number: 24-186742
Old Part Number: F4-BE5-D147-H0
Setting: 5100 Series
Drive Type: 4WD
Position: Rear
Front Spring Type: Torsion Bar
Quantity Needed Per Vehicle: 2 (Sold Separately)
Rear Spring Type: Leaf
Descriptor: Excludes vehicles equipped with Quadrasteer; Rear Lifted Height: 0-1"
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
Collapsed Length (IN): 16.14
Extended Length (IN): 26.15
Collapsed Length (MM): 410
Extended Length (MM): 664.2
Applications:
2001-2010 GM 2500/3500 HD (Non-Quadrasteer)
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.
Vehicle Applications
| YEAR | MAKE | ENGINE |
|---|---|---|
| 2001 | Chevy | 6.6L LB7 Duramax |
| 2002 | Chevy | 6.6L LB7 Duramax |
| 2003 | Chevy | 6.6L LB7 Duramax |
| 2004 | Chevy | 6.6L LB7 Duramax |
| 2004.5 | Chevy | 6.6L LLY Duramax |
| 2005 | Chevy | 6.6L LLY Duramax |
| 2006 | Chevy | 6.6L LLY/LBZ Duramax |
| 2007 | Chevy | 6.6L LLY/LBZ Duramax |
| 2007.5 | Chevy | 6.6L LMM Duramax |
| 2008 | Chevy | 6.6L LMM Duramax |
| 2009 | Chevy | 6.6L LMM Duramax |
| 2010 | Chevy | 6.6L LMM Duramax |
| 2001 | GMC | 6.6L LB7 Duramax |
| 2002 | GMC | 6.6L LB7 Duramax |
| 2003 | GMC | 6.6L LB7 Duramax |
| 2004 | GMC | 6.6L LB7 Duramax |
| 2004.5 | GMC | 6.6L LLY Duramax |
| 2005 | GMC | 6.6L LLY Duramax |
| 2006 | GMC | 6.6L LLY/LBZ Duramax |
| 2007 | GMC | 6.6L LLY/LBZ Duramax |
| 2007.5 | GMC | 6.6L LMM Duramax |
| 2008 | GMC | 6.6L LMM Duramax |
| 2009 | GMC | 6.6L LMM Duramax |
| 2010 | GMC | 6.6L LMM Duramax |
| 2001 | Chevy | Gas |
| 2002 | Chevy | Gas |
| 2003 | Chevy | Gas |
| 2004 | Chevy | Gas |
| 2004.5 | Chevy | Gas |
| 2005 | Chevy | Gas |
| 2006 | Chevy | Gas |
| 2007 | Chevy | Gas |
| 2007.5 | Chevy | Gas |
| 2008 | Chevy | Gas |
| 2009 | Chevy | Gas |
| 2010 | Chevy | Gas |
| 2001 | GMC | Gas |
| 2002 | GMC | Gas |
| 2003 | GMC | Gas |
| 2004 | GMC | Gas |
| 2004.5 | GMC | Gas |
| 2005 | GMC | Gas |
| 2006 | GMC | Gas |
| 2007 | GMC | Gas |
| 2007.5 | GMC | Gas |
| 2008 | GMC | Gas |
| 2009 | GMC | Gas |
| 2010 | GMC | Gas |
Specifications
- MFG. Number 24-186742
- Manufacturer Name Bilstein
- Shipping Weight 5.00 lb.
- Shipping Length 27 in.
- Shipping Width 3 in.
- Shipping Height 3 in.
- Fuel Type Diesel / Gas
- Position Rear
- UPC 651860565484
- Warranty Yes
- Warranty Info Limited Lifetime
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Internal L20.00R12.00
Frequently Bought Together
Reviews
★★★★★
4.0/5 Stars out of 2 Reviews
0
0
1
0
1
Paul P. (San Jose,Ca) | January 1st, 2021
Very impressed at how much better the ride quality felt after initial install.
The reason I’m only giving three stars is because a week after install, they started feeling just as bad as the old worn out stock shocks. Unfortunately for me I am outside of the return window, so not much I can do.
Regardless of my issues, I would still recommend these shocks.
Ryan k (Peabody Massachusetts) | November 16th, 2020
Very impressed with the ride quality and construction for the price, got rid of the floating/bouncing feeling of the tired factory Chevy shocks.
Write a Review
Questions and Answers
I have a stock 06 duramax. If I install the Bilstein 5100 shocks front and back can I go to bigger tires. $$
View Staff Answer
Answer
Aftermarket shock absorbers will not raise the vehicle. In order to run larger tires you will have to either level or lift the truck.
Leveling Kits: http://www.xtremediesel.com/leveling-...
Lift Kits: http://www.xtremediesel.com/lift-kits...
Aftermarket shock absorbers will not raise the vehicle. In order to run larger tires you will have to either level or lift the truck.
Leveling Kits: http://www.xtremediesel.com/leveling-...
Lift Kits: http://www.xtremediesel.com/lift-kits...
I have an 02 duramax. It has an add a leaf and measures 24 1/2 extended. Are these the right ones?
View Staff Answer
Answer
For an 01-10 GM 2500/3500HD 4WD truck with a 4" lift, you would require this Bilstein Shock found HERE.
Bilstein 24-186742:
Collapsed Length (IN) : 16.14
Extended Length (IN) : 26.15
For an 01-10 GM 2500/3500HD 4WD truck with a 4" lift, you would require this Bilstein Shock found HERE.
Bilstein 24-186742:
Collapsed Length (IN) : 16.14
Extended Length (IN) : 26.15
