USD 110
Part #: BL24-218030

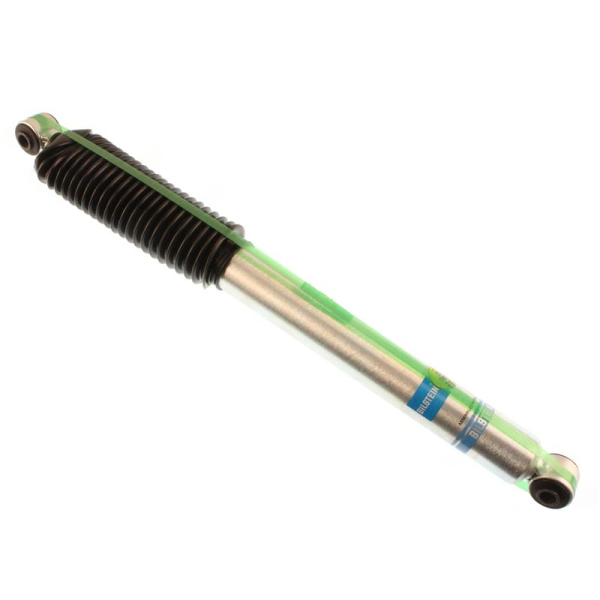

Bilstein 5100 Series Shock Absorber 24-218030

Vehicle Fitment:
2011-2023 GM 2500/3500HD 4WD (Rear) Lifted 3"-4"
Part #: BL24-218030
★★★★★ ★★★★★ 1 Reviews
$110.00
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The Bilstein 5100 Series Shock Absorber 24-196468 are designed specifically to help your 2011-2023 GM 2500HD/3500HD Pickup reach its pinnacle in ride performance, while supplying the correct length shock for your specific lift. A 5100 Series equipped vehicle offers a much more controlled ride compared to the competitors lifted vehicle shocks, allowing you to maintain a similar feeling of comfort and control you have with a stock vehicle. Since Bilstein has already spent the time doing the fitment and tuning for your specific vehicle, utilizing the 5100 Series Shock Absorbers takes the guess work out of buying shocks for a lifted vehicle. These 5100 Series Shock Absorbers are the best way to guarantee you will always get the correct product for your lifted vehicle.

Specifications:
Setting: 5100 Series
Position: Rear
Descriptor: Rear Lifted Height: 3-4"
Quantity Needed Per Vehicle: 2
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

Measurements:
Collapsed Length (IN): 18.17
Extended Length (IN): 29.92
Collapsed Length (MM): 461.5
Extended Length (MM): 29.92

Applications:
2011-2023 Chevrolet Silverado 2500HD/3500HD
2011-2023 GMC Sierra 2500HD/3500HD

*Note: Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
2011 Chevy 6.6L LML Duramax
2012 Chevy 6.6L LML Duramax
2013 Chevy 6.6L LML Duramax
2014 Chevy 6.6L LML Duramax
2015 Chevy 6.6L LML Duramax
2016 Chevy 6.6L LML Duramax
2017 Chevy 6.6L L5P Duramax
2018 Chevy 6.6L L5P Duramax
2019 Chevy 6.6L L5P Duramax
2020 Chevy 6.6L L5P Duramax
2021 Chevy 6.6L L5P Duramax
2022 Chevy 6.6L L5P Duramax
2023 Chevy 6.6L L5P Duramax
2011 GMC 6.6L LML Duramax
2012 GMC 6.6L LML Duramax
2013 GMC 6.6L LML Duramax
2014 GMC 6.6L LML Duramax
2015 GMC 6.6L LML Duramax
2016 GMC 6.6L LML Duramax
2017 GMC 6.6L L5P Duramax
2018 GMC 6.6L L5P Duramax
2019 GMC 6.6L L5P Duramax
2020 GMC 6.6L L5P Duramax
2021 GMC 6.6L L5P Duramax
2022 GMC 6.6L L5P Duramax
2023 GMC 6.6L L5P Duramax
2011 Chevy Gas
2012 Chevy Gas
2013 Chevy Gas
2014 Chevy Gas
2015 Chevy Gas
2016 Chevy Gas
2017 Chevy Gas
2018 Chevy Gas
2019 Chevy Gas
2020 Chevy Gas
2021 Chevy Gas
2022 Chevy Gas
2023 Chevy Gas
2011 GMC Gas
2012 GMC Gas
2013 GMC Gas
2014 GMC Gas
2015 GMC Gas
2016 GMC Gas
2017 GMC Gas
2018 GMC Gas
2019 GMC Gas
2020 GMC Gas
2021 GMC Gas
2022 GMC Gas
2023 GMC Gas

Specifications

  • MFG. Number 24-218030
  • Manufacturer Name Bilstein
  • Shipping Weight 5.00 lb.
  • Shipping Length 27 in.
  • Shipping Width 3 in.
  • Shipping Height 3 in.
  • Fuel Type Diesel / Gas
  • Position Rear
  • UPC 651860697086
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L8.00R7.00

Reviews

★★★★★ ★★★★★
5.0/5 Stars out of 1 Reviews
1
0
2
0
3
0
4
0
5
1
Verified Buyer
Fast, Accurate, and Quality - Order #1765589
5
I’ve ordered a few things now from XDP Diesel and the service is always outstanding, just like it was ordering these Bilstein 5100 Rear Shocks for my 2012 GMC Sierra 2500. Had to flare out the truck flanges some to accept the wider shock ends. After some persuasion though, they worked like a charm. Nice improvement over the old warn out ones. Thanks XDP!

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

1999 F250 4x4 with SDT 3.5 leaf pack in front & 2 in. spacer in back Will these 5100 series fit or what do you recommend?
View Staff Answer
Answer
You will need to measure the extended and collapsed lengths of your current shock and compare them to the specifications of this shock to make sure they will work for your application.
