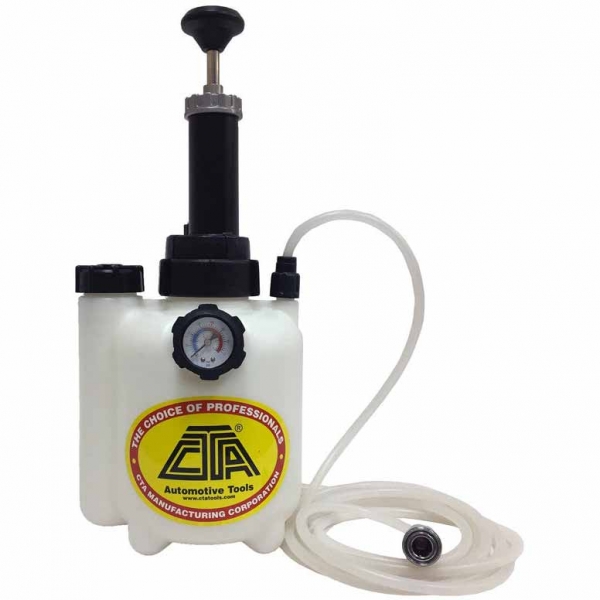

CTA Tools 7015 Pressure Brake Bleeder

The CTA Tools 7015 Pressure Brake Bleeder from XDP is the quality tool you need to get the job done. Having the right tools in your box saves you money and time. CTA builds their tools to high-quality standards for a long and durable service life. Find a large inventory of products from CTA Tools, which are excellent for the at-home enthusiast, or professional technician. Make vehicle repairs and routine maintenance easier with the specialty tools offered by CTA Tools.

Features:

• Quality Construction
• Specialty Automotive Tools
• Backed By Over 40 Years Of Tool Experience

Note: Creates pressure to push brake fluid through the system
3 liter capacity tank with pressure release valve
Filling hone with screw cap
0-70 PSI gauge range, but Do Not Exceed 45 PSI
Updated:10' hose with Nitto quick-disconnect coupler for long reach!
7015X05: Replacement 10' Hose Assembly
Safety Caution: Brake fluid is corrosive. When fluid spills, use water to flush away immediately.

Filling Procedure


1. Make sure no pressure remains inside the unit. Pressure can be release from the release valve by the side of the pump.

2. Remove new fluid cap on top of the unit and fill the unit with new brake fluid. Make sure no remaining old fluid or debris in the tank.


Operating Instruction


1. Select suitable adaptor from the selection provided with the unit. Install adaptor to the master cylinder of the brake system.

2. Pump handle of the unit until reach recommended bleeding pressure. Open brake nipple and connect to suitable bleeding container. Once seeing the new fluid coming into the container, close the nipple. Repeat process on all 4 wheels (in any order).

3. Once the process is complete, release the pressure by pressing down the release valve by the side of the pump. After releasing, disconnect fluid supply hose with adaptor on the master cylinder.

Note: Do not disconnect the adaptor before releasing the pressure.

4. If necessary, adjust brake fluid level in the master cylinder. Replace the master cylinder cap on the vehicle.

5. Dispose waste brake fluid in bleeding container safely.

Safety Caution: After each service, air pressure must be released via pressure release valve (1).
