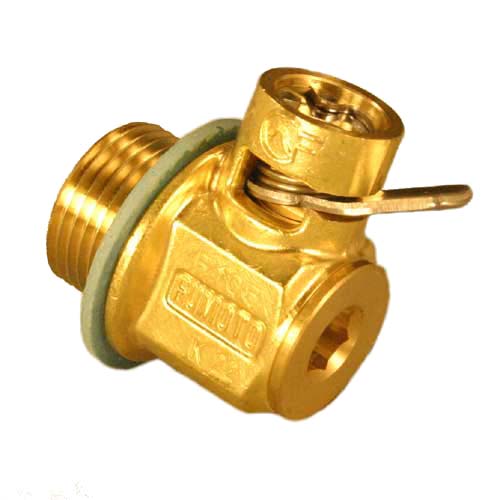

Introducing the best way to change oil, the Engine Oil Drain Valve. Install this valve and you can drain your engine oil without tools and without mess. Just lift the lever of this solid brass ball valve and give it a quarter turn to open it. Return the lever to its original position and it locks closed, double sealed to prevent leakage. The Engine Oil Drain Valve is made of corrosion resistant forged brass and stainless steel. The ball valve design provides a straight flow for efficient drainage and a perfect seal when closed. Frozen drain plug and stripped threads are eliminated forever. Drawing samples for oil analysis is as easy as one-two-three. Sizes to fit all cars, light trucks vans heavy-duty trucks and buses. Also fits RVs, marine engines and industrial equipment.
The Engine Oil Drain Valve has been tested and granted "Genuine Parts" status by 6 major motor vehicle manufacturers in Japan, including Toyota, Nissan, Mazda, Mitsubishi, Subaru and Isuzu. These approvals were not granted easily and gaining them was a testimony to the quality and durability of Engine Oil Drain Valve. In the United States, the Engine Oil Drain Valve is being installed at the factory level on some of the vehicles/equipment made by Ford, Kohler, Freightliner, Caterpillar, JLG, GEHL, Ingersoll-Rand, Sullair, Toyota, Case, Magnetek, Timberjack, Lincoln Electric, Vermeer, Baldor, Terex, Deutz, Phaser Marine Generator and etc.
- Remove original drain plug and drain oil into acceptable receptacle.
- Insert Engine Oil Drain Valve with gasket* and tighten. Do not over tighten.
- Make sure valve is closed and refill crankcase.
N-Series Valve: Unlike the standard Engine Oil Drain Valve which was designed for automobile and truck applications, the N-SERIES valve is equipped with a Nipple to enable the operator to attach a hose and drain the engine oil out of tight spots and away where access to the plug itself and resulting mess are often problems. Like the standard Engine Oil Drain Valve, this spring assisted ball valve replace standard oil drain plug making oil changes easier and saving valuable time. Also ideal for oil sampling analysis as a small amount of oil can be drawn without shutting off the engine. The N-SERIES Engine Oil Drain Valve takes the mess out of routine maintenance on industrial engines. "N-SERIES" valves are not recommended for cars with low ground clearance. If more ground clearance is desired, the Short Nipple Valve only has a 5mm nipple making it a better choice.
For users under extreme conditions:
If you are using the Engine Oil Drain Valve on off-road vehicles such as farm tractors and logging equipment under extreme environment (i.e. corn fields, brush areas), it is recommended that a hose clip as shown below be used for extra safety and security. The hose clip, which can be purchased at any hardware stores, will firmly keep the lever in the locked position at all times.
Fumoto Engineering of America offers a LIFE TIME WARRANTY on its product, against faulty workmanship and/or material to the original purchaser (with proof of purchase). For any defective product, Fumoto Engineering of America will replace the product at no charge. Fumoto Engineering of America will also indemnify any consequential damages to the engine/vehicle which are directly caused by the defective product. This warranty does not cover any damages due to misuse, abuse, negligence or accident. This warranty is valid only in the United States and Canada.
Thread Size: PF-3/8
