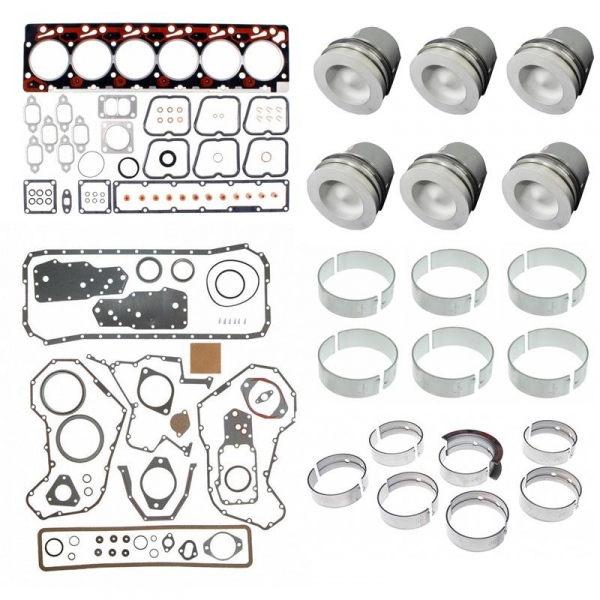

MAHLE Engine Overhaul Kit 409-1025

PART# 409-1025 | SKU MCI409-1025

0 Reviews | Write the First Review

Vehicle Fitment:
12-Valve Diesel 5.9L (See Description For CPL#) | See full application list below

Unavailable

FREE Delivery by ,

If you order within hr min

This product cannot be shipped to your destination

Not Shipping to ?

Need it faster?

Free Shipping
Over $99

$5 Pricebeat
Guarantee

Our Recommendations Compatible Products

{{:: product.name }}

Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}

{{:: product.name }}

{{:: product.customfield_values.customfields.short_desc }}

Application Detail:

Fuel: Diesel
Engine: 6BTA5.9 (Turbocharged-Aftercooled)
Series: B

CPL Number: 1549, 1550, 1815, 1816, 1863, 1901, 1959, 1968, 2022, 2023, 2174, 2265, 2268, 2292, 2308, 2346, 2349

Contents:

Rebore Kit Assembly	Part #
Piston	224-3520
Ring Set, Chrome	S41518

Connecting Rod Bearing (Qty.6)	Material: TM-112
Min. Std. Shaft Diameter	2.7160IN - 68.9864MM
Max. Std. Shaft Diameter	2.7170IN - 69.0118MM
Min. Vert. Oil Clearance	0.0015IN - 0.0381MM
Max. Vert. Oil Clearance	0.0045IN - 0.1143MM
Max. Wall	0.0775IN - 1.9685MM
Min. Brg. O.D. or Housing Bore	2.8735IN - 72.9869MM
Max. Brg. O.D. or Housing Bore	2.8745IN - 73.0123MM
Max. Length	1.2250IN - 31.1150MM

Main Bearing Set#	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2672IN - 82.9869MM	3.2672IN - 82.9869MM
Max. Std. Shaft Diameter	3.2682IN - 83.0123MM	3.2682IN - 83.0123MM
Min. Vert. Oil Clearance	0.0017IN - 0.0432MM	0.0017IN - 0.0432MM
Max. Vert. Oil Clearance	0.0047IN - 0.1194MM	0.0047IN - 0.1194MM
Max. Wall	0.0970IN - 2.4638MM	0.0970IN - 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4638IN - 87.9805MM	3.4638IN - 87.9805MM
Max. Brg. O.D. or Housing Bore	3.4652IN - 88.0161MM	3.4652IN - 88.0161MM
Max. Length	1.1430IN - 29.0322MM	1.4700IN - 37.3380MM

Head Set	HS4068
Automotive Item Grade	OEM Standard Part
Material	Solicor
Sealant	RTV/Sealants Not Required
Torque To Yield	Yes
Package Contents	May Contain Miscellaneous Gaskets & Seals

Lower Set	CS4068
Automotive Item Grade	OEM Standard Part
Package Contents	May Contain Miscellaneous Gaskets & Seals

Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.

MPN 409-1025
SKU MCI409-1025
ID 16246
Manufacturer Name MAHLE
Shipping Weight 15.00 lb.
Shipping Length 50 in.
Shipping Width 24 in.
Shipping Height 10 in.
Fuel Type Diesel
Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Internal L0R0

No Reviews Yet!

Is this a complete re-seal kit? And would I be able to exchange head gaskets if I need a thicker one?

View Staff Answer

Answer

The MAHLE B SERIES OVERHAUL KIT 409-1025 is a complete overhaul kit that will include all top and bottom end gaskets required when performing an engine overhaul.
