Part #: SYN8515-12

Synergy 8515-12 Heavy-Duty Sway Bar End Links (For 6" Lift)

Vehicle Fitment:
1998.5-2013 Dodge Ram 2500/3500 4WD | See full application list below
Part #: SYN8515-12
$200.00
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Upgrade the sway bar links on your 1998.5-2013 Dodge Ram 2500/3500 4WD with the Synergy 8515-12 Heavy-Duty Sway Bar End Links (For 6" Lift) from XDP. Sway bar links are a point of contact between the sway bar and the trucks suspension to help minimize body roll. The Synergy Ram Heavy Duty Sway Bar Links are much stronger than the stock alternative. They feature greaseable spherical bushings allow resistance-free articulation of the sway bar links and 30 degrees of bind free misalignment.


Features:
  • Available For 3.5-6" Lifts
  • Much Stronger Than Stock
  • Drastically Reduces Body Roll
  • Constructed From High Quality 1020 CR Solid
  • Clear Zinc Plated For Maximum Corrosion Resistance
  • Spherical Bushing Provides 30 Degrees Of Bind Free Mis-Alignment
  • Spherical Bushing And Sealed Tie Rod End Provides A Direct Linkage To Axle
  • Stem Top Adapter Eliminates The Problematic Factory "Pancake" Bushing On The Sway Bar End
  • 100% Bolt On Components Assures An Easy, Trouble-Free Installation With The Use Of Basic Hand Tools**
  • Made In USA

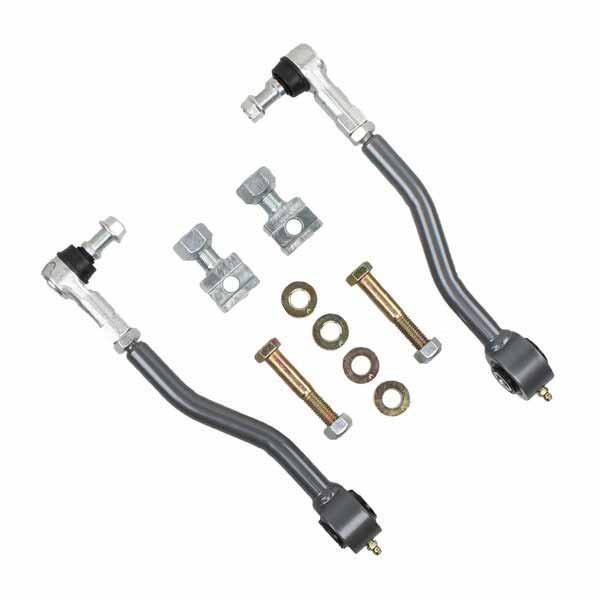

8515-12 Heavy-Duty Sway Bar End Links Include:
(2) 8515 Sway Bar Links
(2) Sway Bar Link Ends (sealed tie rod ends)
(2) 1/2"-12 UNC Jam Nuts
(2) 851501 Stem Top Sway Bar Link Adapter
(2) 5/8"-18 Tapered Nuts
(2) 1/2"-12 UNC x 3.0" Long Hex Head Bolt GR8
(2) 1/2"-12 UNC Stover Nut
(4) 1/2" Flat Washer GR8

Min/Max Length:
Measured in a straight line from center of bolt hole to center of bolt hole
Minimum Collapsed: 10 7/16"
Maximum Extended: 11 3/8"

Notes:
Model year 1994-2002 trucks require Synergy Heavy Duty Steering Kit 8525-02 and 8525-03 to be installed for the Sway Bar End link to properly clear the steering linkage.
For the 8515-11 Heavy Duty Sway Bar Links to be used on a 1998-2002 Ram, part number 4006-01 must be used.
**Some early model trucks require minor drilling on axle mount for installation

Applications:
1998.5-2013 Dodge Ram 2500 4WD
1998.5-2013.5 Dodge Ram 3500 4WD
2006-2008 Dodge Ram 1500 Mega Cab 4WD

Note: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages

Specifications

  • MPN 8515-12
  • SKU SYN8515-12
  • GTIN 887753145536
  • ID 129262
  • Manufacturer Name Synergy
  • Shipping Weight 5.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 10 in.
  • Shipping Height 8 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0R0
