Part #: AFE46-60100

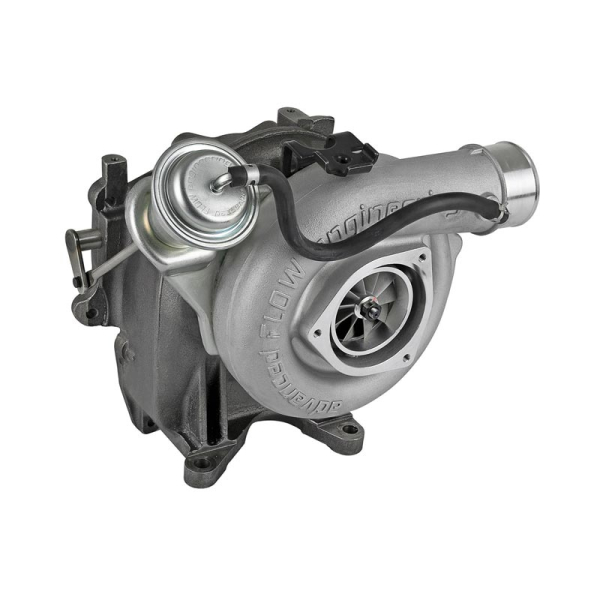

AFE 46-60100 BladeRunner Street Series Turbocharger

2001-2004 GM 6.6L Duramax LB7
Part #: AFE46-60100
$997.50
Quickships by next business day
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The AFE 46-60100 BladeRunner Street Series Turbocharger for your 2001-2004 GM 6.6L Duramax LB7 is the perfect solution to replacing your factory turbocharger. Designed to be a bolt-in replacement, the AFE BladeRunner has been dyno tested to increase horsepower, without the need for additional fueling!

Compressor:
The A356 aluminum housing utilizes OE inlet and outlet connections.

Turbine:
The one-piece ductile iron turbine housing will bolt to OE and aftermarket inlet and outlet connections.

Direct Replacement:

This turbo can be installed on 2001-2004 V8-6.6L (td) LB7 and is a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved with fuel system upgrades.

Turbo Specifications:
Compressor Inducer - 60.6mm
Compressor Exducer - 81.9mm
Compressor Blades - 10
Turbine Inducer - 67.8mm
Turbine Exducer - 62.0mm
Turbine Blades - 11

Features:

  • In house testing produced a max gain of +14 horsepower and +36lbs. x ft. of torque, verified by our in house dyno
  • Stock Replacement with no core charge
  • A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
  • Additional fueling is not required
  • Wastegate actuator is included, comes preset to factory specifications
  • 2-Year Warranty

Specifications

  • MFG. Number 46-60100
  • Manufacturer Name AFE
  • Shipping Weight 45.00 lb.
  • Shipping Length 12 in.
  • Shipping Width 14 in.
  • Shipping Height 14 in.
  • UPC 802959462249

Reviews

Be the first to rate this item!

Write Review

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

Max boost??
View Staff Answer
Answer

AFE has not defined a max boost pressure for the 46-60100 BladeRunner Street Series Turbocharger.

Whats the ml of the Turbo?
View Staff Answer
Answer

Turbo Specifications:

Compressor Inducer - 60.6mm

Compressor Exducer - 81.9mm

Compressor Blades - 10

Turbine Inducer - 67.8mm

Turbine Exducer - 62.0mm

Turbine Blades - 11

My 03 Duramax has a little blue smoke after pulling my trailer. Does this turbo kit come with all gaskets for install?
View Staff Answer
Answer
Gaskets are not included with this turbo.
Emissions Notice

This product is not legal for sale or street use in California. Certain aftermarket products are subject to governmental emission standards regulated by the California Air Resources Board. In order for these products to be legal on a specific vehicle in California, the part number must receive a CARB Executive Order (EO) number. This number makes the part legal for use only on specific years, makes and models of vehicles. A decal with CARB EO number for these parts must be displayed in the engine bay to satisfy smog inspection requirements.
