USD 412.34
Part #: AFE46-70122-1

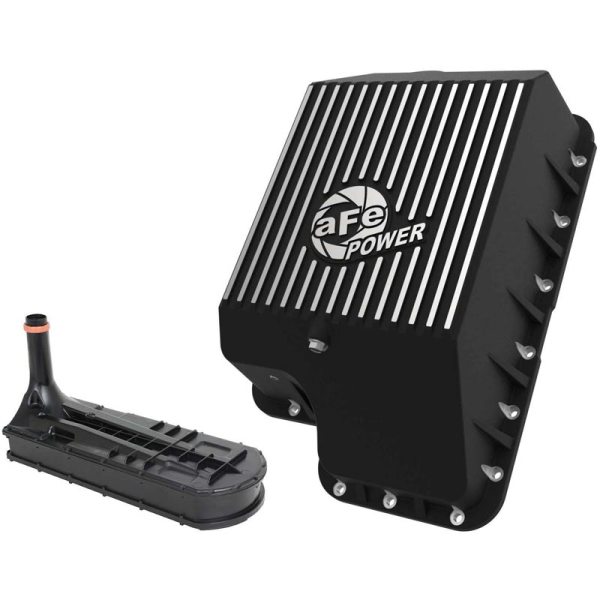

AFE 46-70122-1 Deep Transmission Pan (Black & Machined)

1994-2010 Ford 7.3L/6.0L/6.4L Powerstroke (Equipped With E4OD/4R100/5R110)
Part #: AFE46-70122-1
★★★★★ ★★★★★ 2 Reviews
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

An Email Will Be Sent With Expected Shipping Date After Purchase

Our Recommendations Compatible Products
Scroll to View More


The AFE 46-70122-1 Deep Transmission Pan (Black & Machined) for your 1994-2010 Ford 7.3L/6.0L/6.4L Powerstroke equipped with an E4OD, 4R100, or 5R110 brings performance engineering and protection to your truck's transmission. This transmission pan has additional capacity for 7.5 more quarts over stock. Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling.

The transmission pan is constructed out of durable die-cast A380 aluminum with reinforced ribs and a wrinkle black powder-coating with machined fins for maximum strength and styling. When it comes to engineering for power, performance, protection and value, aFe Power is the only choice.

Internal and External Fins: Internal and external fins transfer heat from the fluid to the ambient air for maximum cooling.

Magnetic Drain Plug: This system incorporates a large neodymium magnetic drain plug that captures loose particles for maximum transmission protection and can be tightened using a 1/2" square socket drive.

1/8" NPT Port: Threaded 1/8" NPT port comes ready to use for your transmission temperature sensor.

Hassle-Free Installation: Transmission pan comes complete with all necesssary hardware and o-ring to bolt directly to factory location for a hassle-free installation.

  • Black & Machined Finish
  • 7.5 Quarts Over Stock
  • Internal & External Fins
  • Die-Cast A380 Aluminum
  • Includes Transmission Pan Filter

Vehicle Applications

1994 Ford 7.3L Powerstroke
1995 Ford 7.3L Powerstroke
1996 Ford 7.3L Powerstroke
1997 Ford 7.3L Powerstroke
1999 Ford 7.3L Powerstroke
2000 Ford 7.3L Powerstroke
2001 Ford 7.3L Powerstroke
2002 Ford 7.3L Powerstroke
2003 Ford 6.0L Powerstroke
2003 Ford 7.3L Powerstroke
2004 Ford 6.0L Powerstroke
2005 Ford 6.0L Powerstroke
2006 Ford 6.0L Powerstroke
2007 Ford 6.0L Powerstroke
2008 Ford 6.4L Powerstroke
2009 Ford 6.4L Powerstroke
2010 Ford 6.4L Powerstroke


  • MFG. Number 46-70122-1
  • Manufacturer Name AFE
  • Shipping Weight 17.00 lb.
  • Shipping Length 17 in.
  • Shipping Width 13 in.
  • Shipping Height 7 in.
  • Fuel Type Diesel
  • UPC 802959464359
  • Warranty Yes
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal L0.00R0.00


★★★★★ ★★★★★
4.0/5 Stars out of 2 Reviews
Been Rocking for Years Now and Love it!
I've had this pan on 2001 7.3 for about 8 years now I Dig it so much that I was on here thinking about buying another one for my New OBS 7.3. So my 2001 weighs 11,500lbs always got her loaded up with gear on 38x15.5r20 tires, shes a big heavy girl and with this pan & my 6.0 Mishimoto Cooler driving around all day my trans chills at 160*, and on a hot day towing may be at most 180*. Quick story I even busted my front driveshaft out 4-wheeling, I kept on the throttle getting over a big obstacle I could hear that driveshaft swinging around like a wrecking ball, it wacked the pan a handful of times, and afterward it just got a couple of little dings on it but it took those hits like a champ and didn't break or leak so I was impressed with the cast aluminum strength.
AFE Trans cover
Product itself is beatifully machined. O-ring shipped with product is twisted and cannot be flattened properly. The M8x1.125 by 20mm screws shipped with the product are too short. We installed all the screws by hand, then started the torque process and the second screw stripped the aluminum transmission housing. WTF isn't this an Engineered solution?? Had to go find longer screws on McMaster Carr and 2 days delay. Hopefully we will not have to helicoil the trans housing to finish the install. It was a mistake to spend this much money for what I thought would be a nice way to increase transmission fluid quantity.
