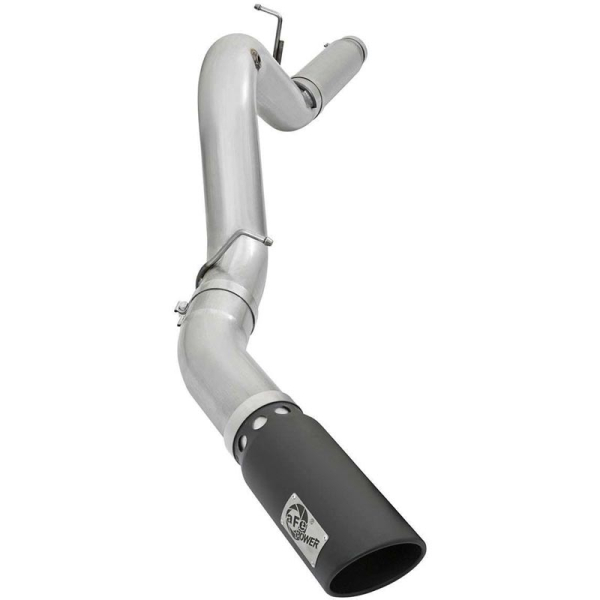

AFE 49-04081 ATLAS 5" Filter-Back Exhaust System

2016-2017 GM 6.6L Duramax (Fits Crew & Extended Cabs with NOX Sensor)
Part #:
FROM 454.09
Our Recommendations Compatible Products
Scroll to View More


Add style and flow to your 2016-2017 GM 6.6L Duramax with the AFE 49-04081 ATLAS 5" Filter-Back Exhaust System. This system is constructed from 5" mandrel-bent aluminized steel tubing and uses high quality band clamps and OE-style bayonet hangers. This unit uses all factory mounting locations to provide a quick, hassle-free installation. Also included in this exhaust system is your choice of a massive 6" diameter, polished or black powdercoated 304 stainless steel tip with a laser-cut stainless steel aFe power badge. ATLAS exhaust systems are the perfect combination of performance, fit and value. All aFe exhaust systems are engineered and manufactured in their Corona, California manufacturing facility.

Simple Installation:
All systems use factory mounting locations providing stability and hassle-free installation.

Leak-Free Seal:
High quality band clamps are included for a complete 360 degree sealing surface.

OE Fit:
OE-style bayonet hangers are used to maintain a stable pipe location during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an OE style fit that does not change with time.

Flow and Performance:
This ATLAS exhaust system is constructed of 5" mandrel-bent aluminized steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering EGTs.

6" Diameter Polished Intercooled Tip:
Finishing off the exhaust is a 6" diameter, high luster polished, stainless steel slash cut tip with intercooling vents designed to reduce exhaust gas temperatures at the tailpipe. A unique stainless steel laser-cut aFe Power logo plate is riveted on for an aggressive style.


  • 5" Filter-Back Exhaust
  • Fits Models With NOX Sensor
  • Mandrel Bent Aluminized Steel
  • Your Choice Of Black Or Polished Exhaust Tip
  • Fits All Crew & Extended Cab Applications
Note: This exhaust system is intended for use on models with the NOX Sensor. Cutting is required for some cab configurations. All Crew & Extended Cab fitment applies to 2500HD/3500HD Pickups. This system is not intended for use on Cab & Chassis models.

Extended Cab/Short Bed, 6.6ft Bed, 143.5 Wheelbase
Crew Cab/Short Bed, 6.6ft Bed, 153.7 Wheelbase
Extended Cab/Long Bed, 8ft Bed, 158.1 Wheelbase
Crew Cab/Long Bed, 8ft Bed, 167.7 Wheelbase

Product Options:
Black Exhaust Tip - 49-04081-B
Polished Exhaust Tip - 49-04081-P


  • Manufacturer Name AFE
  • Shipping Weight 34.00 lb.
  • Shipping Length 49 in.
  • Shipping Width 13 in.
  • Shipping Height 23 in.
  • Warranty Yes
  • Warranty Info 2 Year
  • Prop 65 WARNING: Cancer & Reproductive Harm -
