USD 373.8
Part #: AIR88105

Air Lift 88105 Load Lifter 5000 Ultimate Helper Spring Kit

1970-1995 GM G-20/30 Van & G-30 Class "C" Motorhome | 1971-1994 Dodge B100/200/300 Van & B-350 Class "C" Motorhome | 1971-2003 Dodge Van (See Applications)
Part #: AIR88105
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

Our Recommendations Compatible Products
Scroll to View More


The Air Lift 88105 Load Lifter 5000 Ultimate Helper Spring Kit for the rear of your 1970-1995 GM G-20/30 Van & G-30 Class "C" Motorhome, 1971-1994 Dodge B100/200/300 Van & B-350 Class "C" Motorhome, or 1971-2003 Dodge Van  features all the benefits of the LoadLifter 5000 with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort.

The LoadLifter 5000 ULTIMATE works with your vehicles leaf springs to provide up to 5,000 lbs. of front load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. The built-in closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE!

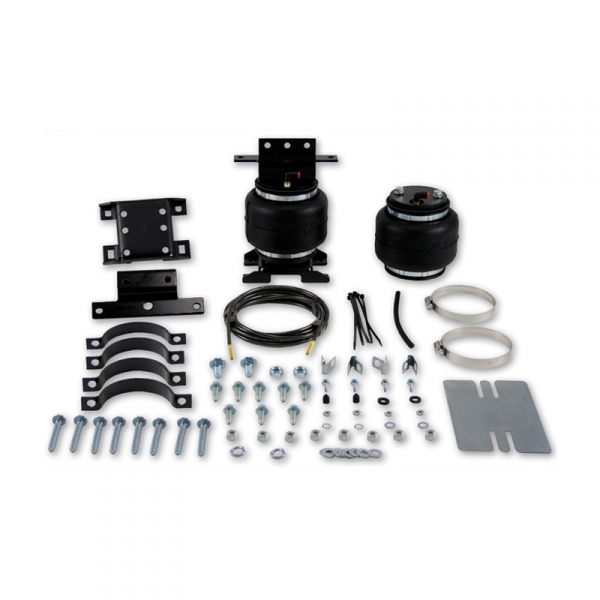

The Air Lift Air springs are built like a tire and are reinforced by durable,2-ply fabric for maximum strength. Exclusive upper and lower roll plates are included which protect the springs from sharp edges, such as brackets or the frame and help increase load capacity up to 10%. Includes 2 air springs, mounting brackets, air lines, schrader valve, hardware and instructions.

  • Built-In Internal Jounce Bumper
  • Air Adjustable From 0 To 100 PSI
  • Up To 5,000lbs Of Leveling Capacity
  • Quick Connecting, Easy-To-Use Air Fittings
  • Includes Roll Plates To Protect The Air Springs
  • Built Like A Tire & Reinforced w/ 2-Ply Fabric For Maximum Strength
1970-1995 GM G-20/G-30 Van G-30 Class "C" Chassis Motorhome
1971-1994 Dodge B100/200/300 Van & B-350 Class "C" Chassis Motorhome
1995-1998 Dodge B1500/2500/3500 Van
1999-2003 Dodge Ram 1500/2500/3500 Van

Vehicle Applications

1982 Chevy 6.2L Non-Duramax
1983 Chevy 6.2L Non-Duramax
1984 Chevy 6.2L Non-Duramax
1985 Chevy 6.2L Non-Duramax
1986 Chevy 6.2L Non-Duramax
1987 Chevy 6.2L Non-Duramax
1988 Chevy 6.2L Non-Duramax
1989 Chevy 6.2L Non-Duramax
1990 Chevy 6.2L Non-Duramax
1991 Chevy 6.2L Non-Duramax
1992 Chevy 6.2L Non-Duramax
1993 Chevy 6.2L Non-Duramax
1994 Chevy 6.5L Non-Duramax
1995 Chevy 6.5L Non-Duramax
1982 GMC 6.2L Non-Duramax
1983 GMC 6.2L Non-Duramax
1984 GMC 6.2L Non-Duramax
1985 GMC 6.2L Non-Duramax
1986 GMC 6.2L Non-Duramax
1987 GMC 6.2L Non-Duramax
1988 GMC 6.2L Non-Duramax
1989 GMC 6.2L Non-Duramax
1990 GMC 6.2L Non-Duramax
1991 GMC 6.2L Non-Duramax
1992 GMC 6.2L Non-Duramax
1993 GMC 6.2L Non-Duramax
1994 GMC 6.5L Non-Duramax
1995 GMC 6.5L Non-Duramax
1982 Motorhome View All
1983 Motorhome View All
1984 Motorhome View All
1985 Motorhome View All
1986 Motorhome View All
1987 Motorhome View All
1988 Motorhome View All
1989 Motorhome View All
1990 Motorhome View All
1991 Motorhome View All
1992 Motorhome View All
1993 Motorhome View All
1994 Motorhome View All
1995 Motorhome View All


  • MFG. Number 88105
  • Manufacturer Name Air Lift
  • Shipping Weight 19.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 15 in.
  • Shipping Height 11 in.
  • Fuel Type Diesel
  • UPC 729199881053
  • Warranty Yes
  • Warranty Info Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal L0R0
