645.74
Part #: ARP250-4201

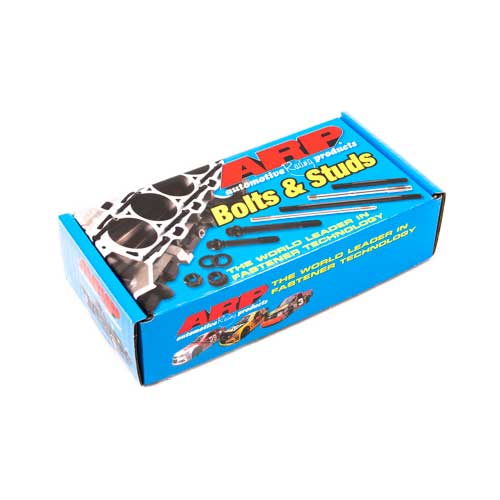

ARP 250-4201 Diesel Head Stud Kit
1994-2003 Ford 7.3L Powerstroke
★★★★★
Buy now, pay later using
during checkout.
during checkout.
Our Recommendations
Compatible Products
Close
Part #: {{:: (product.sku == undefined) ? product.code : product.sku }}
{{:: product.customfield_values.customfields.short_desc }}
View Details
Description
To overcome head gasket failures that can occur in diesel engines
employed in truck and RV applications, industry leader ARP has
introduced extra heavy-duty head studs for the popular Ford, Dodge and
GM powerplants. These ARP studs are rated at 220,000 psi tensile
strength, and provide the clamping force required to keep cylinder heads
from lifting due to higher combustion pressures.
The studs are manufactured in ARP's Santa Paula, CA plant from proprietary ARP 2000 material, with threads rolled after heat-treat to provide optimum fatigue strength. They are centerless ground to assure perfect concentricity. The ends of the studs are broached to facilitate easy installation. This feature also enables the cylinder head to be removed in tight quarters. Also included in each kit are heat-treated, chrome-moly steel 12-point nuts and parallel-ground washers. They are black oxide finished for extra durability.
The studs are manufactured in ARP's Santa Paula, CA plant from proprietary ARP 2000 material, with threads rolled after heat-treat to provide optimum fatigue strength. They are centerless ground to assure perfect concentricity. The ends of the studs are broached to facilitate easy installation. This feature also enables the cylinder head to be removed in tight quarters. Also included in each kit are heat-treated, chrome-moly steel 12-point nuts and parallel-ground washers. They are black oxide finished for extra durability.
Features:
- ARP 2000 Material
- 220,000 PSI Tensile Strength
- Chrome-moly Steel, 12-Point Nuts
- Parallel-Ground Washers
Vehicle Applications
| YEAR | MAKE | ENGINE |
|---|---|---|
| 1994 | Ford | 7.3L Powerstroke |
| 1995 | Ford | 7.3L Powerstroke |
| 1996 | Ford | 7.3L Powerstroke |
| 1997 | Ford | 7.3L Powerstroke |
| 1999 | Ford | 7.3L Powerstroke |
| 2000 | Ford | 7.3L Powerstroke |
| 2001 | Ford | 7.3L Powerstroke |
| 2002 | Ford | 7.3L Powerstroke |
| 2003 | Ford | 7.3L Powerstroke |
Specifications
- MFG. Number 250-4201
- Manufacturer Name ARP
- Shipping Weight 13.00 lb.
- Shipping Length 11 in.
- Shipping Width 8 in.
- Shipping Height 3 in.
- Fuel Type Diesel
- UPC 672036031008
-
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
- Cross Reference # 3013HS
- Internal L25.00R6.00
