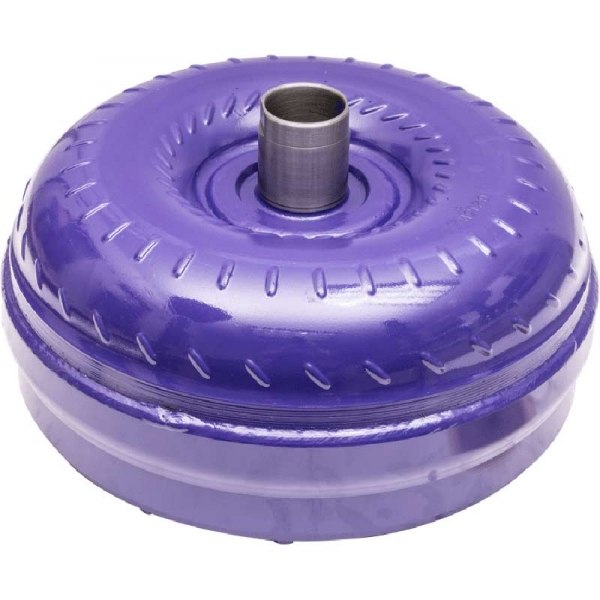

ATS 3029503326 Five Star Torque Converter
PART#
302-950-3326 | SKU ATS3029503326
Vehicle Fitment For:
2008-2010 Ford 6.4L Powerstroke 5R110 (1300-1500 RPM, Requires ATS Flex Plate)
See full application list below
$1,509.99
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The ATS 3029503326 Five Star Torque Converter for your 2008-2010 Ford 6.4L Powerstroke is designed to handle daily driving and towing duties while delivering improved vehicle response and reliable performance. Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS' Five Star Torque Converter.
The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Features:
- 1300-1500 RPM Stall Speed
- Patented Viskus Clutch Drive System for increased efficiency
- Billet Cover with Patented Square Flank Drive
- Square Tab Construction (Not Round)
- Viskus Disc CNC Laser Cut Clutch Plates
- Billet Piston with Patented Flank Drive Tab design
- Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
- Redesigned Spring Dampener supports increased torque loads
- 4340 hardened turbine splines provide longevity and reliability
- Fully welded turbine and impeller vanes
- CNC Stator with high flow windows increase oil flow, providing increased efficiency
- Full roller bearing construction between high load areas
- 4340 CNC cut pump drive hub locked into impeller housing
- Plasma welded for unsurpassed strength
Application Note:
This torque converter requires the use of an ATS Billet Flex Plate or other Flex Plate with a 6 or 12-bolt design.
This torque converter requires the use of an ATS Billet Flex Plate or other Flex Plate with a 6 or 12-bolt design.
Reviews For ATS Diesel 302-950-3326
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
What is viskus
The Viskus Clutch Drive, along with the fluid-coupling portion of the torque converter, share in the increase of transfer of power through the torque converter. Unlike other torque converters that rely only on fluid transfer from the impeller to the turbine via the stator, the Five Star™ utilizes ATS's Viskus Clutch Drive technology that transfers rotational energy from the engine to the transmission. This "Fluid Assist" technology developed by ATS helps transmit energy to the transmission in conjunction with the fluid-coupling section of the torque converter. This "Fluid Assist" technology results in less stress being placed on the torque converter while simultaneously enhancing the fluid coupling of the torque converter making it more efficient. This added efficiency means less mechanical energy is turned into heat and less heat means that more power is transferred to the transmission.
At low speeds the Viskus Clutch Drive design has more effect on power transfer allowing for optimal stall speed. As the engine to transmission RPM differential speed is increased the efficiency of the torque converter increases. When the transmission input speed is near equal to engine speed, fluid is reversed through the Viskus Clutch Drive. The reversal of fluid is commanded by the factory computer or an external lock-up controller such as the Co-Pilot™. This fluid reversal compresses the five clutch plates providing a 100% mechanical engagement ensuring no plate slippage during lock-up even at power levels in excess of 2000 foot pounds of torque.
Optimal stall speed, maximum torque multiplication and 100% efficiency is now possible with the innovation of the ATS Five Star™ Viskus Clutch Drive torque converter. Simply put, the Five Star™ Torque Converters efficient design equates to higher fuel economy, better performance and unsurpassed reliability.
At low speeds the Viskus Clutch Drive design has more effect on power transfer allowing for optimal stall speed. As the engine to transmission RPM differential speed is increased the efficiency of the torque converter increases. When the transmission input speed is near equal to engine speed, fluid is reversed through the Viskus Clutch Drive. The reversal of fluid is commanded by the factory computer or an external lock-up controller such as the Co-Pilot™. This fluid reversal compresses the five clutch plates providing a 100% mechanical engagement ensuring no plate slippage during lock-up even at power levels in excess of 2000 foot pounds of torque.
Optimal stall speed, maximum torque multiplication and 100% efficiency is now possible with the innovation of the ATS Five Star™ Viskus Clutch Drive torque converter. Simply put, the Five Star™ Torque Converters efficient design equates to higher fuel economy, better performance and unsurpassed reliability.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For ATS Diesel 302-950-3326
MPN
302-950-3326
SKU
ATS3029503326
GTIN
840440599821
ID
9064
Manufacturer Name
ATS Diesel
Shipping Weight
69.00 lb.
Shipping Length
15 in.
Shipping Width
11 in.
Shipping Height
15 in.
Fuel Type
Diesel
Manufacturer Warranty*
5 Year / 500,000 Miles
