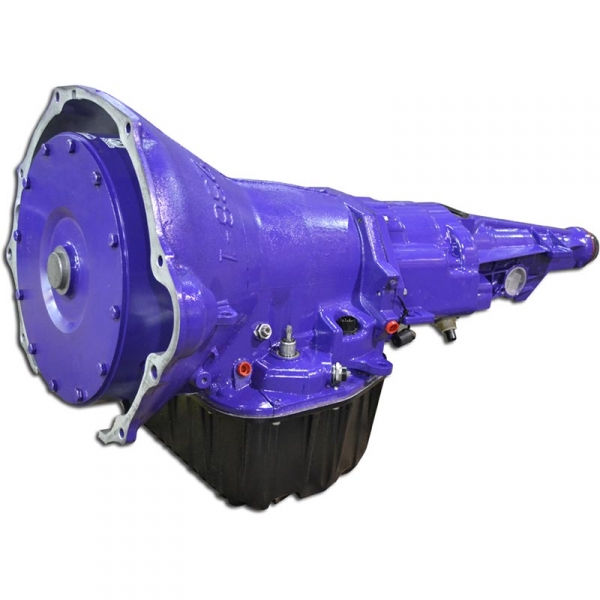

ATS Built 48RE Transmission Package

Vehicle Fitment:
2004.5-2007 Dodge 5.9L Diesel | See full application list below
Part #:
FROM 4643.63
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: Unavailable

Step 01 / 05
Accept Core Charge * VIEW CORE RETURN POLICY *
Accept a pre-paid shipping label for your core return.
Prev
Next
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The 48RE transmission is the weakest point on a Dodge Ram truck. Not only do they fail on trucks with minor upgrades, but even trucks in stock form have been known to be too powerful. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes to work, or high-horsepower applications. That's why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.

With the many shortcomings of the 48RE, none are more important than the clutch packs. This is what takes the power load and transmits it to the rear wheels. We increase the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs which allow much higher torque capacity in each gear. Clutch material is also essential which is why we use Borg Warner and Raybestos clutches which has both high torque strength as well as longevity and reliability.

Another important aspect is the hard parts on the transmission. The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor, allowing more precision application of the band. Along with the factory plastic accumulator piston is replaced with a billet unit as well. The apply lever is a 1:5.0 ratio apply arm, which applies the red lining band. This band features a performance friction material capable of holding higher power levels.

The valve body receives extensive modifications as well. We give the valve body the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machine the TV valve passage and install our proprietary TV valve sleeve, and increase line pressure. You can choose between a towing or a racing valve body. The towing version will deliver smooth, quick, crisp shifts that enhance the drivability and operation of your transmission on the street and attached to a trailer. This is the valve body of choice for a street driven all-purpose truck. The race valve body is our hardcore power build. It is made to sacrifice as little time as possible between shifts, shift hard and fast, and leave nothing behind. It is a very aggressive valve body and a minimum of billet input shaft and flex plate are recommended.

Features:
  • New performance forward clutch pack and steels with 1 added friction
  • New performance direct clutch pack and steels with 1 added friction
  • New performance overdrive brake clutch pack and steels with 1 added friction
  • New performance overdrive clutch pack and steels
  • Low/reverse band replaced with Borg Warner Red Lining performance band
  • Intermediate/2nd gear band replaced with Borg Warner Red Lining performance band
  • 1:5.0 band apply lever
  • Billet Band strut
  • Billet accumulator piston
  • Precision machined forward pressure plate (machined step)
  • Precision machined lower forward pressure plate (machined flat)
  • Precision machined overdrive brake pressure plate (machined flat)
  • New direct pressure plate
  • Performance low/reverse one-way clutch
  • Machined TV valve sleeve (prevents sticking TV valve)
  • Ability to achieve 1st and 2nd gear lockup
  • Ability to circulate fluid to the torque converter in park/reverse/neutral
  • Increase line pressure
  • Improve shift quality and firmness
  • Gasket and seal overhaul kit
  • Bearings and bushing

Stage 1 Transmission
The Stage 1 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
Stage 2 Transmission
On the Stage 2 build, ATS adds a billet 300m input shaft and forward hub. Featuring a two-piece design, the input shaft is designed to withstand greater than stock power, torque converter lock-up sooner than stock, increased towing weight and racing applications. The increased capacity comes from the material itself, which is stronger than the factory input shaft. This is coupled with a precisely engineered shaft, directed at absorbing torsional loads from increased power, and transferring it into the transmission.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
Stage 3 Transmission
In addition, we include the ATS CoPilot Lock-Up Controller on this package. This controller allows the user to base lock-up on vehicle speed. Torque converter lock-up can be moved to 1st, 2nd, 3rd gear or overdrive and can be changed at any time. Our controller features in-cab adjustability, so settings can be changed with the push of a button. Every time the vehicle reaches the set speed, the converter locks. The benefit of early lock-up is reduced transmission temperatures, quicker acceleration and better fuel economy.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS CoPilot Torque Converter Lock-Up Controller
Stage 4 Transmission
For added strength at power levels above 450 hp, the ATS billet flex plate is included on the Stage 4. The flex plate is first hard part in the transfer of power from the motor to the torque converter/transmission. As more power over stock is added, the OEM flex plate fails to hold and eventually cracks or breaks. This means the loss of all motion in the vehicle. ATS billet flex plate features a stronger material than stock, precisely machined surface for a perfect fit, and the peace of mind needed to handle power and towing weight.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS CoPilot Torque Converter Lock-Up Controller
  • ATS Billet Flex Plate
Stage 5 Transmission
Under extreme power or race applications, the stock intermediate shaft becomes a liability. The Stage 5 utilizes a billet intermediate shaft to absorb and transfer extreme power through the transmission. This shaft, arguably, is the most important since an intermediate shaft failure will result in complete transmission failure.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS CoPilot Torque Converter Lock-Up Controller
  • ATS Billet Flex Plate
  • ATS Billet Intermediate Shaft
Stage 6 Transmission
Going one step further, we also address the transmission output shaft and transfer case headgear. During boosted launches, or when towing substantial weight, the transmission output shaft and/or transfer case headgear can shear. ATS precisely machines the shafts from billet 300M and matches both pieces to each other. This ensures shock load is absorbed and transferred from the rear of the transmission to the transfer case.
  • ATS Built 48-RE Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS CoPilot Torque Converter Lock-Up Controller
  • ATS Billet Flex Plate
  • ATS Billet Intermediate Shaft
  • ATS Billet Output Shaft
Build Date Guide For Stage 1&2:
2004.5-2005 Package: Fits trucks built from Feb-2004 to Jul-2005
2006-2007 Package: Fits trucks built from Aug-2005 to Jan-2007

Build Date Guide For Stage 3 & Up (w/ Co-Pilot):
2004.5-2005 Package: Fits trucks built from Aug-2003 to Jul-2005
2006 Package: Fits trucks built from Aug-2005 to Apr-2006
2006.5-2007 Package: Fits trucks built from May-2006 to Jan-2007

Warranty Information:
This ATS Automatic Transmission carries a FIVE YEAR/FIVE HUNDRED THOUSAND MILE (5 yr/500,000 mile) Warranty. This Warranty shall not apply to any automatic transmission that has been improperly stored or installed This Warranty shall not apply to misapplication, improper operating conditions, accidents, or neglect. This Warranty shall not apply to an automatic transmission that has been improperly repaired, maintained and/or altered by the owner or his agent/tech. Most importantly, all transmission shafts are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft. ATS’ Automatic Transmission Warranty is NOT transferable. It is mandatory for implementation of this warranty that line pressures are tested at time of install. ATS will not pay for any fluids replaced in the event of a transmission failure.

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
2004.5 Dodge 5.9L 24V Cummins
2005 Dodge 5.9L 24V Cummins
2006 Dodge 5.9L 24V Cummins
2007 Dodge 5.9L 24V Cummins

Product Options

PART NUMBER CONFIGURATION
309-912-2290 04.5-05 Stage 1 w/ T.V. Motor (2WD)
309-912-2308 06-07 Stage 1 (2WD)
309-914-2290 04.5-05 Stage 1 w/ T.V. Motor (4WD)
309-914-2308 06-07 Stage 1 (4WD)
309-922-2290 04.5-05 Stage 2 w/ T.V. Motor (2WD)
309-924-2290 04.5-05 Stage 2 w/ T.V. Motor (4WD)
309-924-2308 06-07 Stage 2 (4WD)
309-932-2290 04.5-05 Stage 3 w/ T.V. Motor (2WD)
309-932-2308 2006 Stage 3 (2WD)
309-932-2317 06.5-07 Stage 3 (2WD)
309-934-2290 04.5-05 Stage 3 w/ T.V. Motor (4WD)
309-934-2308 2006 Stage 3 (4WD)
309-934-2317 06.5-07 Stage 3 (4WD)
309-942-2290 04.5-05 Stage 4 w/ T.V. Motor (2WD)
309-942-2308 2006 Stage 4 (2WD)
309-942-2317 06.5-07 Stage 4 (2WD)
309-944-2290 04.5-05 Stage 4 w/ T.V. Motor (4WD)
309-944-2308 2006 Stage 4 (4WD)
309-944-2317 06.5-07 Stage 4 (4WD)
309-952-2290 04.5-05 Stage 5 w/ T.V. Motor (2WD)
309-952-2308 2006 Stage 5 (2WD)
309-952-2317 06.5-07 Stage 5 (2WD)
309-954-2290 04.5-05 Stage 5 w/ T.V. Motor (4WD)
309-954-2308 2006 Stage 5 (4WD)
309-954-2317 06.5-07 Stage 5 (4WD)
309-964-2317 06.5-07 Stage 6 (4WD)
309-964-2308 2006 Stage 6 (4WD)
309-964-2290 04.5-05 Stage 6 w/ T.V. Motor (4WD)

Specifications

  • ID 18424
  • Manufacturer Name ATS Diesel
  • Shipping Weight 500.00 lb.
  • Fuel Type Diesel
  • Warranty Info 5 Year / 500,000 Miles
    View Warranty Form
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal LR

Reviews

No Reviews Yet!

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

The might be a stupid question but does it come with a new torque converter
View Staff Answer
Answer

Yes, the ATS BUILT 48RE TRANSMISSION PACKAGE will include an ATS 5 Star Torque Converter.
