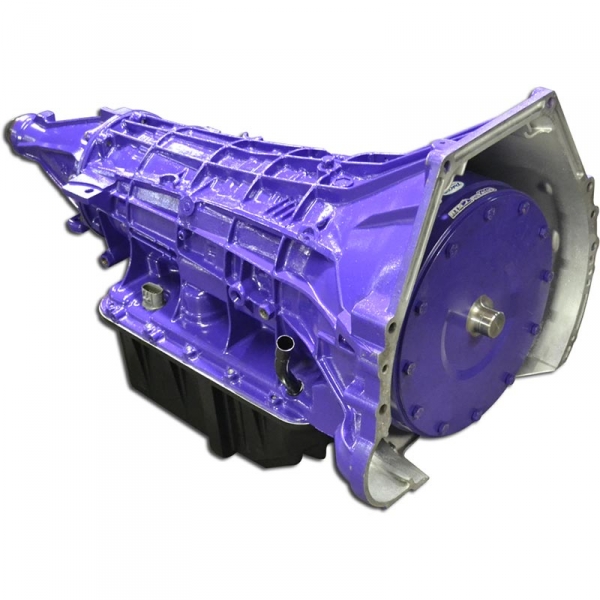

ATS Built 5R110 Transmission Package

2003-2007 Ford 6.0L Powerstroke
Part #:
★★★★★ ★★★★★ 1 Reviews
FROM 4826.33
Buy now, pay later using Affirm Logo during checkout.
Ships directly from the manufacturer

An Email Will Be Sent With Expected Shipping Date After Purchase

Step 01 / 05
Accept Core Charge * VIEW CORE RETURN POLICY *
Accept a pre-paid shipping label for your core return.
Our Recommendations Compatible Products
Scroll to View More


Upgrade the 5R110  transmission in your 2003-2007 Ford 6.0L Powerstroke with the ATS Built 5R110 Transmission. Innovation and technology set ATS apart from the rest. Between their engineering team, and their transmission specialists, ATS has logged thousands of hours in building, testing, and manufacturing to bring you the best transmission worth of bolting up behind your legendary Powerstroke engine. ATS transmissions include extensive modifications so you can put power to the ground whether you're towing, daily driving, or on the race track. Backed by the ATS 5-year, 500,000 mile warranty, this transmission comes ready to install and is dyno tested before shipping.

ATS 5R110 Build (All Stages)
  • Upgraded Pump - Machined housing for larger and higher quality components for better fluid flow
  • Shimmed PR Valve - Maintains higher line pressures
  • 5 Forward GPZ Clutches
  • 5 Intermediate GPZ Clutches
  • 5 Overdrive GPZ Clutches
  • 6 Direct GPZ Clutches
  • Custom Machined Clutch Pack Apply Plates
  • Teflon Seal Rings
  • Custom Machined Direct Drum & Upgraded Bushing
  • New OEM Center Support
  • New OEM Speed Sensors
  • All Bushings & Bearings Replaced
  • All New Gaskets & Seals
  • All New Filter
  • Modified Solenoids
Stage 1 Transmission Package:
  • ATS Built 5R110 Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
Stage 2 Transmission Package:
  • ATS Built 5R110 Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
Stage 3 Transmission Package:
  • ATS Built 5R110 Auto Trans
  • ATS 5 Star Viskus Clutch Drive Torque Converter
  • ATS Extra Deep Transmission Pan
  • ATS Billet Input Shaft
  • ATS Billet Flex Plate
Build Date Guide: 2003-2007 Transmission: Trucks built from Feb-2003 to Jan-2007
Note: All ATS Transmission Packages come standard with a 5-Year / 500,000 mile warranty

Warranty Information:
This ATS Automatic Transmission carries a FIVE YEAR/FIVE HUNDRED THOUSAND MILE (5 yr/500,000 mile) Warranty. This Warranty shall not apply to any automatic transmission that has been improperly stored or installed This Warranty shall not apply to misapplication, improper operating conditions, accidents, or neglect. This Warranty shall not apply to an automatic transmission that has been improperly repaired, maintained and/or altered by the owner or his agent/tech. Most importantly, all transmission shafts are not covered by this Warranty on any transmission due to the capability of certain situations to cause stress-loads beyond the structural ability of the shaft. ATS’ Automatic Transmission Warranty is NOT transferable. It is mandatory for implementation of this warranty that line pressures are tested at time of install. ATS will not pay for any fluids replaced in the event of a transmission failure.

Vehicle Applications

2003 Ford 6.0L Powerstroke
2004 Ford 6.0L Powerstroke
2005 Ford 6.0L Powerstroke
2006 Ford 6.0L Powerstroke
2007 Ford 6.0L Powerstroke

Product Options

309-912-3278 03-07 Stage 1 (2WD)
309-913-3278 03-07 Stage 1 (2WD) w/ PTO
309-914-3278 03-07 Stage 1 (4WD)
309-915-3278 03-07 Stage 1 (4WD) w/ PTO
309-922-3278 03-07 Stage 2 (2WD)
309-923-3278 03-07 Stage 2 (2WD) w/ PTO
309-924-3278 03-07 Stage 2 (4WD)
309-925-3278 03-07 Stage 2 (4WD) w/ PTO
309-932-3278 03-07 Stage 3 (2WD)
309-933-3278 03-07 Stage 3 (2WD) w/ PTO
309-934-3278 03-07 Stage 3 (4WD)
309-935-3278 03-07 Stage 3 (4WD) w/ PTO


  • Manufacturer Name ATS Diesel
  • Shipping Weight 500.00 lb.
  • Fuel Type Diesel
  • Warranty Yes
  • Warranty Info 5 Year / 500,000 Miles
    View Warranty Form
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal LR


★★★★★ ★★★★★
5.0/5 Stars out of 1 Reviews
Verified Buyer
Good trans

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

what brand clutch packs do you use? I want to know what the best clutch packs are for high horse power and towing applications...
View Staff Answer

To best answer your question we request that more personalized questions requiring further details on a person’s application be directed to one of our Diesel Experts. Experts are available via E-mail (), Phone (1-888-343-7354) or LiveChat (Found on the bottom right hand corner of our website). This allows XDP to offer you a more personalized response to your question as well as an open channel for further questions and conversation.

I was wondering how the warranty works? Do you guys have to install it for the warranty to be good or can I install it or can I have a shop install it? Also assuming I have it installed and I have something with the transmission go wrong, do have to send it back to you for warranty work??
View Staff Answer
Here are all of the details on ATS's Warranty Click Here!
