USD 149.95
Part #: AM6035

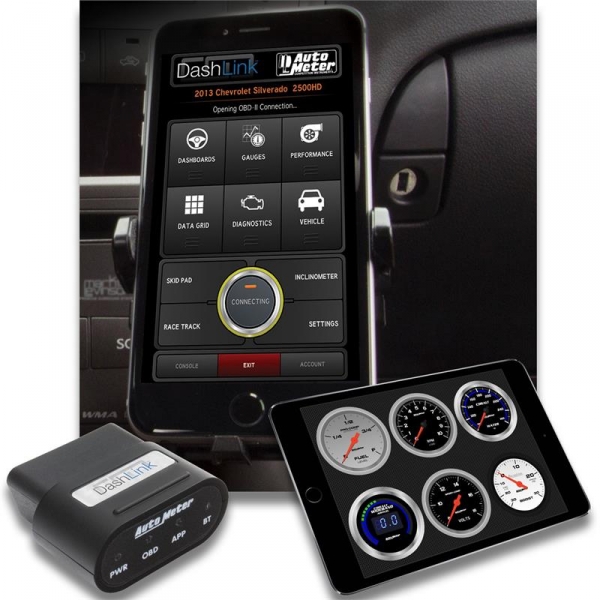

Auto Meter 6035 DashLink OBDII Wireless Data Module

Fits 1996+ OBDII Vehicles (Requires Apple iOS & Android Device)
Part #: AM6035
$ $149.95
In-Stock
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

Easily add gauges and monitor your performance with the Auto Meter 6035 DashLink OBDII Wireless Data Module. The DashLink is a plug-n-play, virtual dashboard display system for your vehicle that's easy to install, and fun to use. It enables you to capitalize on AutoMeters years of instrumentation and data acquisition expertise so you are in control and in-the-know about what is going on with your vehicle.

The DashLink turns your iOS or Android enabled device into an advanced display and monitoring system. From monitoring vehicle and engine performance, to tracking fuel economy levels, reading and clearing vehicle trouble codes, to managing check engine lights, the AutoMeter DashLink puts you in control.

Data log what your vehicle is doing, determine: 0-60, 1/4 mile, horsepower, and braking performance. Map where you vehicle has been, how it performed, and how many G's you experienced with real time track mapping. Monitor your fuel economy/MPG, see how long your vehicle has idled, how many aggressive accelerations or braking events have occurred, and how your vehicle was driven. Instantly read, diagnose and clear engine codes and clear troublesome Check Engine lights, all with the easy to use plug-n-play functionality of the DashLink system. The DashLink system comes with the OBDII module ready to work out of the box along with a quick start guide for operation.

Take advantage of the power of your vehicle's on-board diagnostic system! Get the benefits of a comprehensive gauge set without the complication or expensive of a typical installation! See the examples below for parameters you can view on your vehicle.


Performance Gauges:
  • Engine Speed
  • Corrected Vehicle Speed
  • Open/Closed Loop
  • Boost/Vacuum Combo Gauge
  • Acceleration (and braking)
  • Torque
Fuel Economy Gauges:
  • Instant Fuel Economy
  • Average Fuel Economy
  • Average Fuel Economy Over 3 Time Periods
  • Distance To Empty
  • Time To Empty
  • Fuel Level %
  • Fuel Remaining In Tank
  • Fuel Flow Rate Gauge
Engine Gauges:
  • Timing (spark advance)
  • Engine coolant temp.
  • Intake air temp.
  • Ambient air temp.
  • Manifold absolute pressure
  • Mass airflow
  • Fuel trims, short and long term
  • Percent engine load
  • Catalyst temp.
  • Fuel pressure
  • Lambda gauge
  • Air/fuel ratio (AFR)
Trip Computer (Maintains Stats For Up To 5 Trips):
  • Distance traveled
  • Fuel consumed
  • Average fuel economy
  • Fuel cost
  • Elapsed time
  • Drive time
  • Average carbon dioxide emission rate
  • Total carbon dioxide emission
  • Start date & time
  • Number of fill-ups
  • Average fuel flow rate
  • Average driving speed
  • Average trip speed
  • Average boost/vacuum
  • Average engine speed
  • Max acceleration
  • Max engine power and torque at wheels
  • Number of stops
  • Max fuel flow rate
  • Max speed
  • Idle time
  • Max boost/vacuum
  • Max engine speed
  • Max braking acceleration
  • Max engine torque
  • % distance traveled while not in gear
  • % distance traveled in each gear
  • % distance traveled in non-optimal gear
  • % time spent while not in gear
  • % time spent in each gear
  • % time spent while in a non-optimal gear
Emissions Testing:
  • Read & Clear Diagnostic Trouble Codes
  • IM Readiness Status
Features:
  • Plug-N-Play Design
  • Displays Data Wirelessly On iOS & Android Device (Not Included)
  • Data Logging, Record & Playback Log Files Showing OBD-II Data
Application Notes:
Vehicle parameters read will vary by year, make and model.
Parameters listed above may not be applicable on every vehicle.
Apple iOS or Android device required for use is not included.

Specifications

  • MFG. Number 6035
  • Manufacturer Name Auto Meter
  • Shipping Weight 1.00 lb.
  • Shipping Length 2 in.
  • Shipping Width 6 in.
  • Shipping Height 6 in.
  • Fuel Type Diesel / Gas
  • UPC 046074060359
  • Warranty Yes
  • Warranty Info 1 Year Limited
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
