Baja Designs 447659 LP6 Pro Bumper LED Light Kit (Toggle Wiring)

This Baja Designs lighting and wiring setup has been tested on the Jeep Wrangler JL / Gladiator JT with the plastic bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units. The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200 Degree spread of usable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber daytime running light, low power, and high-power mode, the LP6 will fulfill all your lighting needs.

Features:

• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):
Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
Forward Projecting Wattage/Amps: 90W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.14W / 0.3A
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel

Dimensions:
6.5-inch Height
6.5-inch Width
3.2-inch Depth
Weight: 4.2lbs

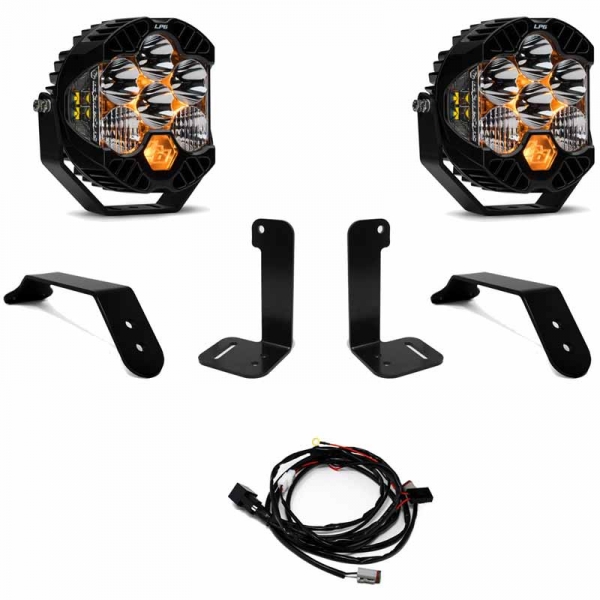

Kit Includes:
QTY (2) LP6 LED Lights
QTY (1) Wiring Harness
Vehicle Specific Brackets
Zip Ties

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42-Degree) and the spot (6-Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Application:
Jeep JL W/ Plastic Bumper
Jeep JT W/ Plastic Bumper
