Baja Designs 447700 Squadron SAE/Pro Amber Fog Light Kit (Toggle Wiring)

This kit is perfect if you are looking to spice up your Ford F-150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Amber SAE and a set of Squadron Pros in driving combo lens pattern. This kit also includes powder-coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness.

Features:

• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per SAE):
Lumens: 2,480 Utilizing 4 LEDs
Wattage/Amps: 22W / 1.6A
Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch
Weight:12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Specifications (Squadron Pro):
Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 Inch x 2.77 Inch x 3.07 Inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

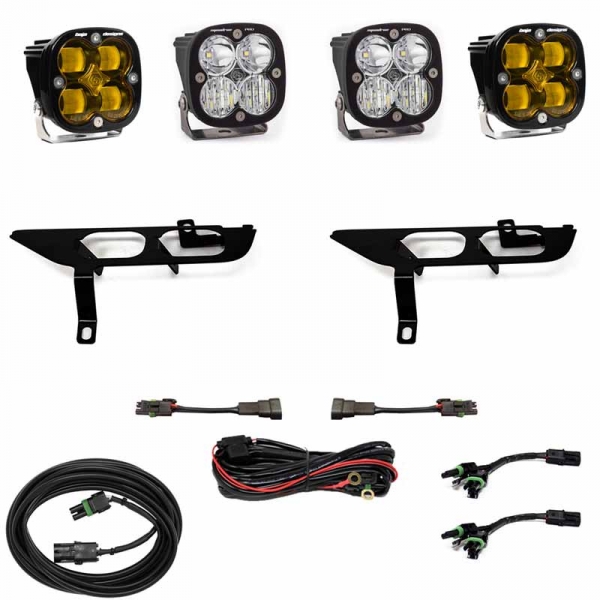

Kit Includes:
Squadron Pro, Driving/Combo Pair
Squadron SAE, Amber Wide Cornering Pair
x2 Fog Pocket Brackets
x2 Wire Adapters
x1 Toggle Switch Harness
x2 55-Inch Splitters
x2 Small Splitters

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-Degree) and spot (8-Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
