Baja Designs 447769 OnX6+ 30" Grille LED Light Bar Kit

Set your Silverado apart from the rest with Baja Designs LED Grille Kit. Our OnX6 30-inch Arc Bar Grille Kit has been specifically designed for Heavy-Duty models giving you a clean OEM look and massive increase in lighting performance.

Features:

• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:
Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A
Dimensions: 30 inch x 4.29 inch x 2.69 inch
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

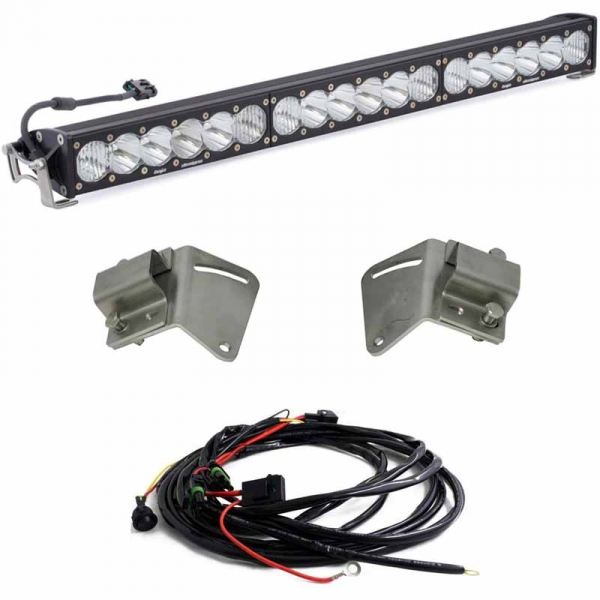

Kit Includes:
x1 OnX6+, 30-inch Driving/Combo LED Light Bar
Toggle Switch Wiring Harness
Vehicle Specific Mounts
Hardware

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9-degree beam focused for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
