Baja Designs 447792 S8 30" Upper Grille LED Light Bar Kit

Set your Ford Super Duty apart from the rest with Baja Designs LED S8 Grille Kit. Our Ford Super Duty S8 Grille Kit has been specifically designed for 2011-2016 Ford Super Duty models giving you that clean OEM look allowing for easy installation of one 30-inch S8 LED Light Bar. This mount kit also comes equipped with a Ford specific upfitter wiring harness which allows you to use factory switches.

Features:

• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 Percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:
Lumens: 19,050 Utilizing 24 Cree LEDs
Wattage/Amps: 180W / 12A
Dimensions: 30-inch x 3-inch x 1.6-inch
Weight: 6.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

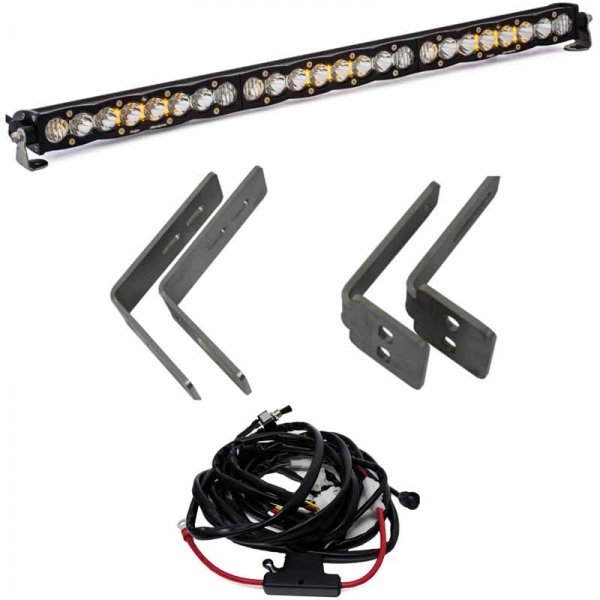

Kit Includes:
x2 2011-2016 Ford Super Duty Mounting Brackets
x1 S8 30-inch LED Light Bar
Ford Upfitter Wiring Harness
Hardware

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9-degree beam focused for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
