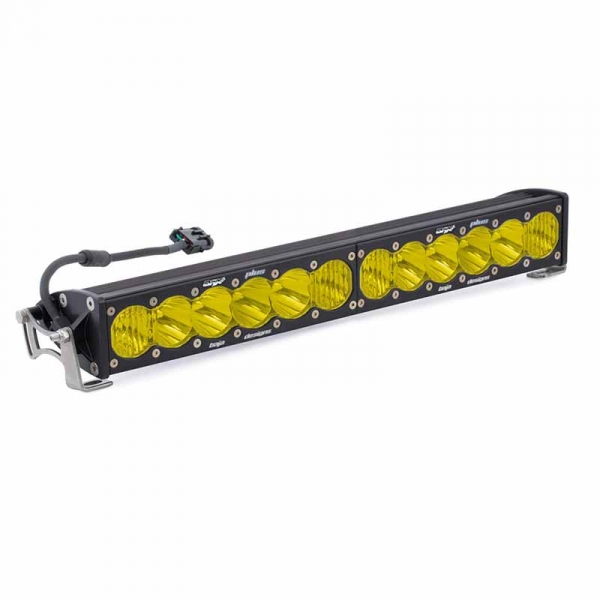

Baja Designs 452013 OnX6+ 20" Amber Driving/Combo LED Light Bar

PART# 452013 | SKU BAJ452013

Vehicle Fitment For:
Universal - 20" LED Light Bar

$793.95

Ships directly from the manufacturer
An Email Will Be Sent With Expected Shipping Date After Purchase
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?

Description

At an impressive 24,920 lumens, the brightest just got up to 69 percent brighter than Baja Designs' previous generation. The OnX6+ LED light bar also integrates Baja Designs' trademarked High-Speed Spot reflector, the same one used by their Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry-first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in-purchase protection. This bar is equipped with BMT Battery Management Technology Elimination Of Flickering at Low Voltage Added Protection to Vehicle Wiring and Systems Protection from Dangerous Current Spikes. The OnX6+ LED Light Bar is Brighter bolder Better.

Includes OnX6+ 20" LED Light Bar Mounting Brackets Hi-Low Dongle Please note that this light does not include a harness and the applicable harness to this light is 640115. Patterns: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degrees) and spot (6 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance. Wide Driving: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for ultimate comfort lighting. High-Speed Spot: A longer and narrower 6-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. Racer Edition Spot: A 4-degree beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for Baja Designs Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

Features:
  • uService - Replaceable Lenses And Optics
  • CopperDrive - Only LED Driven At 100 percent
  • ClearView - All The Light, Right Where You Need It
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • 5000K Daylight - Less Driver Fatigue, Natural Color



Specifications:
Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
Dimensions: 20 inch x 4.29 inch x 2.69 inch
Weight: 7.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Manufacturer Warranty*:
Limited Lifetime

Reviews For Baja Designs 452013

No Reviews Yet!
Write a Review

Review this product and help other XDP customers make informed decisions!

Overall Rating
Your Information

Frequently Asked Questions

No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.

More to Consider

Specifications For Baja Designs 452013

MPN 452013
SKU BAJ452013
GTIN 853774007986
ID 135603
Manufacturer Name Baja Designs
Shipping Weight 9.00 lb.
Shipping Length 25 in.
Shipping Width 8 in.
Shipping Height 5 in.
Fuel Type Diesel / Gas
Color Amber
E-Code 1
Finish Black
Size 20"
Shape Straight
Manufacturer Warranty* Limited Lifetime
