BD Diesel 4R100 TowMaster Transmission
★★★★★
Vehicle Fitment For:
1999-2003 Ford F-250/350 7.3L Powerstroke | 2000-2003 Ford Excursion 7.3L Powerstroke (4R100)
See full application list below
NOTES: No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet. BD torque converter must be installed at
FROM 4194.95
Truck Freight Item(Shipping calculated at checkout)
Description

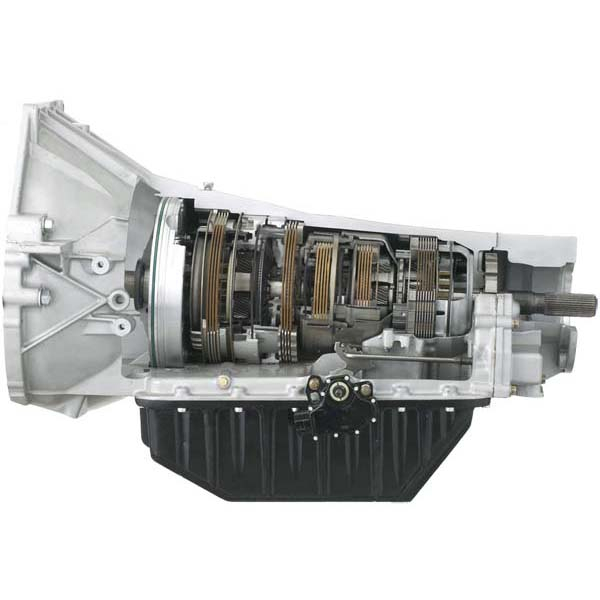

The BD-Power 4R100 TowMaster Transmission can handle up to 500HP in your Ford 7.3L Powerstroke. The factory 4R100 transmission is designed to handle the power output of the stock engine, but not much more. A BD-Diesel transmission will increase the durability of your drivetrain. Every transmission comes with BD's heavy duty transmission pan and a BD-Power auxiliary transmission filter kit for added protection!
Features:
- Quicker, Firmer Shifts
- Reworked Front Pump
- Upgraded OD Snap Ring
- Fully Rollerized Geartrain
- Machined Center Support
- Re-Calibrated Accumulator Body
- Increased Pressure To Converter
- Added Lube Circuits To OD Planet
- Each Transmission Is Dyno Tested
- Increase The Durability Of Your Drivetrain
- OEM Equipped Transmission Mounted PTO
- Full Shift Kit With Line Mod Valve To Increase Pressures
- Added Lube And Support To Output And Intermediate Shafts
- BD Aluminum HD Deep Pan, Increases Oil Capacity By 6 Quart
- 1999-2003 Include Auxiliary Frame Mounted Full Flow Filter Kit
- Drilled & Tapped Direct & Intermediate Feeds To Prevent Leaks At Case
Specifications:
Clutch Count: Coast Clutch 2
Clutch Count: Forward 5 (25% Increase Over Stock)
Clutch Count: Direct 5
Clutch Count: Low Reverse 7 (17% Increase Over Stock)
Clutch Count: Intermediate 4 (33% Increase Over Stock)
Clutch Count: Overdrive 4 (33% Increase Over Stock)
Manufacturer Warranty*:
3 Year / 150,000 Mile
3 Year / 150,000 Mile
Note:
No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
Product Options
| PART NUMBER | MODEL YEAR |
|---|---|
| 1064442FPTO | 1999-2003 4R100 2wd w/PTO Provision |
| 1064444F | 1999-2003 4R100 4wd |
