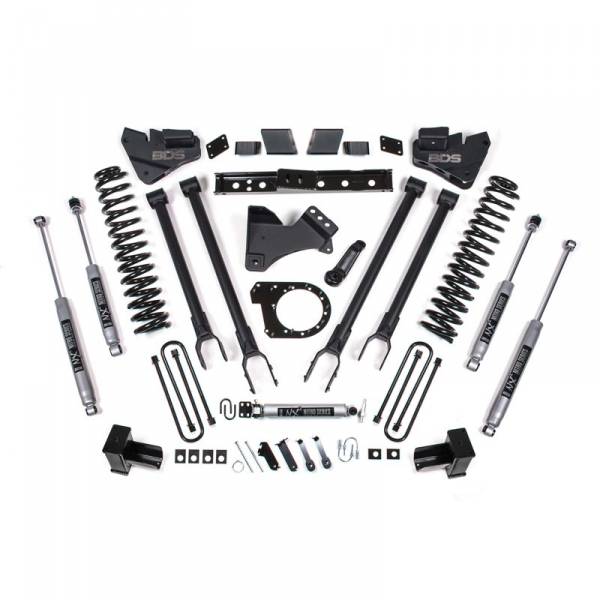

BDS Suspension 6" 4-Link Lift Kit
Vehicle Fitment For:
2020-2022 Ford F-250/350 6.7L Powerstroke 4WD
See full application list below
FROM 2438.5
Truck Freight Item(Shipping calculated at checkout)
Description
Take your 2020-2022 Ford F-250/350 6.7L Powerstroke 4WD to the next level with the BDS Suspension 6″ 4-Link Lift Kit from XDP. This system upgrades the factory stamped steel radius arms with a high-strength 4-link. This setup offers improved handling, stability, and caster control during wheel travel. The 4-link bracketry is constructed from thick 1/4″ steel and is designed to key off the factory frame bracket and transmission cross member for extra strength. Also provided in this kit are full-length ProRide diesel-only specific coil springs. To customize the kit, choose between the BDS NX2 Nitro Series shocks or upgrade to the FOX 2.0 IFP performance shocks.
This comprehensive kit includes an extensive list of high-quality components. Starting with a forged drop pitman arm and heavy-duty track bar relocation bracket. This helps to correct steering angles and re-center the front axle. Also supplied for the front are bump stop extensions, sway bar drop brackets, and brake line relocation brackets. A precision-built transfer case indexing ring is also supplied to improve the front driveline operating angle. Additionally, a high clearance transmission crossmember is provided.
The kit comes standard with 6.25" rear blocks in the rear. Finally, high-strength black e-coated u-bolts and all necessary mounting hardware are included to make this a complete bolt-on installation. This system is covered by the industry leading BDS "No Fine Print Warranty". Take your Super Duty to the next level with BDS Suspension.
This comprehensive kit includes an extensive list of high-quality components. Starting with a forged drop pitman arm and heavy-duty track bar relocation bracket. This helps to correct steering angles and re-center the front axle. Also supplied for the front are bump stop extensions, sway bar drop brackets, and brake line relocation brackets. A precision-built transfer case indexing ring is also supplied to improve the front driveline operating angle. Additionally, a high clearance transmission crossmember is provided.
The kit comes standard with 6.25" rear blocks in the rear. Finally, high-strength black e-coated u-bolts and all necessary mounting hardware are included to make this a complete bolt-on installation. This system is covered by the industry leading BDS "No Fine Print Warranty". Take your Super Duty to the next level with BDS Suspension.
Features:
- 6" Lift Kit
- 6.25" Rear Lift Blocks
- Bump Stop Extensions
- Black E-Coated U-Bolts
- Sway Bar Drop Brackets
- Forged Drop Pitman Arm
- High-Strength 4-Link Setup
- Brake Line Relocation Brackets
- Heavy-Duty Track Bar Relocation Kit
- Precision-Built Transfer Case Indexing Ring
- All Necessary Mounting Hardware Included
- Covered By BDS's "No Fine Print" Warranty
- High Clearance Transmission Cross Member
- Full-Length 4" ProRide Diesel Specific Coil Spring
- Choice of BDS NX2 Nitro Series or FOX 2.0 IFP Performance Shocks
Suggested Wheel & Tire Combinations
38x13.50 w/20x9 and 4.5" - 5" back spacing38x13.50 w/17x10 and 5" back spacing
38x13.50 w/20x10 and 5" back spacing
*trimming may be required
KIT FITMENT NOTES
Important Kit Notes
1. Fits Diesel models only.
2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

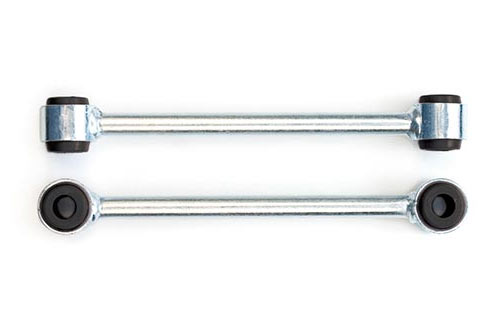

4. If your truck is equipped with a factory rear sway bar add: BDS123808

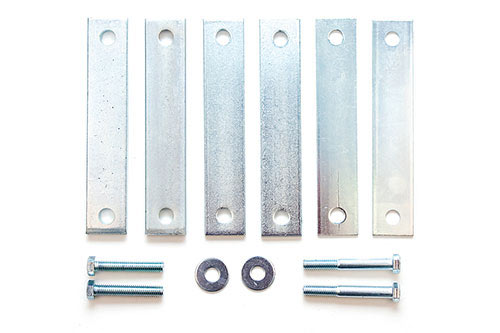

5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
8. The indexing ring is only compatible with 10 speed transmission trucks. Please verify your truck's equipment before installing. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
9. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
10. Installation requires a torque wrench capable of 405 ft-lbs.
11. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
12. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)
13. Fits Single Rear Wheel (SRW) models only.
IN THE BOX
BDS1571H
NX2 Series Shocks
NX2 Series Shocks
KIT CONTENTS:
(1) BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2
(1) BDS013604 - 2017-2022 Ford F-250 / F-350 6In 4-Link Box Kit 2of2
(1) BDS013606 - 2020-2022 F250/F350 6.25in Rear Box Suspension System
(1) BDS033611 - 2005-2022 Ford F250/F350 6in (Diesel) Coil Kit
(1) BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL
(1) BDS85431 - 2017-2022 F250/F350 Single Stabilizer - BDS Only
(2) BDS85718 - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1
(2) BDS85750 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
(1) BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2
(1) BDS013604 - 2017-2022 Ford F-250 / F-350 6In 4-Link Box Kit 2of2
(1) BDS013606 - 2020-2022 F250/F350 6.25in Rear Box Suspension System
(1) BDS033611 - 2005-2022 Ford F250/F350 6in (Diesel) Coil Kit
(1) BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL
(1) BDS85431 - 2017-2022 F250/F350 Single Stabilizer - BDS Only
(2) BDS85718 - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1
(2) BDS85750 - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2
BDS1571FS
FOX 2.0 Series Shocks
FOX 2.0 Series Shocks
KIT CONTENTS:
(1) BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2
(1) BDS013604 - 2017-2022 Ford F-250 / F-350 6In 4-Link Box Kit 2of2
(1) BDS013606 - 2020-2022 F250/F350 6.25in Rear Box Suspension System
(1) BDS033611 - 2005-2022 Ford F250/F350 6in (Diesel) Coil Kit
(1) BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL
(1) BDS85431 - 2017-2022 F250/F350 Single Stabilizer - BDS Only
(2) FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
(2) FOX98224750 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
(1) BDS013601 - 2017-2022 Super Duty 4-Link Box Kit 1of2
(1) BDS013604 - 2017-2022 Ford F-250 / F-350 6In 4-Link Box Kit 2of2
(1) BDS013606 - 2020-2022 F250/F350 6.25in Rear Box Suspension System
(1) BDS033611 - 2005-2022 Ford F250/F350 6in (Diesel) Coil Kit
(1) BDS123605 - 2017-2022 SD T-Case Indexing Kit- DSL
(1) BDS85431 - 2017-2022 F250/F350 Single Stabilizer - BDS Only
(2) FOX98224718 - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
(2) FOX98224750 - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
ADD-ONS
Instructions & Tech Info
Installation Info
Reviews
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications
ID
124610
Manufacturer Name
BDS Suspension
Shipping Weight
326.00 lb.
Shipping Length
48 in.
Shipping Width
40 in.
Shipping Height
2 in.
Fuel Type
Diesel
